8tons FVR Isuzu fire truck with smoke evacuation system

ISUZU Fire Truck vehicle-mounted Emergency rescue Smoke Ventilator,Japanese Rescue Fire Truck vehicle-mounted Indoor Emergency rescue Smoke Ventilator,FVR Isuzu fire truck with smoke evacuation system

Facebook Twitter Pinterest LinkedIn 分享

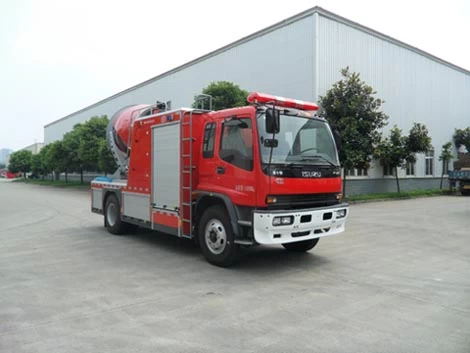

FVR Isuzu fire truck with smoke evacuation system

FVR Isuzu fire truck with smoke evacuation system





ISUZU： FVR34J2（8T ISUZU），Double Cab，191kW，wheelbase：two shaft:4500mm
Light Mast System： Ground height≥8m，Working Cycle time＜500s，level rotation time＜180s，Level rotation angle；-175°to +175°，Elevation angle≥+30°，Depression angle≤-90°，Elevation and Depression time≤120s.
Lighting lamp： main Lighting lamp12×1500W， remove Lighting lamp:4×400w
Large positive pressure Smoke Ventilation system：  FIRE ZT19，Fan height:3m，Fan speed:1800r/min，air volume:40000m3/h，lifting height:390mm+240mm，Water displacement:228L/min，water fire truck or hand pump for water supply，Line interface:Φ65mm hose coupling，Fan reliability continuous operation time：4h，rotation angle：-90°～+90°，Elevation and Depression angle：-11°～+11
Positive and negative pressure electric mobile smoke ventilator： EFC120，power:1.2p，QTY:4pcs，One-way 220V AC motor，weight:21kg，Smoke Ventilation rate:10838m3/hr，smoke inlet pipe:4.6m，Fan blade:400×17mm，Volume:480×460×305mm
Mobile type rapid conversion of the positive and negative
piezoelectric driving smoke machine：		 UB20，QTY:4PCS，motor type，displacement:1666m3/hr，weight:7.3kg，Wind pipe:8 Inch、length:5m，Dimension:36×31×33cm,Material of high strength plastic shell.
Vehicle generator： power:75kW，380/220V，Electric control box is provided with the dustproof, waterproof,short circuit and earth leakage protection device.
Overall Dimension： 8170×2500×3520mm
