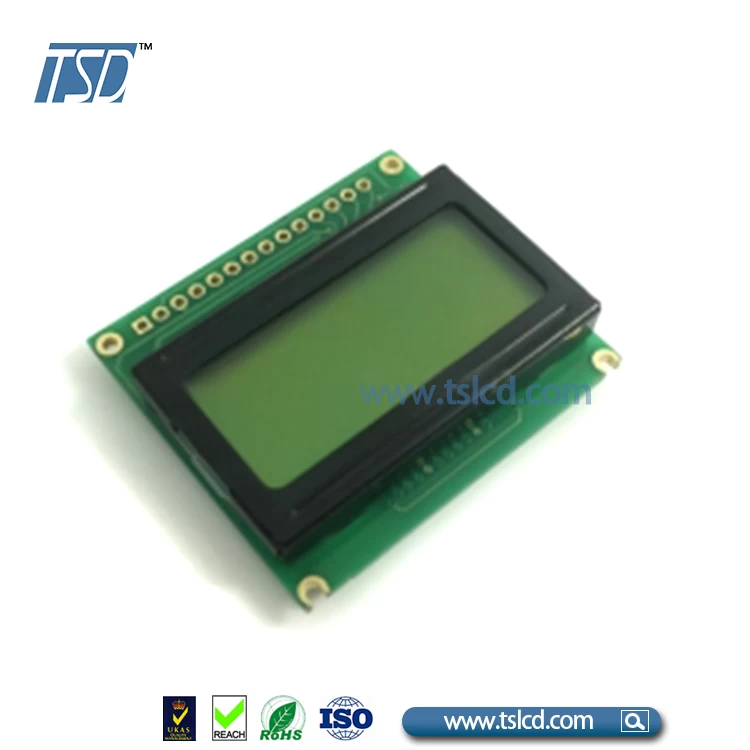

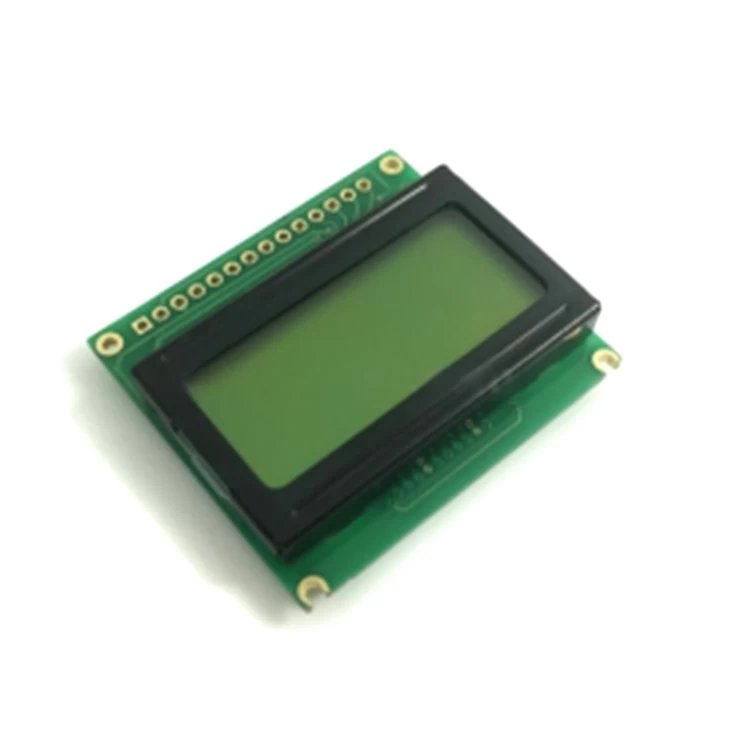

8x2 character lcd module

8x2 character lcd moduie

STN-YG, STN-Blue, FSTN positive

Price competitive

COB module

Facebook Twitter Pinterest LinkedIn 分享
Item Spec.
Display Character 8 character x 2 lines
Display type STN/FSTN/DFSTN,Positive/Negative,Transflective/ transmissive
Description 8x2 character lcd module
Driving method 1/16 DUTY, 1/5 BIAS
Outline 53.4x32.5x13.5
View Area 38.0x16.0
Active Area 27.45x11.5
Character size 2.96x5.56
Character pitch 3.55x5.94
Dot size 0.56x0.66
Dot pitch 0.6x0.7
Viewing direction 6H
Operating temperature 0°C-50°C/ -20-70℃
Storage temperature -10°C-60°C/ -30-80℃
Backlight color White LED
