It is aluminium&waterproof structure.Its look design is very good such as fashion,generous and easy installation.It is with 8pcs 50W LED modules as the light source. the unique LED patent technology is used in this products so that it can simulate the effect of tungsten lightAnd beam angle 45°. Each line of LEDs can be controlled individually in 8 segments.Due to reasonable LED layout ,it creates homogenous output light,purer mixing colour and super powerful strobe effect.It is suitable for projection lighting,stage,theatre etc. At the same time ,it is with powerful two-way RDM function besides DMX control.
● Optics
. LED qty：8x50W RGBW LED module ,uniform and delicate color mixing effect
. Lens： high brightness reflector
. Beam angle：45°
. Lifetime：50000H，low power consumption, energy conservation
and environmental protection
● Colors
. Uniform mixing color system
. LED controlled individually can create more colorful chasing effect

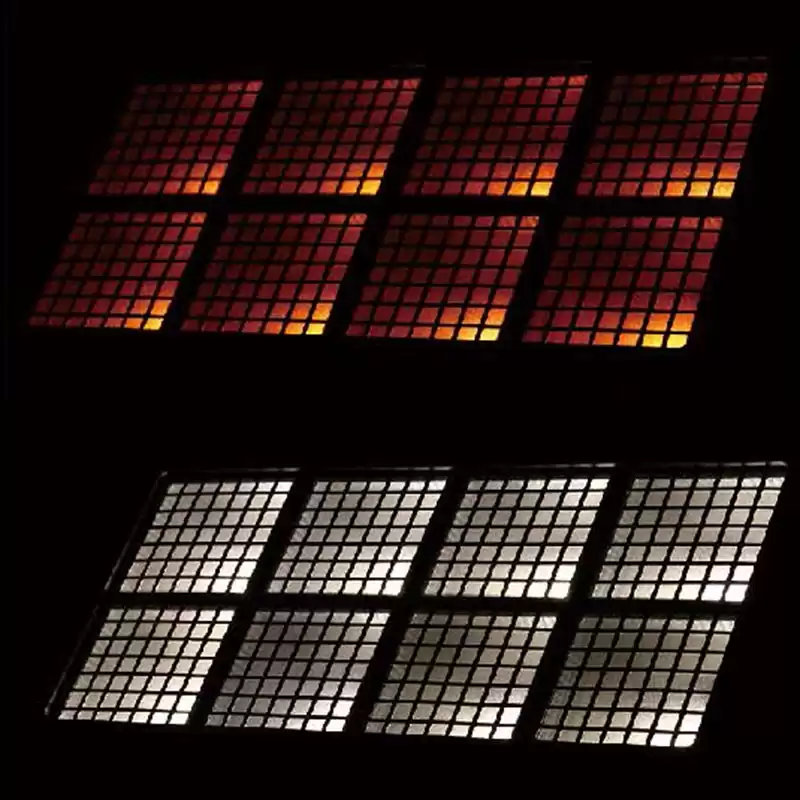

. Tungsten light effect can be simulated
. Color temperature:2700K±200(1200K tungsten light)
● Specification
. 5 DMX channel modes：1CH/2CH/7CH/11CH/15CH international standard DMX-512 channel
. 3 control modes::DMX512、W-DMX、Master-Salve
. 2.4G wireless DMX
. Beam angle：45°
. DMX function： Dimmer、Strobe、tungsten light effect、Auto-program selection、Auto speed、dimmer curve selection、function setting
. Stand-alone mode： Auto-program、slave、tungsten light effect、static color setting、Auto-program selection
. Strobe effect：0-20HZ strobe、Pulse strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。
. Dimmer:0-100%16 bit dimming which can control brightness change and closing of 4colors at the same time
. Each LED can be controlled individually
. Dimming way：LED mode and tungsten filament lamp mode
● Display
. 2.4inches TFT colorful screen
. High anti-interference four touch buttons
. Settable button lock to prevent imoperation
. Display screen can be reversed 180° and fit for different places installation
● Software
. Software upgrade：quick software upgrade via DMX cable
. Display the use time of the light, so that customers can know the use details of the light in time
. LED refresh rate：800Hz/1200Hz/2000Hz/3600Hz/25000Hz optional
. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer
● Other functions
. Setting and addressing：RDM
. LEDs temperature detection system to protect the LEDs
. Fan cooling(the fan change the speed with the temperature changes）
. Fan running mode：Auto mode and high speed mode
● Power/Signal connection
. Power connection：waterproof Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)
. DMX input：Waterproof DMX XLR 3-pin Seetronic J3F2C-W
. DMX output：Waterproof DMX XLR 3-pin Seetronic K3F2C-W
● Power
. AC100-240V 50/60HZ
. Power consumption：450W
● Protection class
. Housing：Die-cast aluminium
. IP class：IP65
● Operation environment
. operation temperature：-20°C～+40°C
● Size/weight
. Packaging size：575x270x450mm
. Net weight： 15.6KG
. Gross weight：17KG
● Certification：
. CE,ROHS
