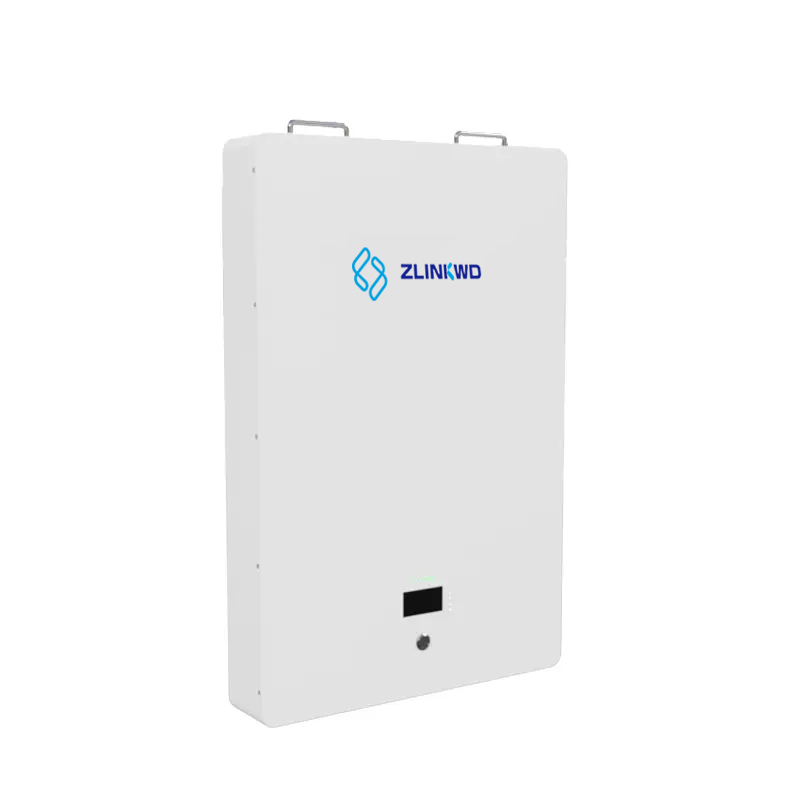

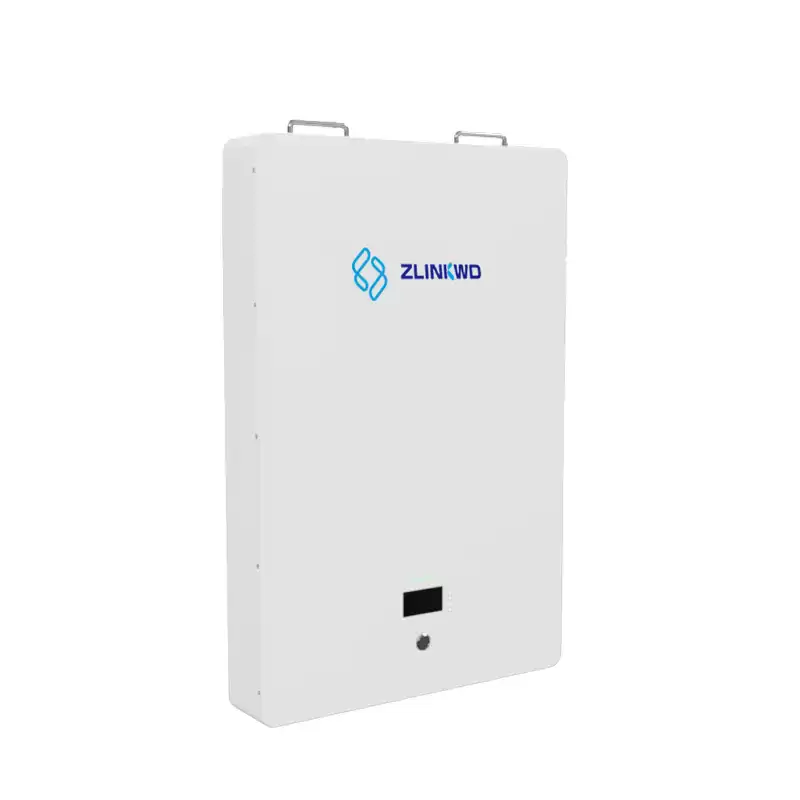

Product Overview
Exclusive appearance design
4-channel battery temperature detection
Intelligent BMS with comprehensive protection functions
Compatible with all first-tier brand inverters
Product Features
|
A-grade battery cell
Choose the domestic first-line lithium battery core andBMS protection board
|
High security
Built-in BMS multiple protection, communication functionto monitor data in real time
|
|
Standard Design
Maintenance-free design to meet the use of communicationcabinets
|
high capacity
Up to 16 units can be connected in parallel to meet theneeds of large-capacity applications
|
|
High Consistency
Ultra-low internal resistance, excellent battery pack consistency
|
Long life span
80% DOD depth of discharge, battery cycle life >4000 times
|

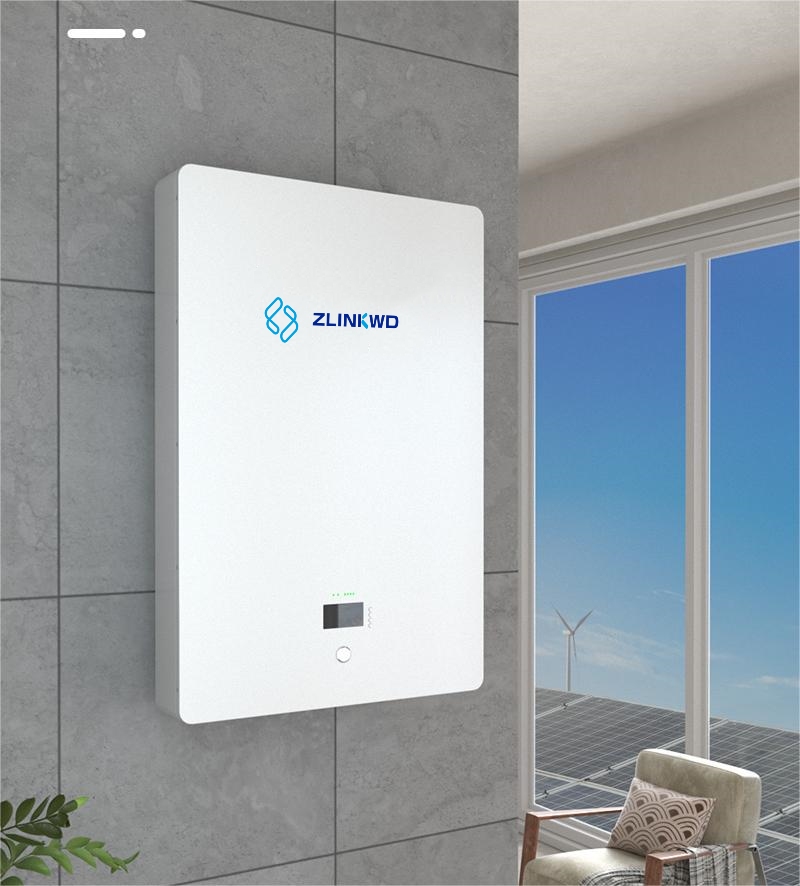

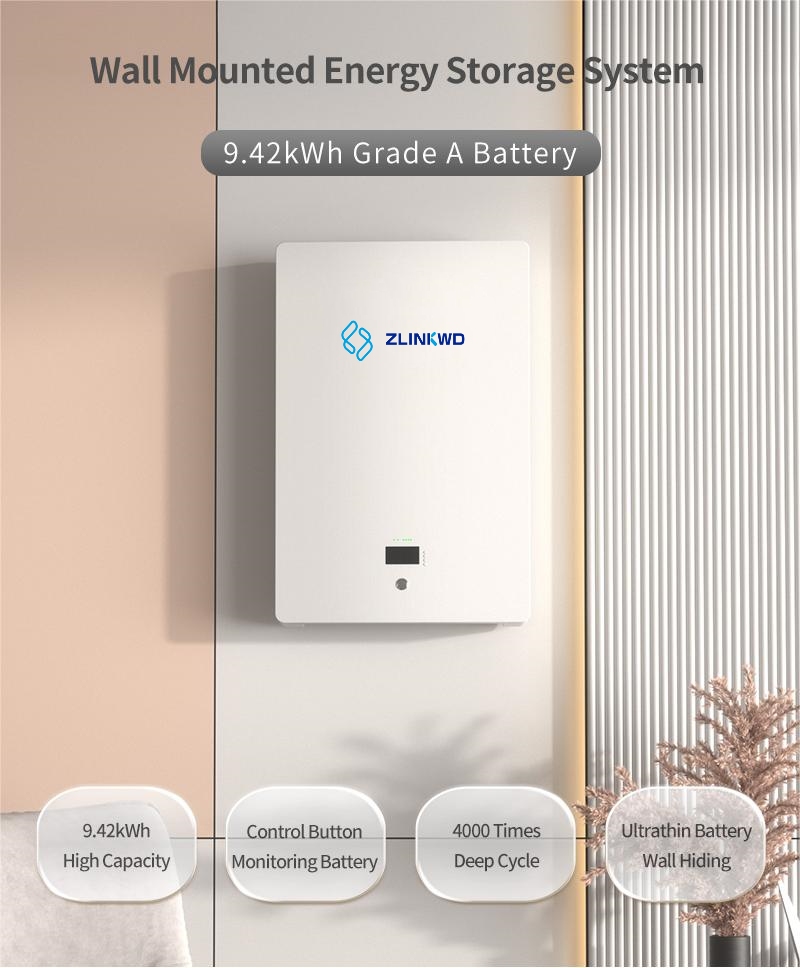

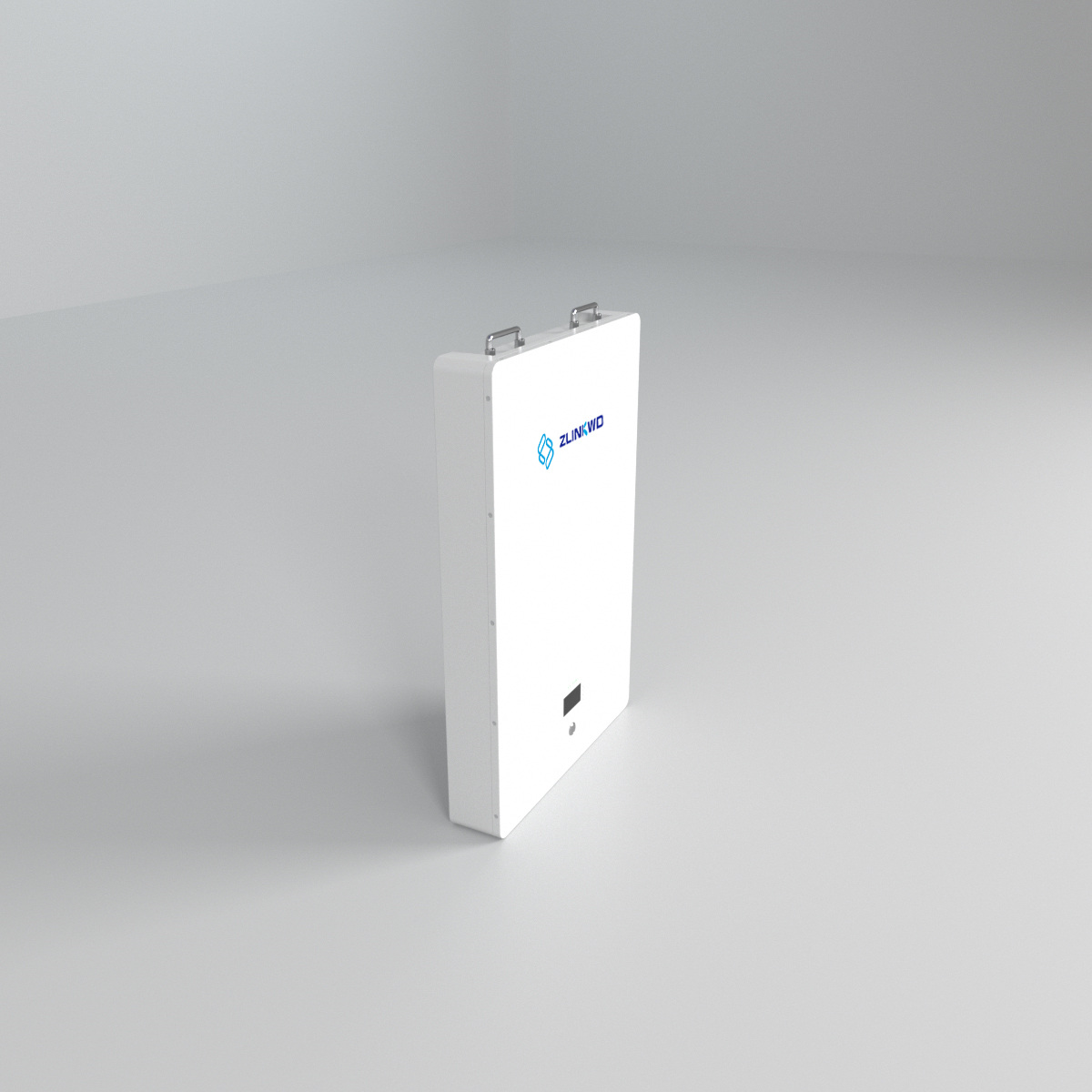

Wall Mounted Energy Storage System 9.42KWh Energy Storage System

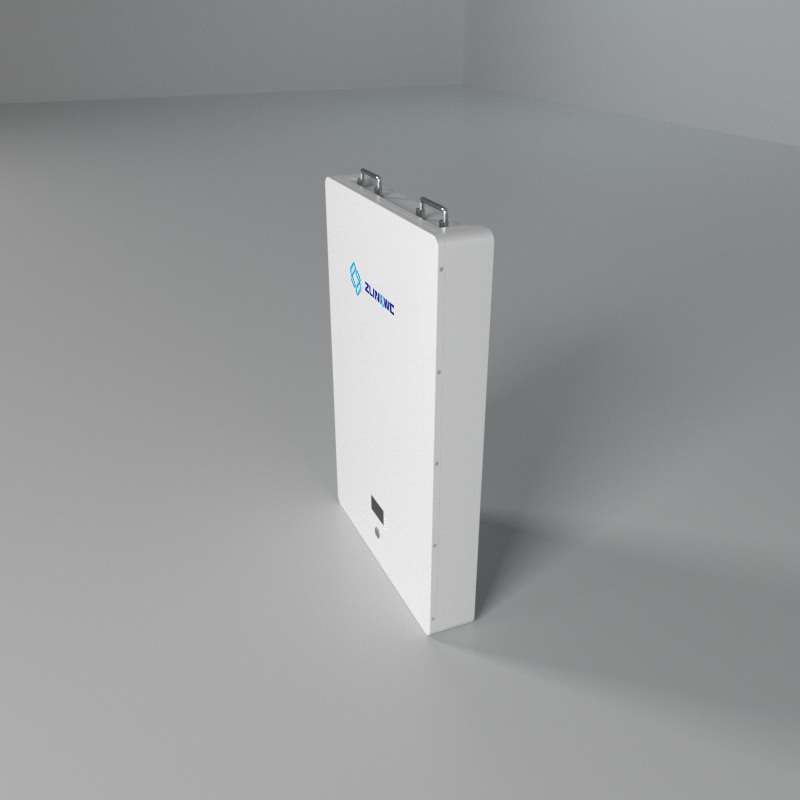

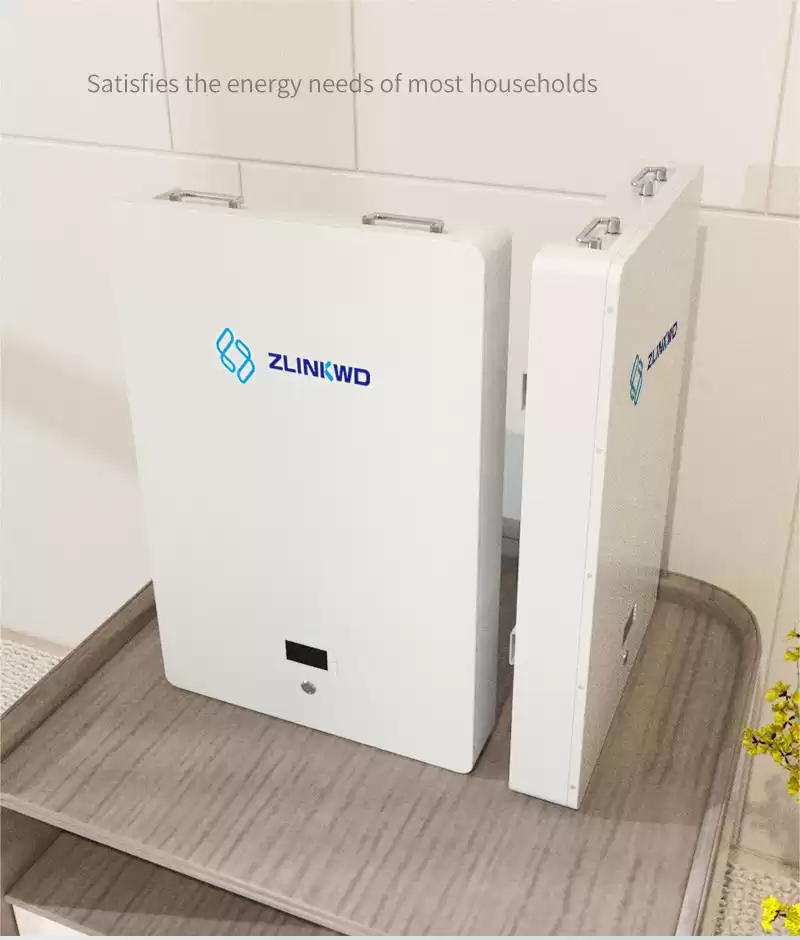

Ultrathin & Simple Appearance
Hidden on the Wall Suitable for Household

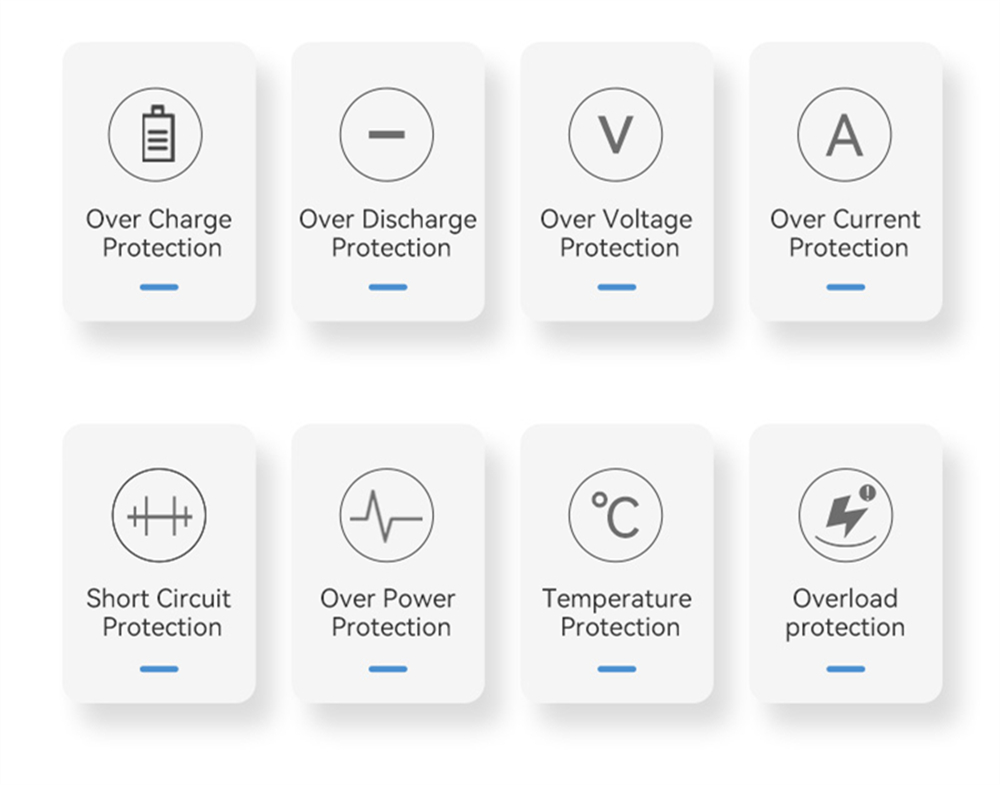

BMS Safety Techniques

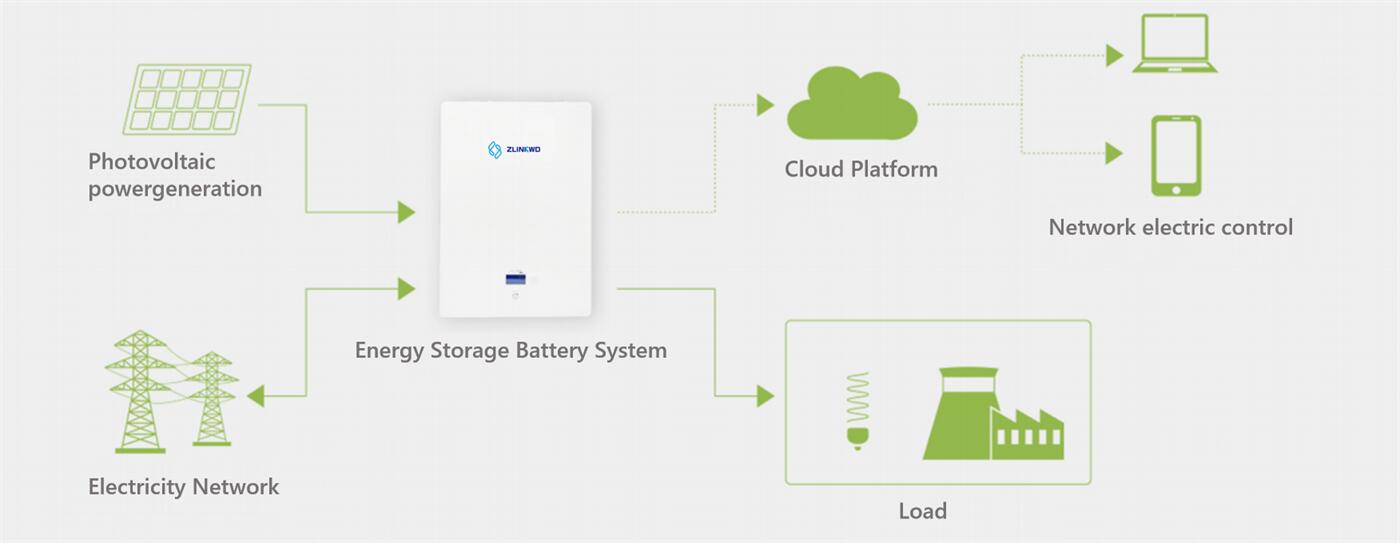

Application Scenarios
1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications
-
-
-
-
Household New Energy Vehicles
Technical Parameter Table
| Model |
9.42KWh ultra-thin wall-mounted models |
| Nominal voltage |
51.2V |
| Nominal capacity |
184Ah |
| Rated energy |
9420.8Wh |
| Built-in battery cell |
Honeycomb ultra-thin lithium iron battery cell |
| Product Size |
842*530*102mm |
| Product weight |
86Kg±1Kg |
| Charging current |
standard charging 37A Maximum charging 92A |
| Charge cut-off voltage |
56.8V |
| Discharge current |
standard continuous discharge 92A Maximum continuous discharge 150A |
| Discharge cut-off voltage |
46.4V |
| Display Screen |
LCD |
| Communication Interface |
RS485, CAN |
| Operating temperature |
charging:0~+55℃ Discharge -20~+55℃ |
| Storage temperature |
-20~+45℃ |
| Storage humidity |
≤90%RH |
| Factory voltage |
51.2-53.6V |
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: Yes,you can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
