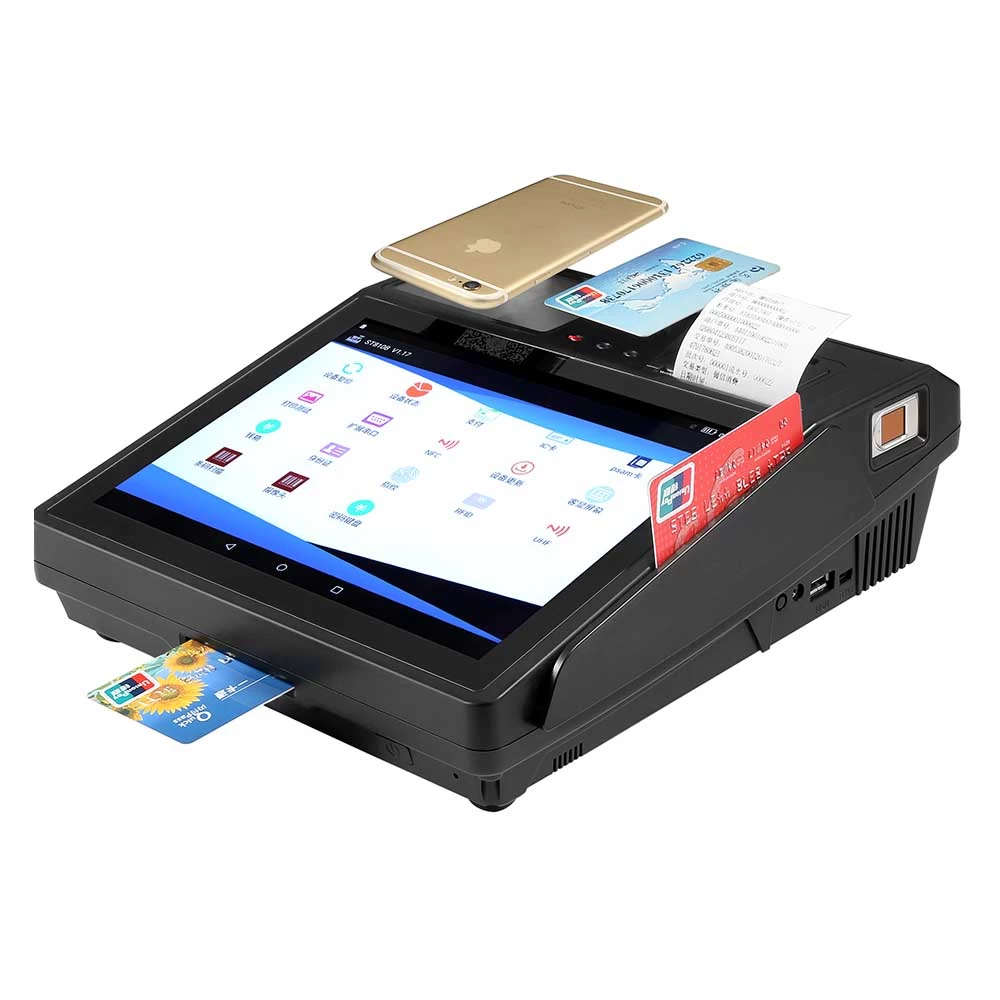

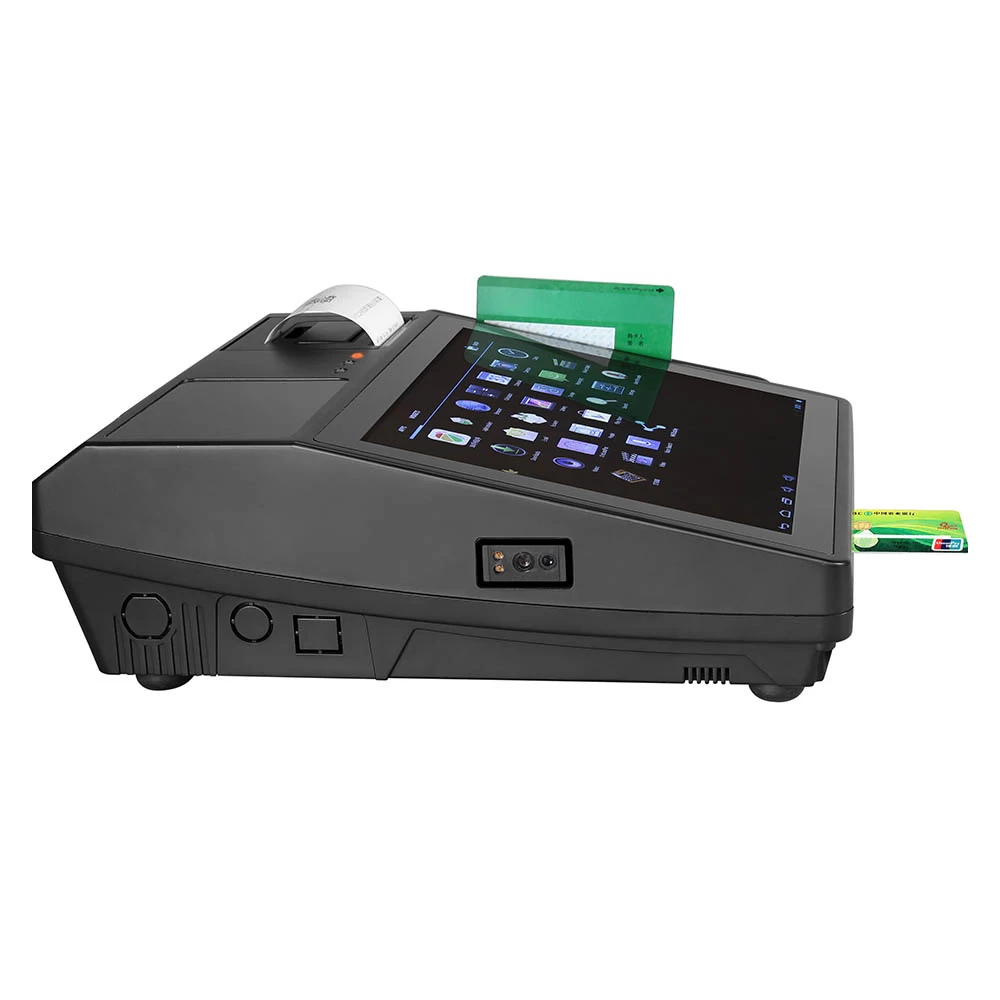

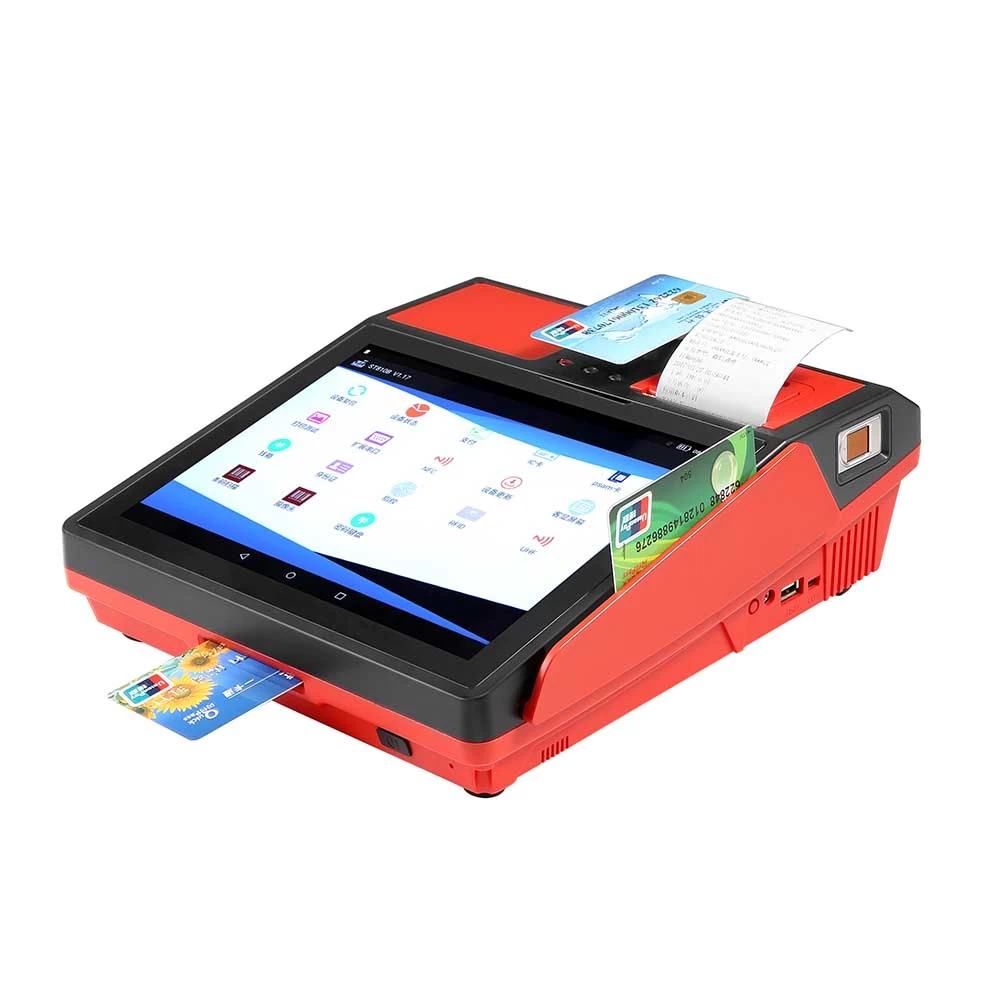

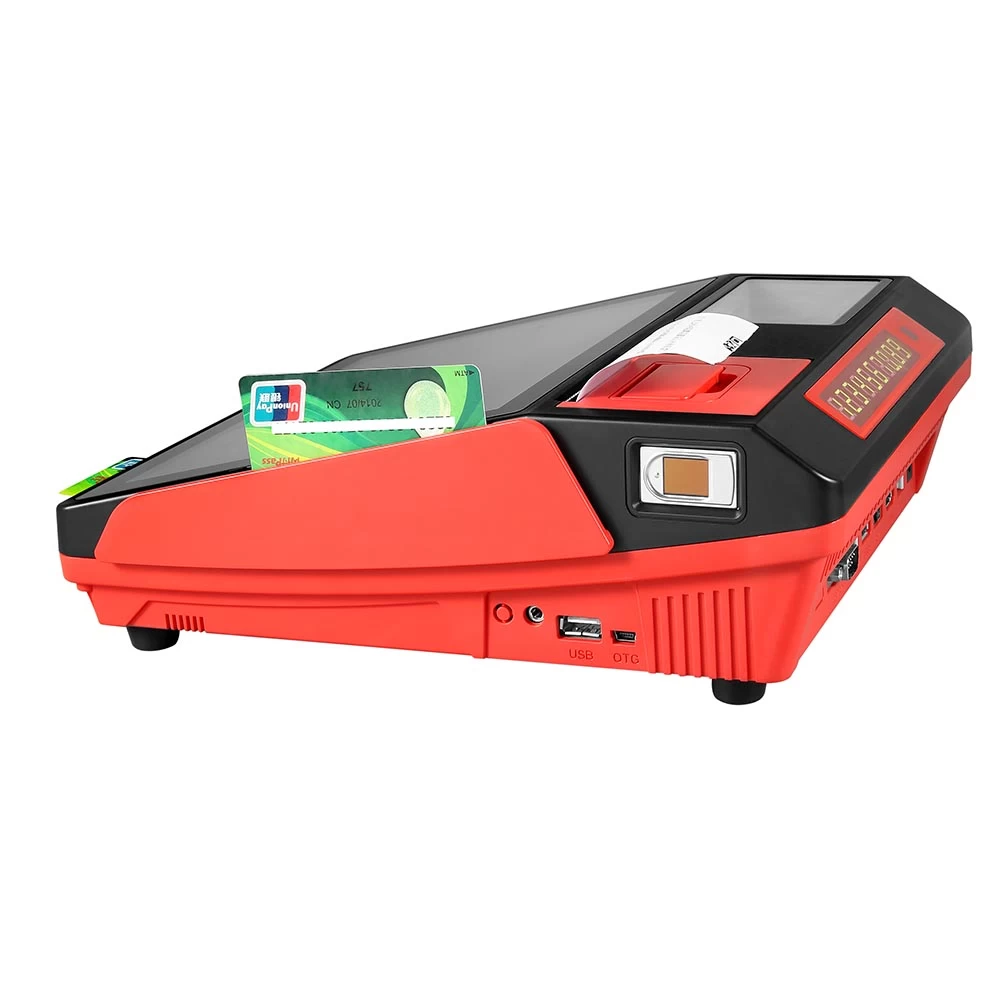

Product Name: 4G 9.7" Android All in One Barcode POS System Restaurant Cash Register model SF810
Main Description:
Android 6.0
Biometric Fingerprint Reader Optional
9.7" Capacitive Touch Screen
Fast 58mm Thermal Printer with 50mm Paper Roll
1D/2D barcode reading through decoding software using camera
5MP Camera with auto focus camera
4G LTE,WCDMA,GSM,Wifi, Bluetooth,GPS
NFC ISO1443 Type A/B, Mifare
Smart chip card and magnetic strip
Rechargeable 7.4V 4400 mAh lithium battery pack
Features:
CPU: 64- Bit ARM Cortex-A53 quad core 1.5GHz
OS: Android 6.0
Internal Memory: 1GB RAM+8GB ROM
Screen display: 9.7-inch 1024 * 768 IPS full-angle, bright screen,maximum support 1080 * 1920 (vertical screen)
Network Frequency:4G FDD-LTE;3G,GSM,GPRS
GPS:Support GPS and A-GPS high-precision positioning
WiFi:Support IEEE80211b/g/n
Bluetooth:Support for Bluetooth 4.0 + EDR, up to 4.0LE
RFID/NFC:Support ISO1443A / B, ISO15693 agreement, point to point communication
Scanner: Support Bar-Code Scan and QR code scan
Magentic reader: Support Read Track 1 2&3
IC card reader: Support ISO7816
FingerPrinter: Living fingerprint module
PSAM card(2): Conform to with "China's financial integrated circuit (IC card) PSAM card specification" ISO7816
Camera: 5.0M autofocus camera, camera, monitor
ID card reader: Support ISO7816,and SLE4432/4442，SLE4418/4428，ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0)，AT24C01A/24C02/24C04/24C08/24C16/AT24C64 ect protocol
Finger printer: Capacitive fingerprint module Optional
Thermal printer: Built in 58mm thermal printer
Battery :Built-in 4400mAh rechargeable lithium battery to support power outages to work
network interface:1* RJ45cable network interface Other routers also support
TF card slot: 1*TF slot, 32GB Max
HDMI: 1*HDMI
USB port: host 2.0, 3*USB, 1*OTG Port ,connect keyboard, mouse, printer etc.
SIM card slot: 1*SIM
Serial port: RJ11connect CUP keyboard, RJ11connect money box (12V), RS232 serial port peripherals
1 *232 serial port (can be an external scanning gun, a variety of sensors, kitchen printer )
1* RJ11 port (can be an external CUP password keyboard)
Merchants all in one Android Cashier model SF810 is mostly used in :
1) card applications University / large enterprises canteens, shops member card , top-up payment, query, consumption
2) e-ticket cinema, karaoke, concerts, stadiums
3) Financial payment
Bank card payment, IC card payment, QR code payment, WeChat payment, NFC payment
4) Supermarkets cashier management retailers, chain stores, cosmetics stores, books and video stores, jewelry toy store
5) Queue number retrieval like Banks, hospitals, electricity payment and convenience service halls etc
Main Functionalities

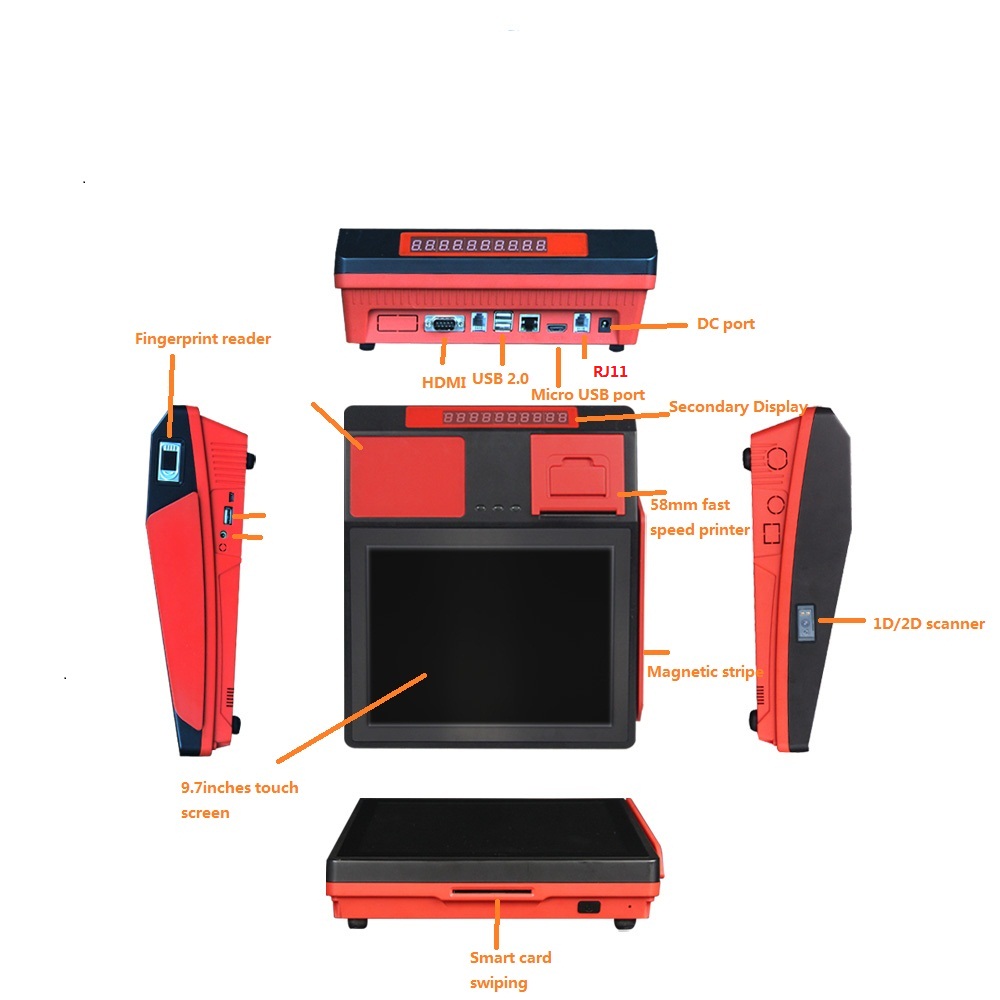

All in one POS model SF810 has Multiple Ports for Different Use Cases
Android Pos Cash Register with QR Code Scanner and Printer model SF810 could support chip card, magnetic card and NFC 13.56Mhz cards
