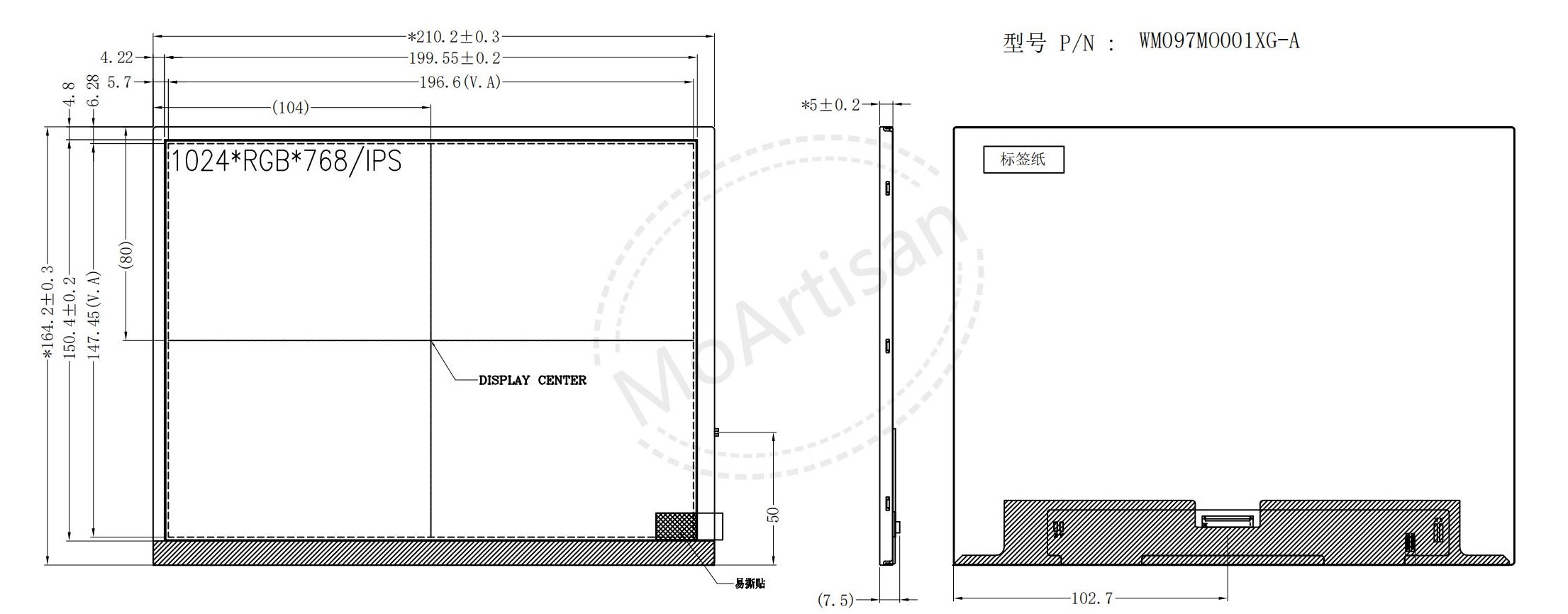

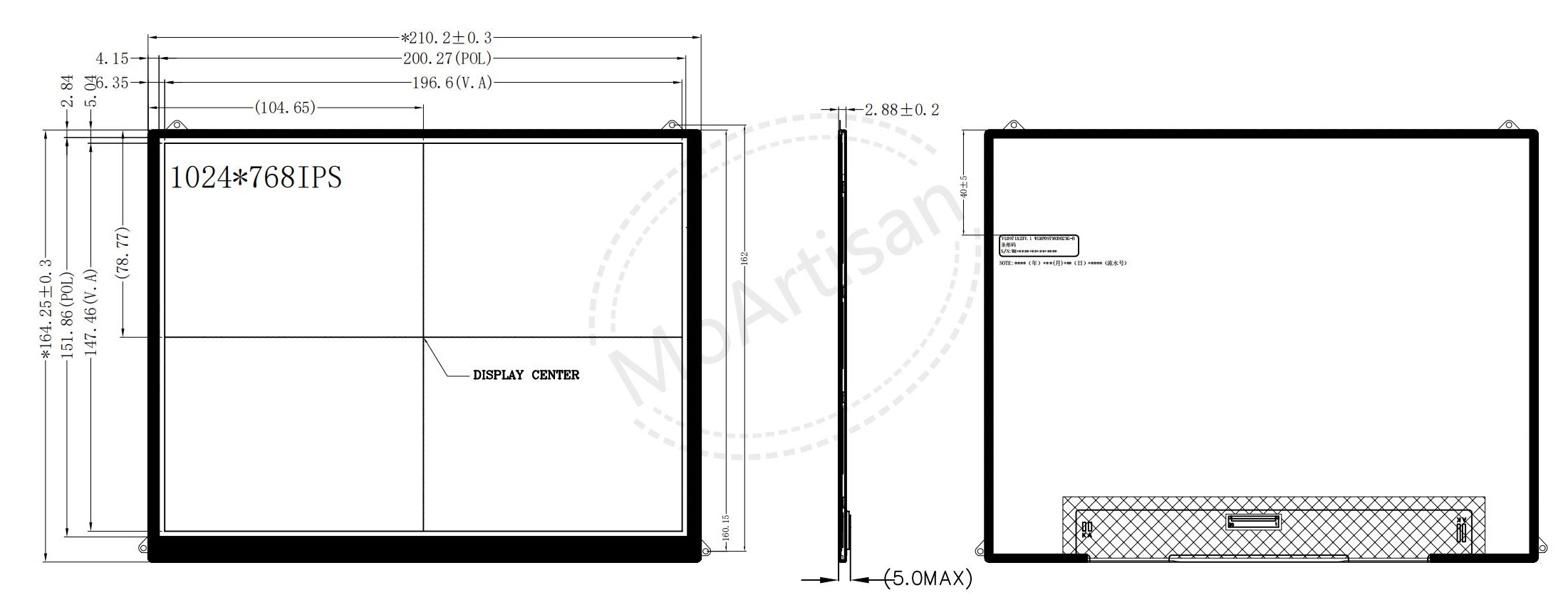

Production Drawings

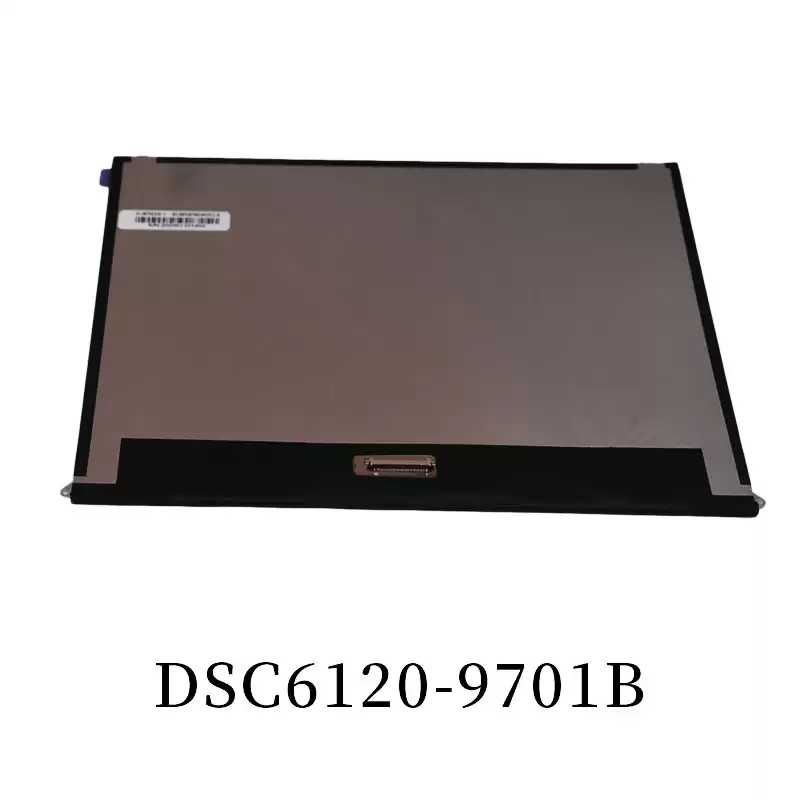

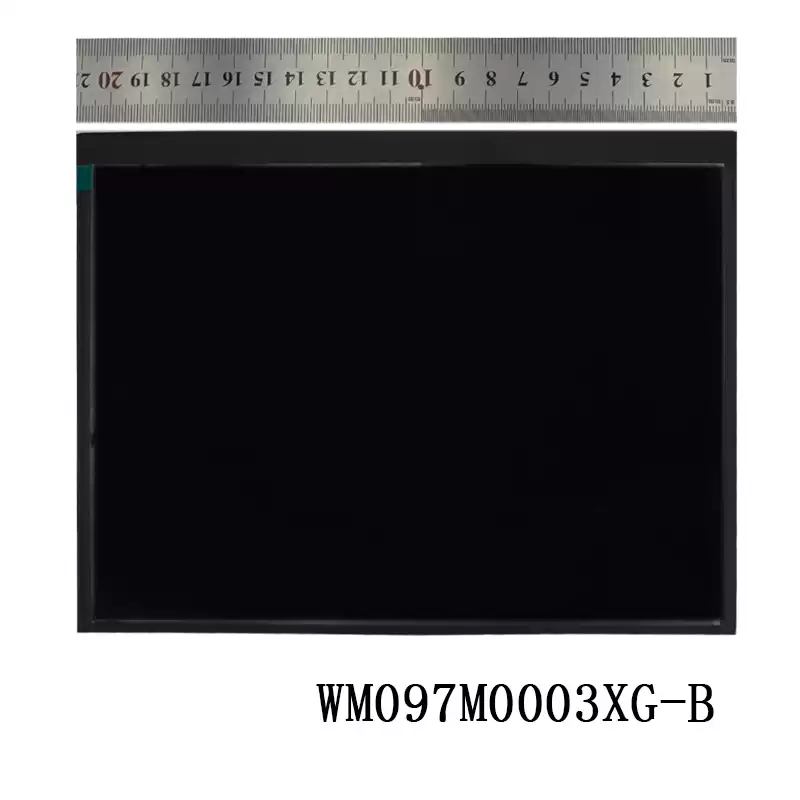

WM097MO001XG-A Introduction
-
9.7 (4:3) inch
diagonally measured active display area.
-
XGA (1024 horizontal by 768 vertical pixel) resolution.
-
9.7 inch IPS LCD module with 400 nits brightness.
-
30 PIN CON, 6-bit LVDS.
-
WM097MO002XG-B is the lcm thinning designed to 2.8mm thickness, 350 nits brightness.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
9.7
|
XGA, 1024RGB*768,
IPS, 4:3 Screen
|
210.2*164.2*5.0
210.2*164.2*2.8
|
6X6 LED (50K)
|
30 PIN Con, 6-Bit, LVDS
|
400 nits/800
350 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM097MO001XG-A
WM097MO002XG-B
|
Production Applications
Mobile Terminal, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes：
It takes the traditional pixels and proportions for industrial use, and the lcd cell is designed according to military use.
