EC-JS02-9CH 9 Ports PoE Switch
IEEE802.3af/at standards 9 Port Managed Poe Switch supply power to wireless access points and surveillance cameras.
Features
Standards:IEEE802.3af/at
Backboard bandwidth:12.8G
Mac Address Capacity:8K
Port auto-flip (Auto MDI/ MDIX):Support
Physics Features

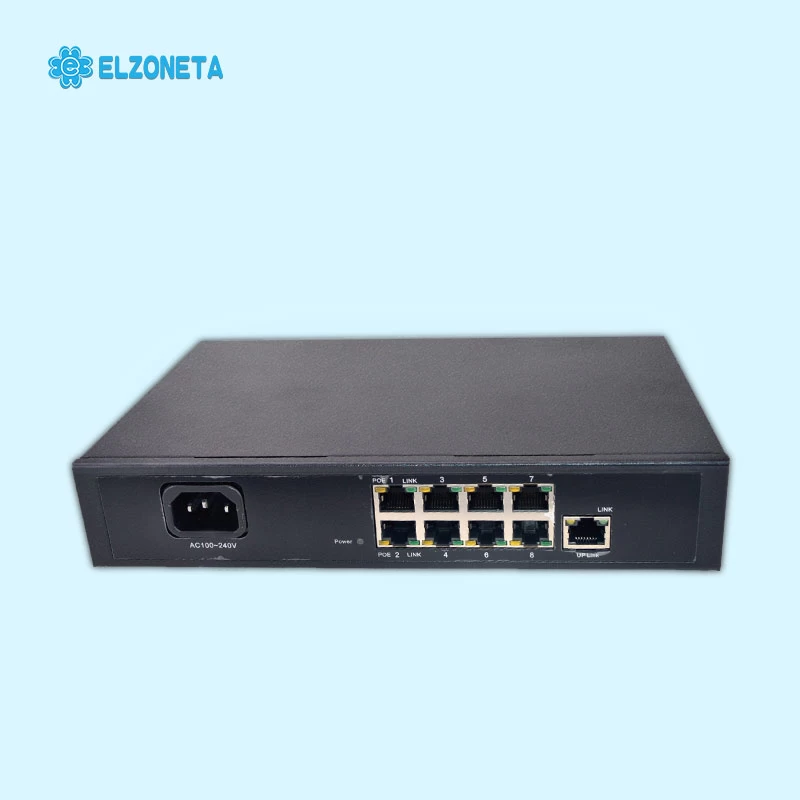

Uplink port RJ45:1
PoE Port:8
Size:234*149*44mm
Power Consumption:≧245W or 385W (optional)
PoE Power Consumption AF:≦15.4W /port
PoE Power Consumption AT:≦30W/port
Weight:< 2.5 Kg
Indicator Light Status
Power:Always light ON after power up.
Port Indication
Link / Speed:the indicator light will be ON after connecting to 100M. It will be flashed when transmitting data.
PoE Active:the light is always On when PoE power supply.
Working Environment
Operating temperature:0℃～40℃
Storage temperature:-20 ℃ ~ 70℃
Operational Humidity:10%～90% (non-condensing)
Storage Humidity:5%～90% (non-condensing)
Electrical characteristics
Power Voltage:100-240V
AC Power Supply:50Hz AC
PoE Power Output Power:130W
