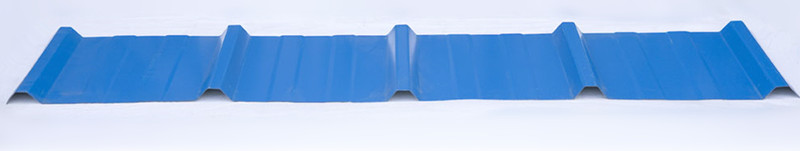

900 Prefabricated Wall Panel Corrugated Steel Wall Sheets
Product Parameters:
|
Product Name
|
900 Prefabricated Wall Panel Corrugated Steel Wall Sheets
|
|

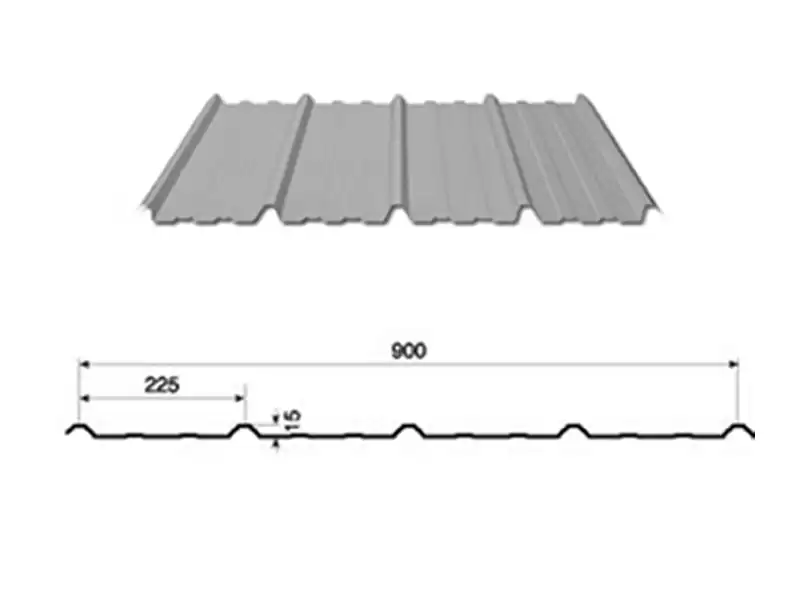

Profiled Steel Sheets Type
|
YX15-225-900
|
|
Effective Width
|
900mm
|
|
Feeding Width
|
1000mm
|
|
Crest Height
|
15mm
|
|
Panel Thickness
|
0.5-0.6mm
|
|
Section Inertia
|
1.23-1.48cm⁴/m
|
|
Section Resistance
|
3.85-4.55cm³/m
|
Product Advantages:
1.Standard wall panels commonly used in industrial buildings.
2.It is directly connected to the secondary structure by screws and has strong wind resistance.
3.The 15mm wave height and trough design make the wall panel have a stronger three-dimensional effect and better appearance.
4.High standard, high strength fasteners provide excellent weather tightness.
5.High effective utilization, easy installation, economical and practical.
