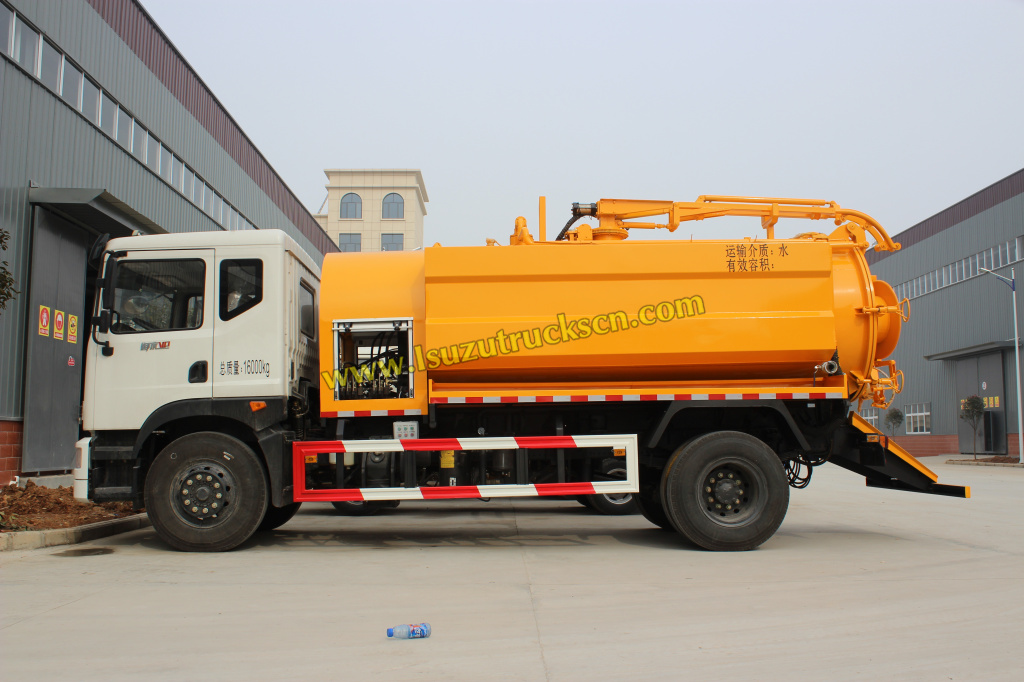

9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks
Basic Description
Custom made Combination Sewer Cleaner Truck also called as Jetting and Suction Truck ISUZU, Japan Isuzu Combined Jet Suction Truck, Jet-Vac Tank Truck, combined Jetting Vacuum Truck Manufacturer.

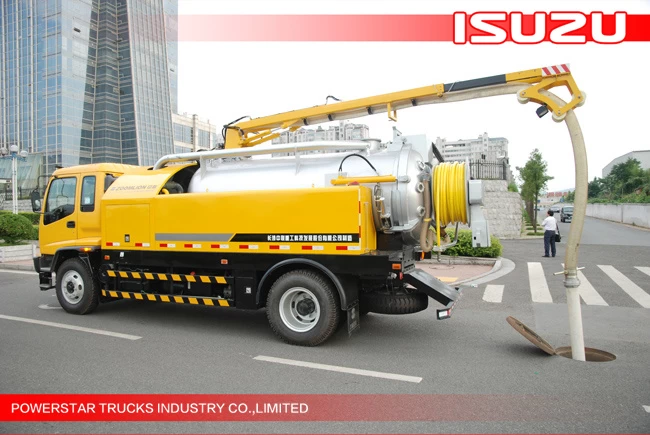

Isuzu brand Sewer cleaner and vacuum truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by the flushing action of high pressure water.
The unit includes a quality vacuum pump and a high pressure water pump, as a multi-functional combination unit integrating a high pressure jetting system, a slurry separation system, a sewage discharge system and vacuum suction system. It becomes the most advanced combination unit in China with its key components imported from Europe.
Key Features
ISUZU FVR Chassis, Durable & Performance.
Widely used in environment and sanitation field
Stainless steel sewage water tank and clear water tank
High performance vacuum pump & high pressure pump
POWERSTAR 20 years’ experience on Vacuum Tanker truck exporting.
Main specifications
| ISUZU Combined Sewer Cleaner Vehicles (9,000 litres) |
| General |
Vehicle Brand |
Powerstar |
| Chassis Brand |
ISUZU |
| Overall Dimension |
8900 * 2500 * 3200 mm |
| GVW / Kerb Weight |
16,000 kg / 9,800 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
Air conditioner is optional |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU 6HK1 |
| Power |
240 Hp (178 KW) |
| Displacement |
7790 ml |
| Emission Standard |
Euro 4 |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
6-speed front, 1 reverse |
| Wheelbase |
4700 mm or 5000 mm |
| Number of axle |
2 |
| Tyre Specification |
9.00-20 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
110 km/h |
| Paint |
Metallic paint |
| Superstructure |
Water Tank |
Tank Capacity |
4,000 Litres (about 900 gals) |
| Tank Material |
Carbon steel |
| High Pressure Pump |
Italy Imported brand / 16Mpa |
| Flow Speed |
125 L/min |

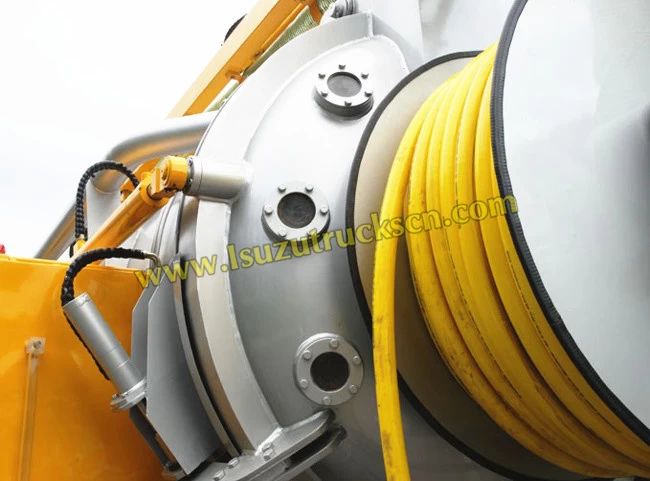

| High Pressure Hose |
60m |
| Suction Head |
6 m |

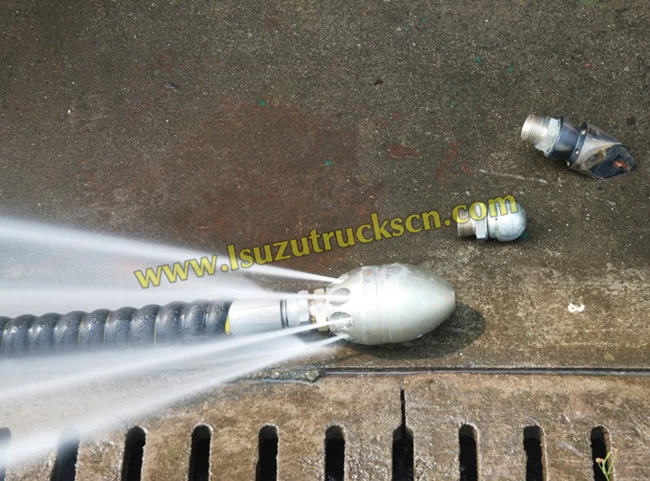

| Nozzles |
A cluster of nozzles included |

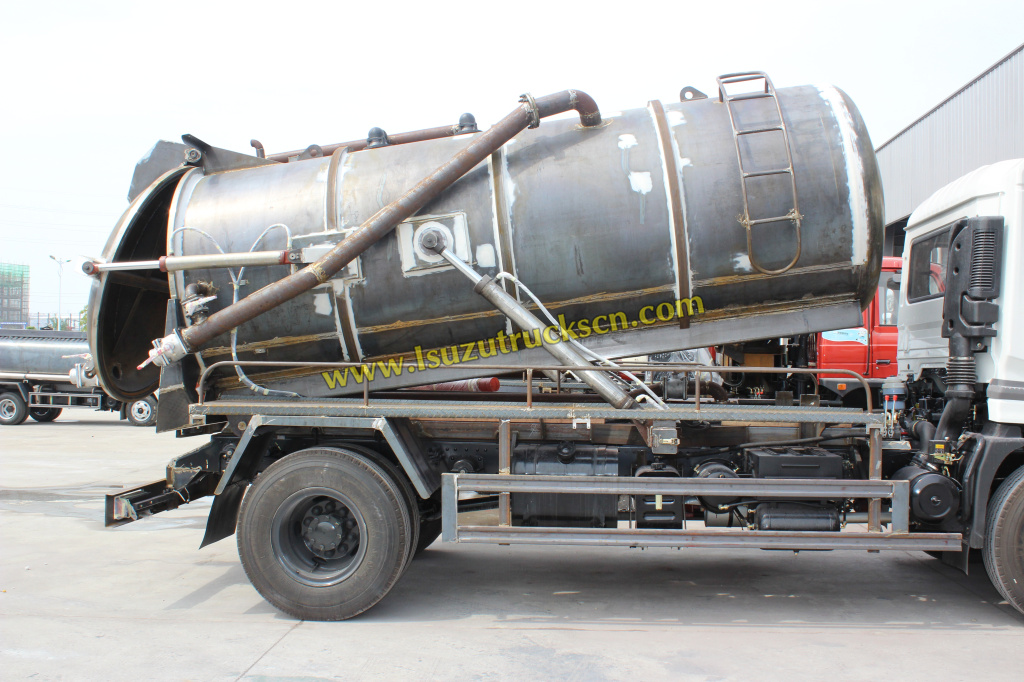

| Sewer Tank |
Tank Capacity |
5,000 Litres (about 1,100 gals) |
| Tank Material |
Carbon steel |

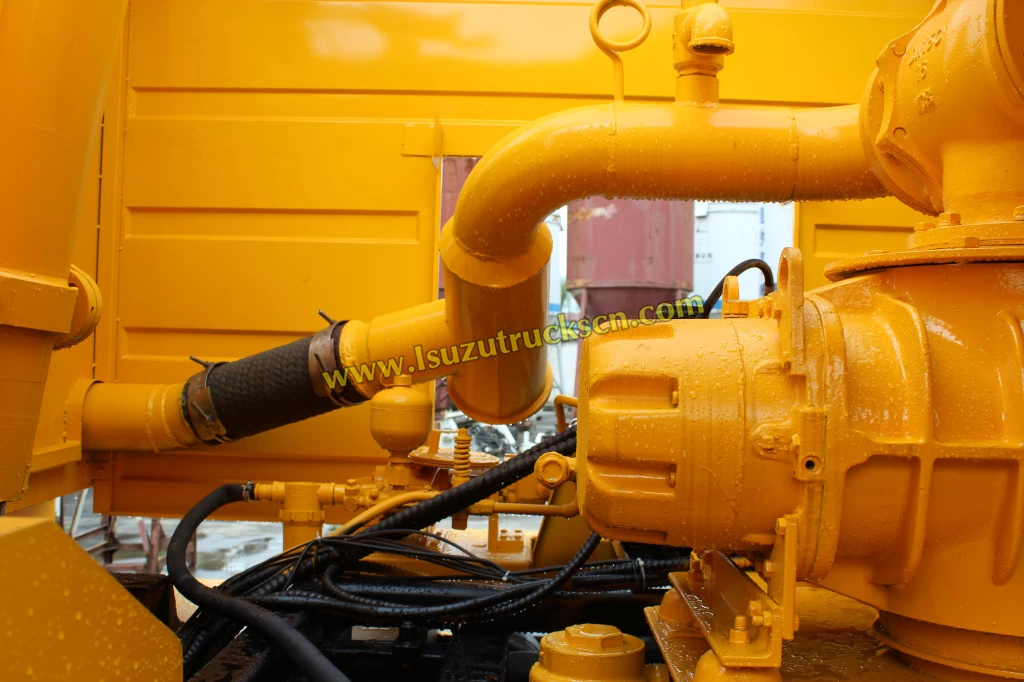

| Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |

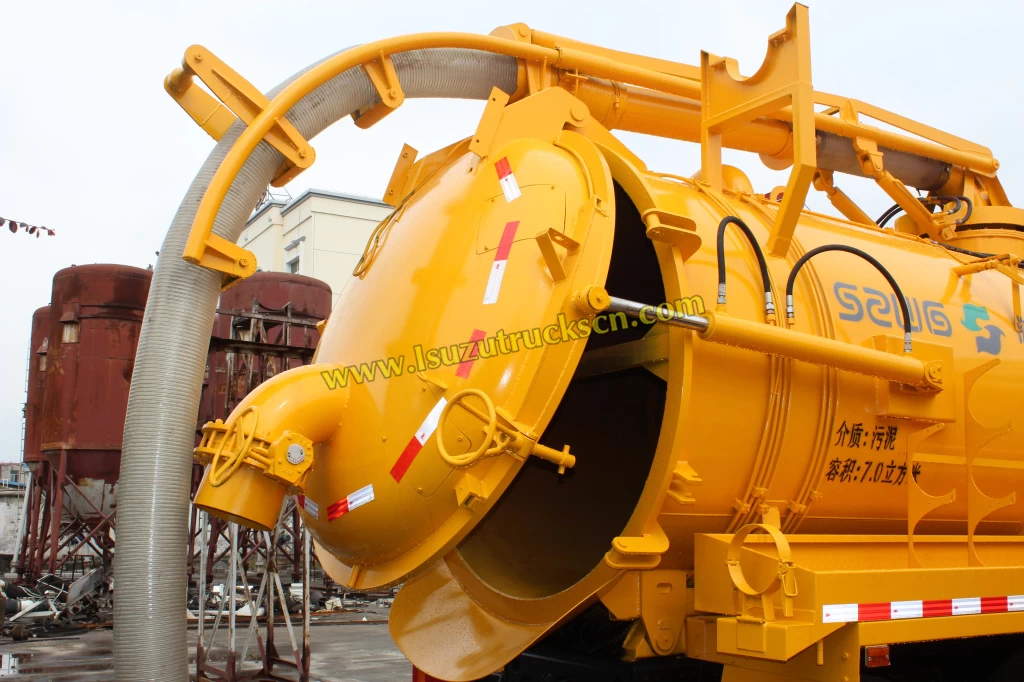

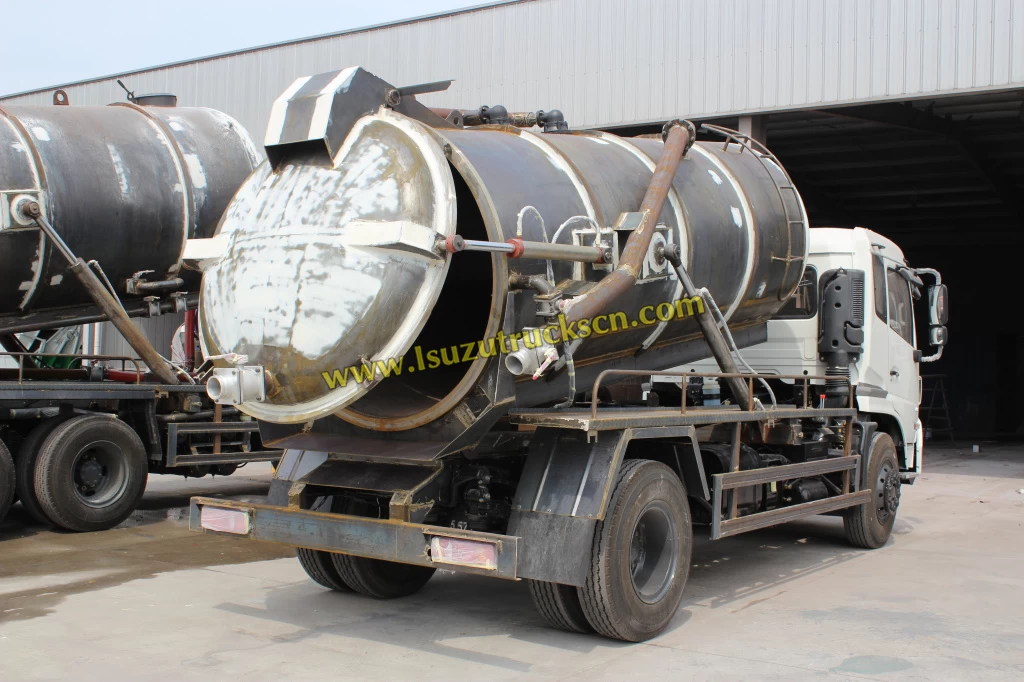

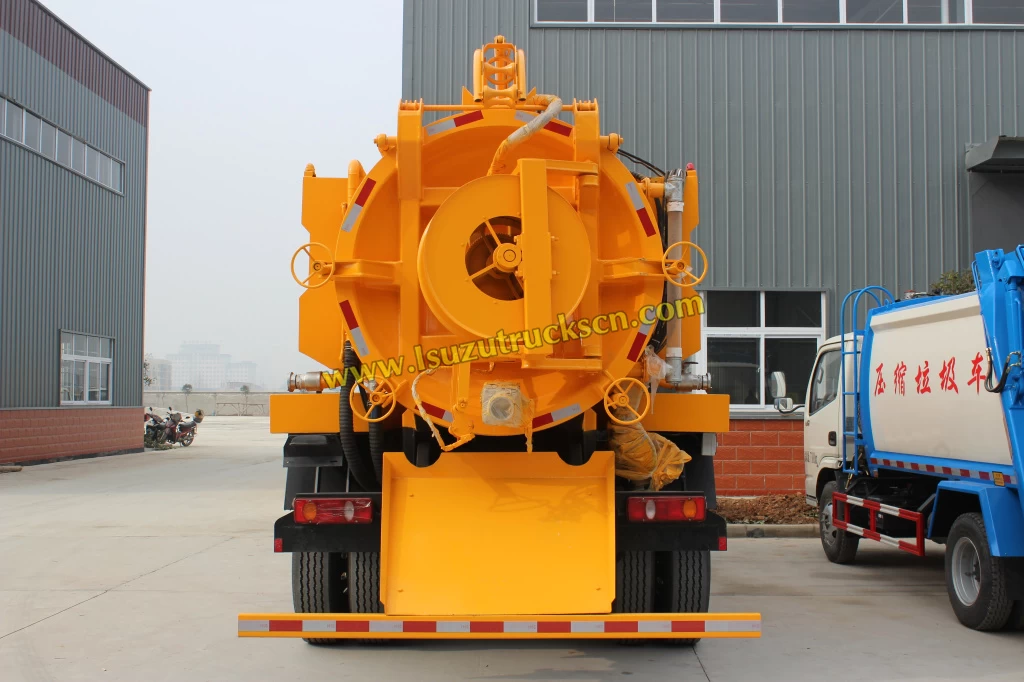

| Rear door can be hydraulic opened for complete discharge of solid stuff. |
| All standard accessories: manhole, tool kit, English manual…….. |
| Optional |
** Tank material could be stainless steel.
** High pressure hose length could be customized. |
HOT sale Isuzu Trucks

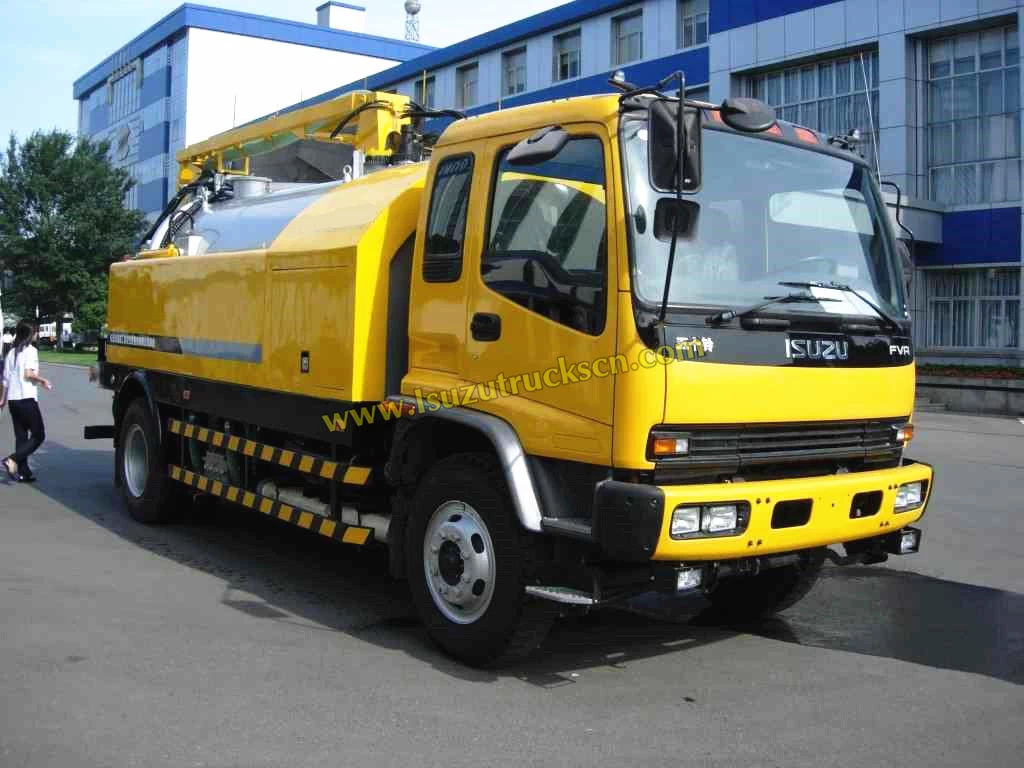

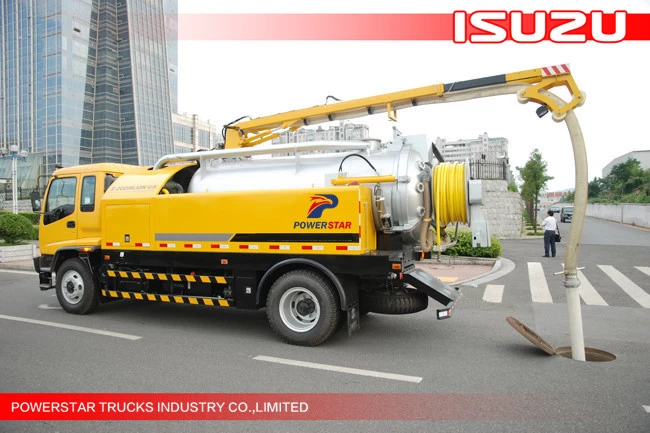

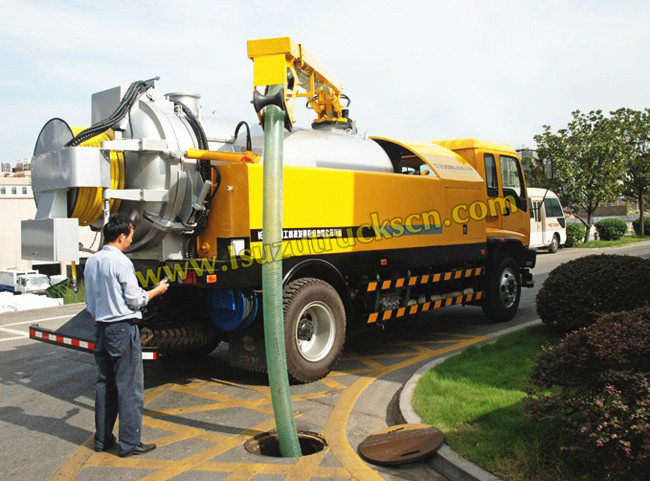

Overview of the ISUZU combination vehicle:

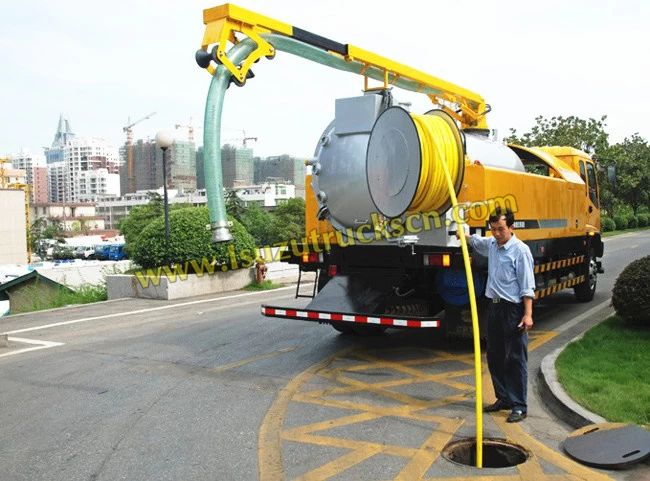

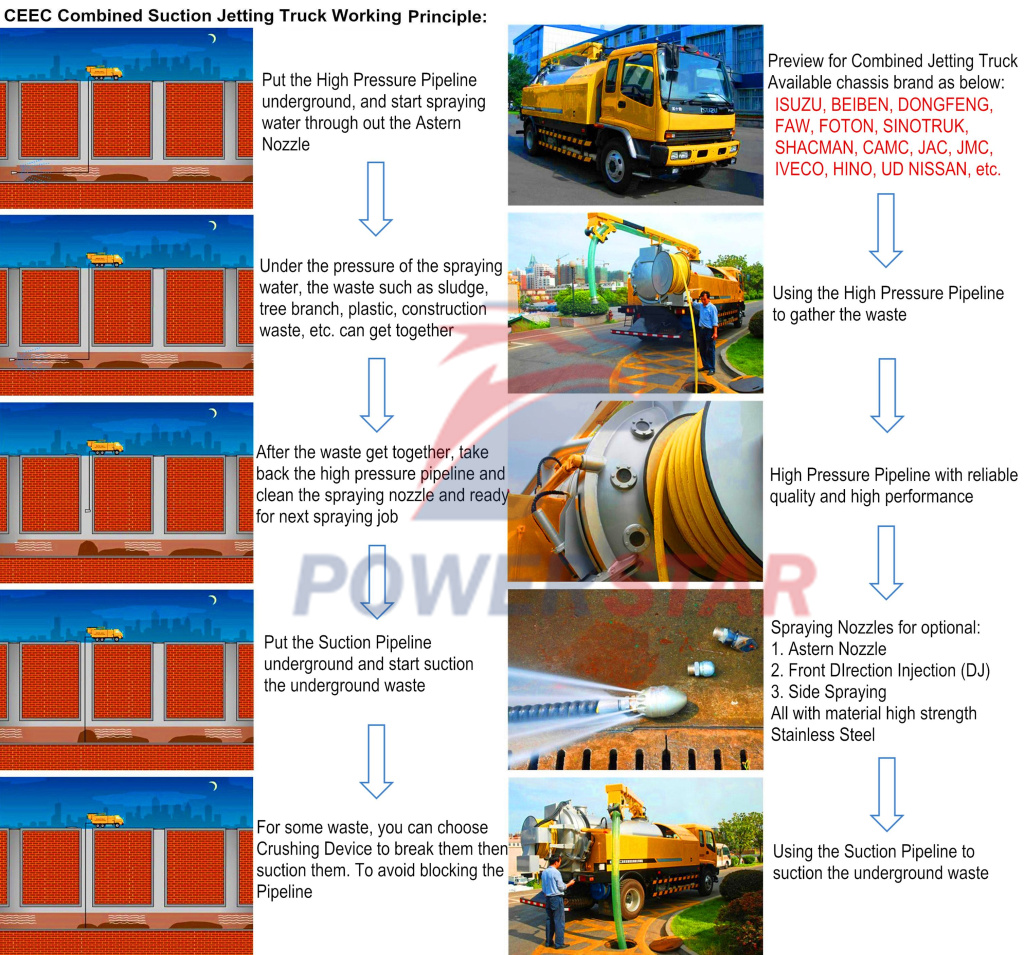

How to operation Combined sewer jetting and vacuum truck Isuzu brand?

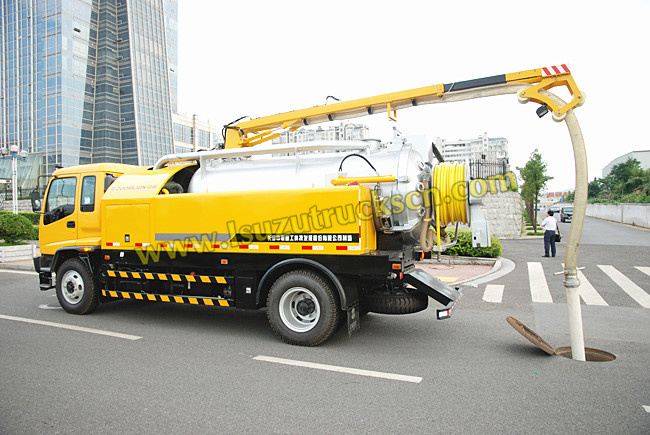

Over view of ISUZU Trucks mounted Jetting vacuum trucks
