Description
JT-9282 adopts the clip of Impinj R2000, which could achieve high speed
and rapid date processing operation. Full support ISO-18000-6C(EPC C1 GEN2)
protocol.
JT-9282 is easier to install for small size and light weight.
There
will be flashing and buzzer when read tag.
JT-9282 could be used in variation
area, such as vehicle management, customer management, logistic management and
production automatic management, etc.
Feature
◆ Built in the RFID module of R2000
◆ The stable reading distance could reach 8M
◆ Multiple tags reading ability
◆ High sensitivity to tag
◆ Support RSSI indication
◆ Waterproof and sunscreen
◆ Support SDK dynamic link
libraries(DLL) and secondary development
Specification
|
Item No.
|
|
JT-9282A
|
RS232,RS485, Wiegand
|
|

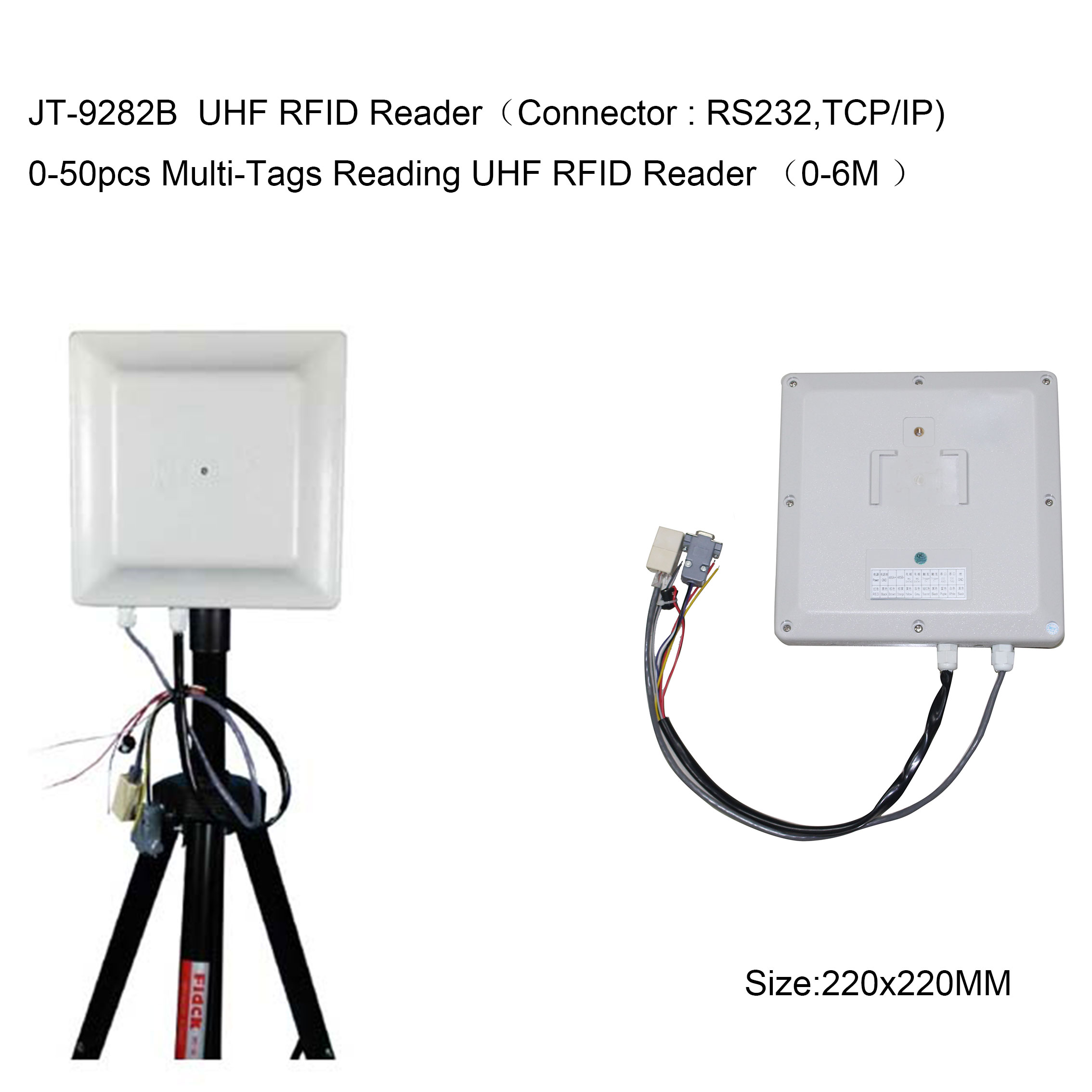

JT-9282B
|
RS232,TCP/IP
|
|
JT-9282W
|
RS232,WIFI
|
JT-9282G
|
RS232,GPRS
|
|
Performance Parameters
|
|
Working
Frequency
|
902~928 MHz or
865~868MHz
|
|
Protocol
|
ISO18000-6C(EPC
C1 GEN2)
|
|
Chip
|
Impinj R2000
|
|
RF power
|
0～30dBm(Adjustable)
|
|
Software &
SDK
|
DEMO and C#, VC ,
Java
|
|
Industrial
lightning protection
|
6000V
|
|
Low temperature
protection
|
Northeast,
Northwest extremely cold region, low temperature protection
|
|
Reading range
|
stable reading
range 8M(Depends on tag & environment)
|
|
Tag handling
volume
|
0-200 tags
|
|
Storage space
|
1M or 8M Flash
save without power supply(customized)
|
|
Real-time clock
|
without power
supply, real-time clock save and working(customized)
|
|
Frequency
modulation
|
hopping or fixed
frequency
|
|
Input/output
port
|
Two-way relay
output(customized), two-way I/O input(customized)
|
|
RSSI
|
RSSI numerical
test
|
|
Antenna gain
|
8dBi circular
polarization
|
|
Working way
|
Buzzer & LED
|
|

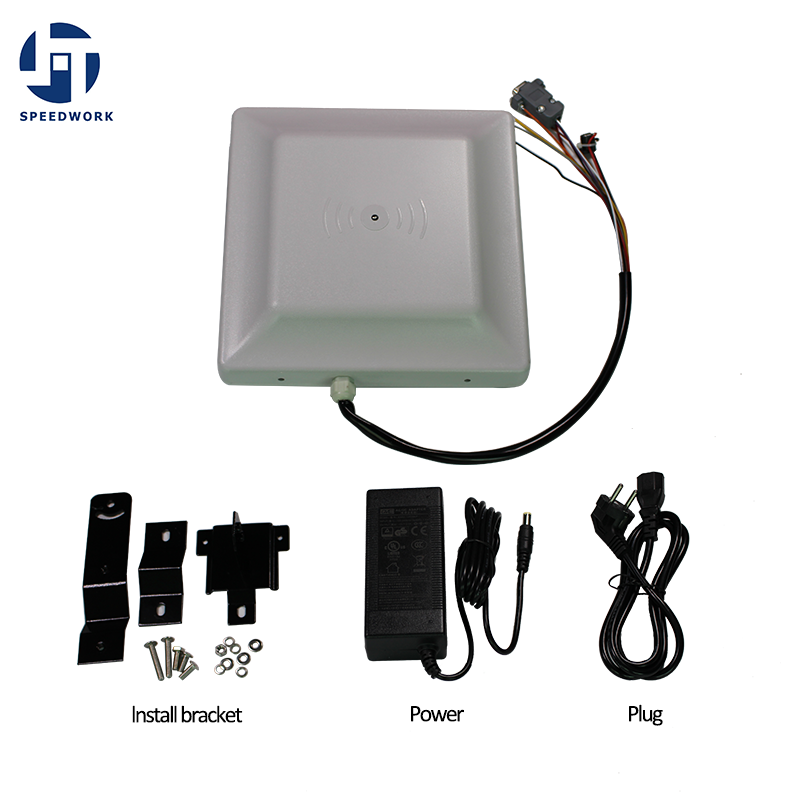

Power
|
12V/3A Adaptor
|
|
Ethernet power
supply
|
POE(customized)
|
|
Physical Parameters
|
|

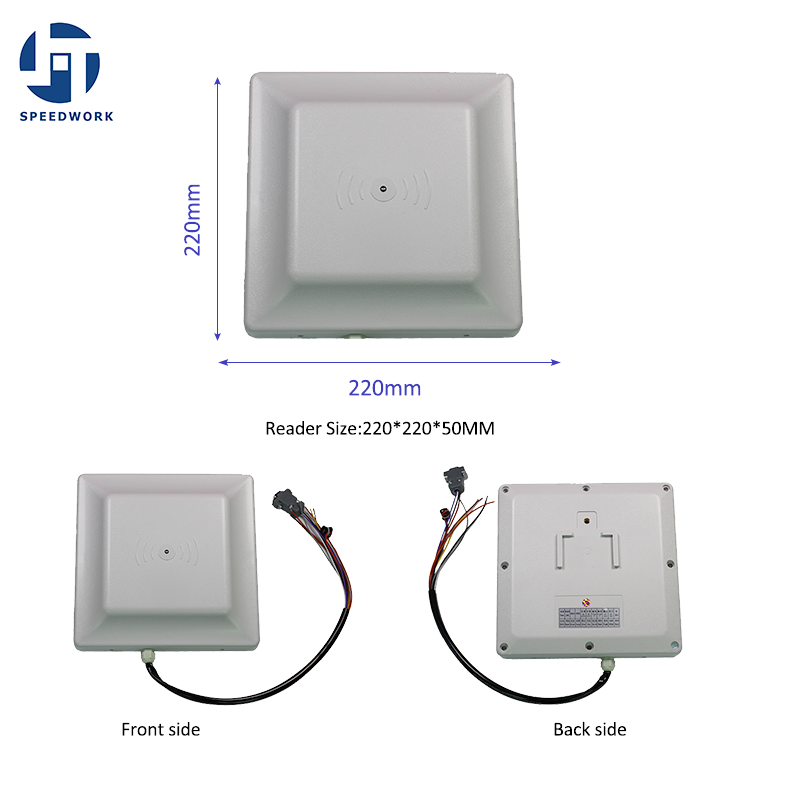

Item size
|
220x220x50mm
|
|

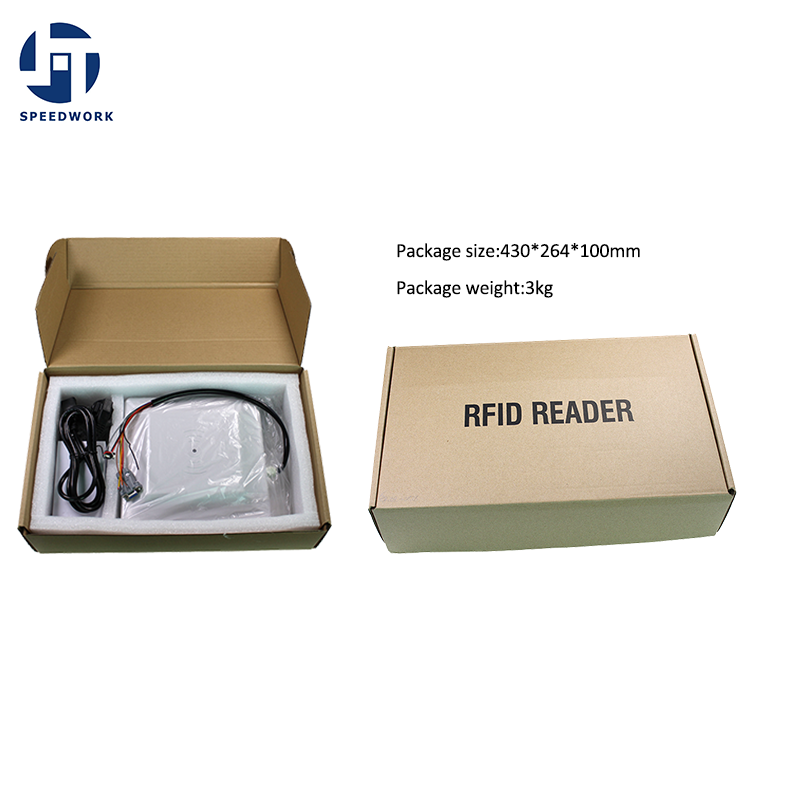

Package size
|
410x270x110mm
|
|
Net weight
|
3KG
|
|
Shell material
|
ABS
|
|
Working
temperature
|
-20℃~+65℃
|
|
Storage
temperature
|
-45℃~+95℃
|
