9060 Laser engraving machine with up and down table is with up and down working table, suitable for cutting and engraving thick materials. Different size of working table is optional. Differenct number of laser head can be chosen.

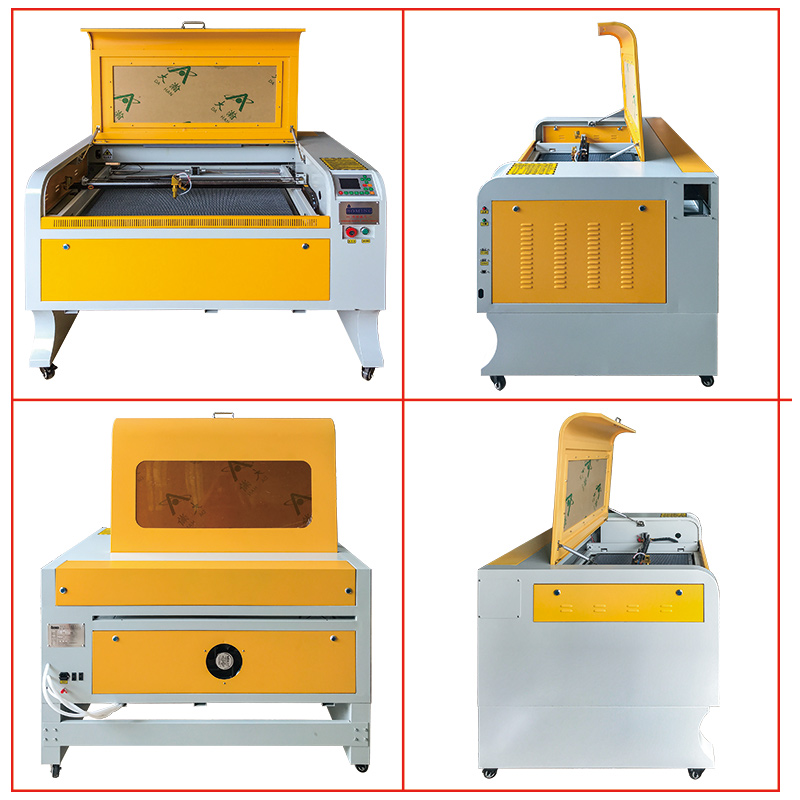

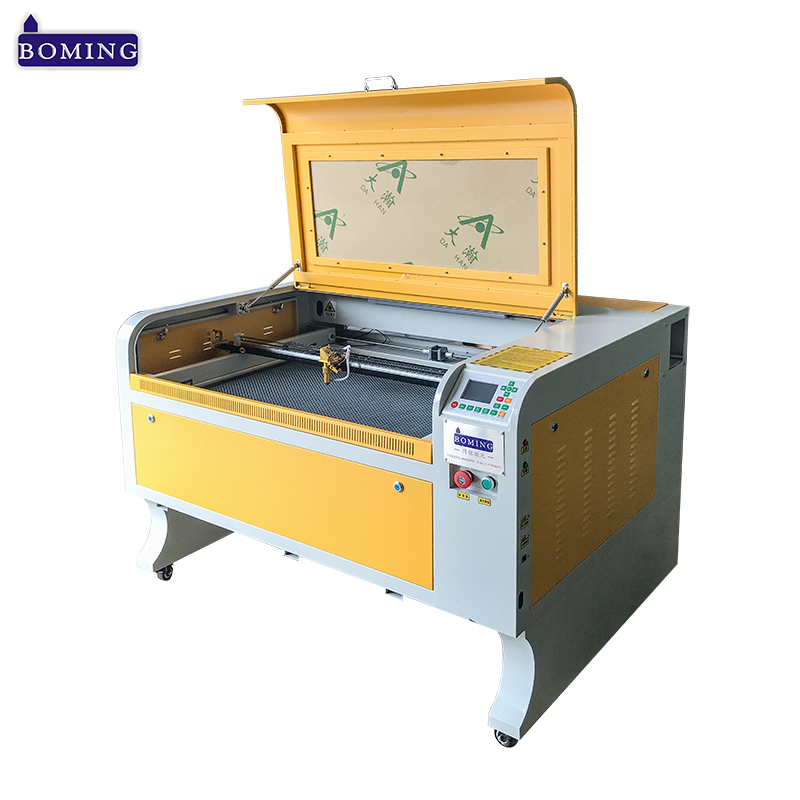

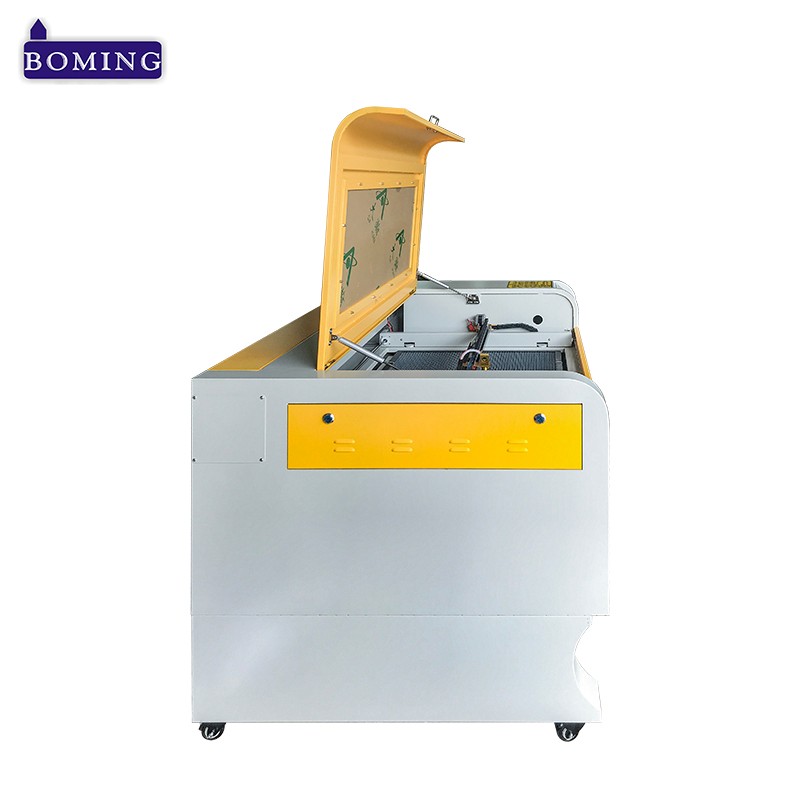

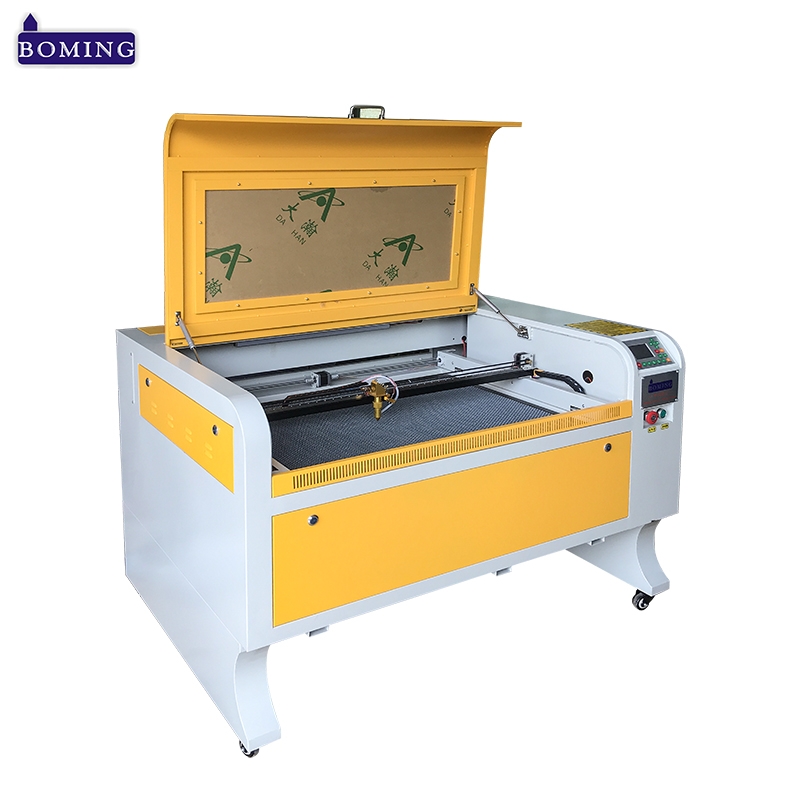

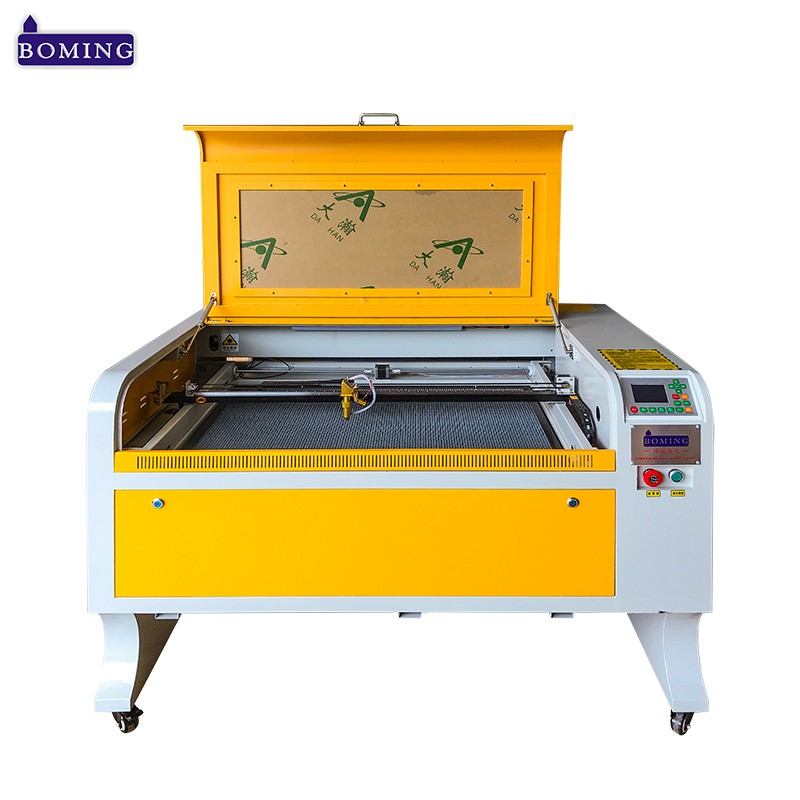

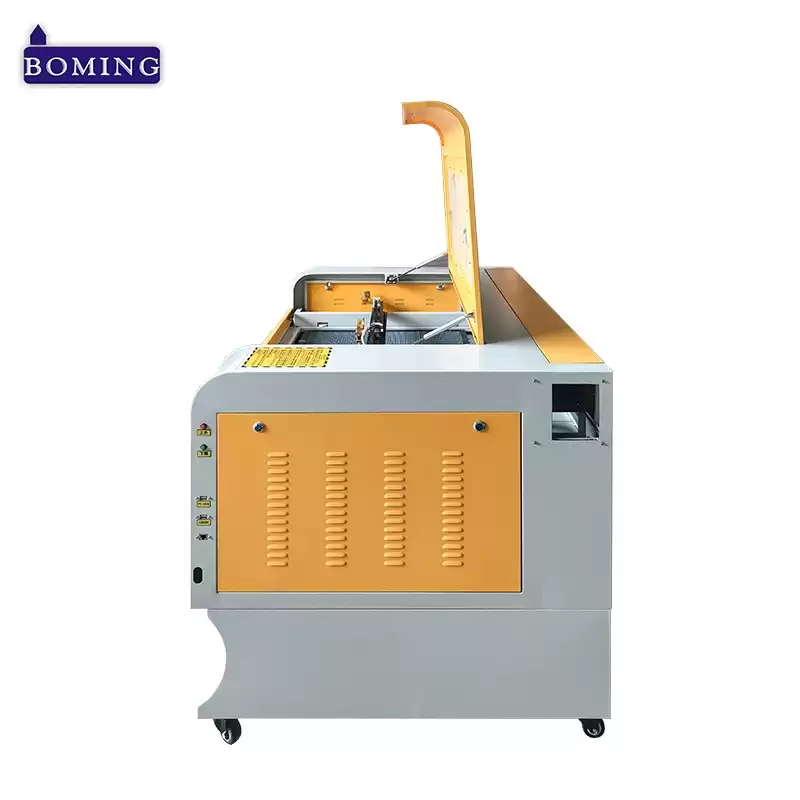

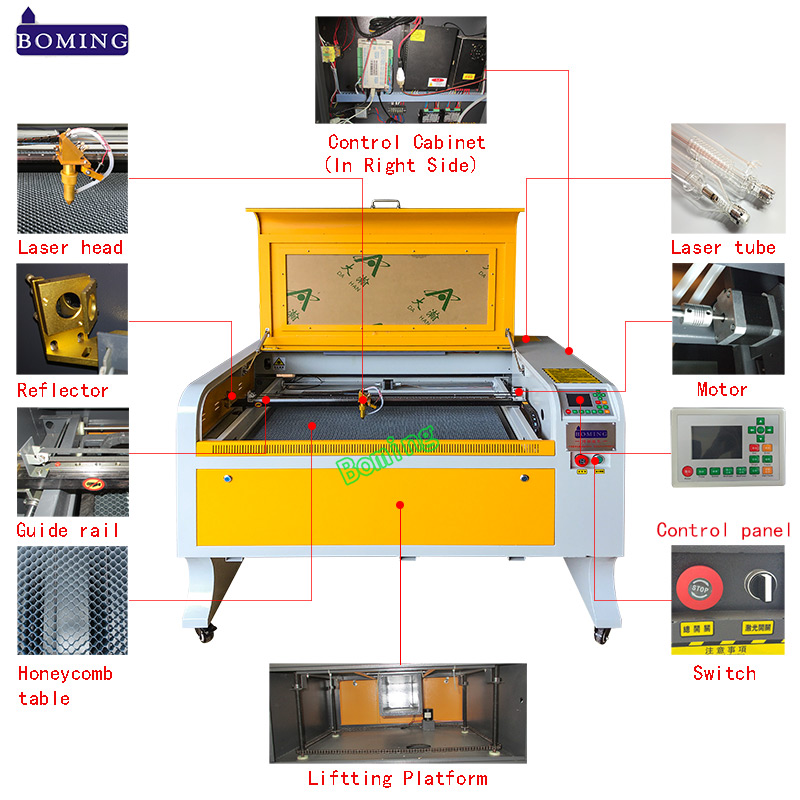

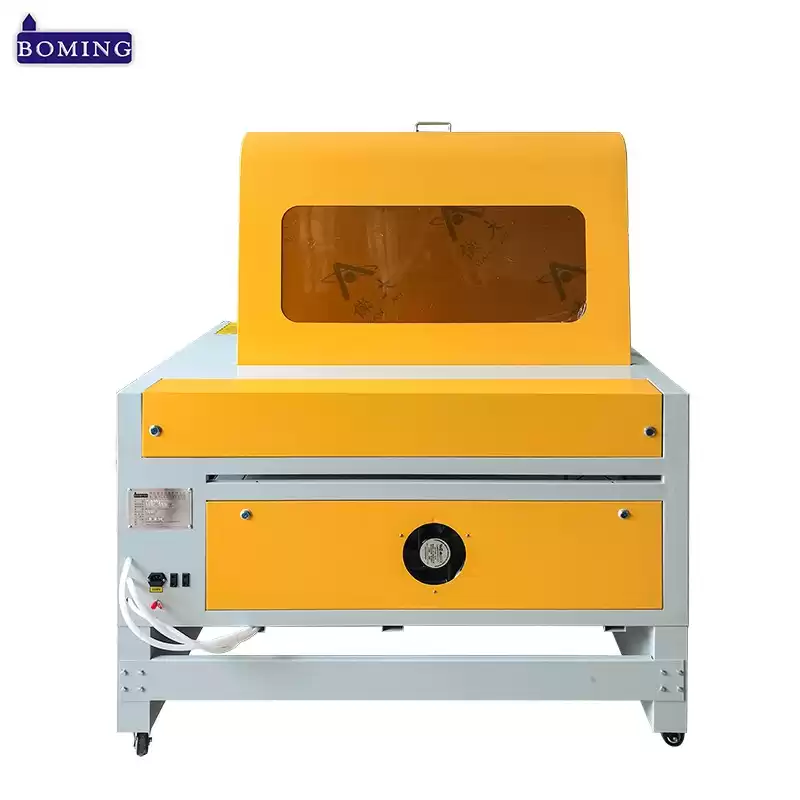

Machine pictures:
Features:of 9060 laser engraving machine with up and down table
1、The design of lifting platform meets the requirement of processing thick materials.
2、The straight-through type design of front side and back side is suitable for processing long materials.
3、The worktable is equipped with the lifting platform drove by electricity. The customer can choose auto focus system to achieve precise automatic focus.
4、The sealed air-bleed system thoroughly solves the problem of exhaust emission during the laser processing and meets the requirement of air exhaust.
5、Choosing the 3 phrase mixed stepping motor driving system can make sure that the machine work smoothly with smooth cut and exact size. The adjustable balanced guide rail ensure that the laser machine can work long time and precisely.
Advantage: of Laser Engraving Machine with up and down table
1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board
Applicable Industries:of Rotary laser engraving machine
Advertising industry, decorative industry, crafts gift industry, electronics and electrical appliances industries, electric appliances, model industry (construction model, navigation model, wooden toys) etc.
Applicable Materials: of laser engraving machine with lifting platform
Acrylic, wooden planks, bamboo products, color plates, fabrics,paper leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards,lamp,plywood, rubber,stone, ceramics,gemstone,granite, and other nonmetal materials.
Technical Parameters:of Laser Engraving Machines
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000mm |
Positional Accuracy | ±0.05mm |
Lift range | ＜200mm |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Why choose us:
1. 13 years experience on laser cutting and engraving machine.
2. Use good brand parts, excellent machine quality.
3. Free consulting, lifetime technical support.
4. Various optional types, customized acceptable.
5. Machines sold to Southeast Asia, South Asia, South America......
Our Service:
1) Guarantee for whole machine for 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
