Shade pole motors are the most economical means of providing rotational motion for low power machines such as small fans, blowers, and fluid mixers.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.
-

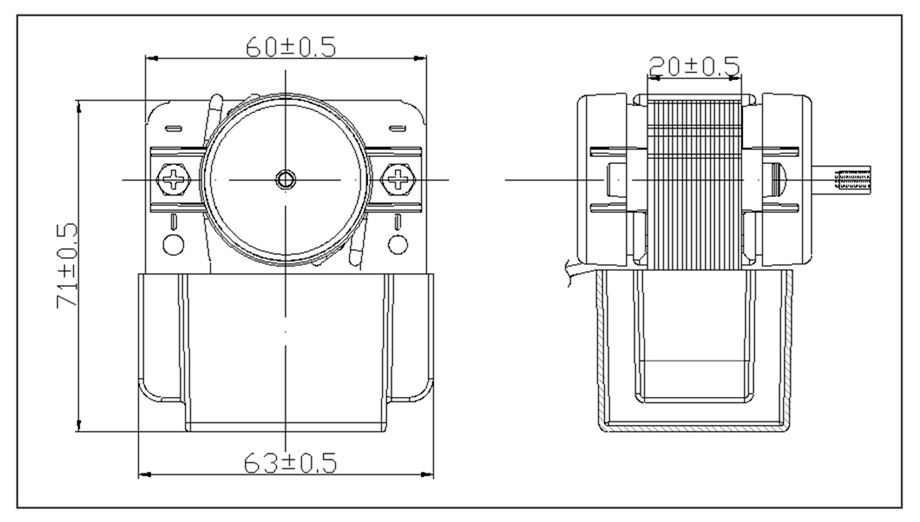

Dimension of the motor is 61 mm(L) x 20 mm(H) / The size of fan in inch is 2.40 in(L) x 0.78 in(H).
-
Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
-
Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
-
Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

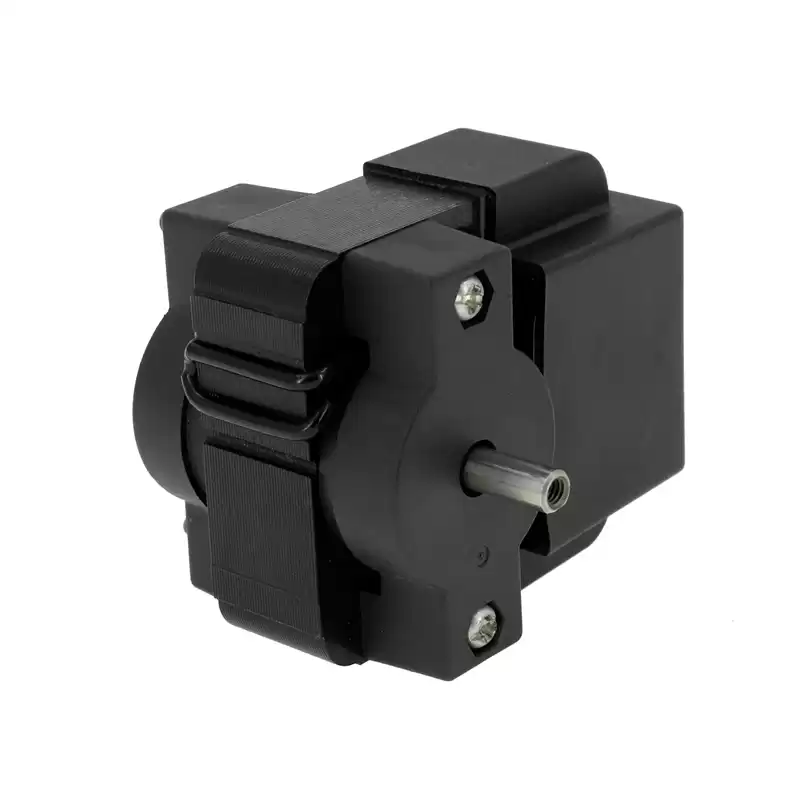

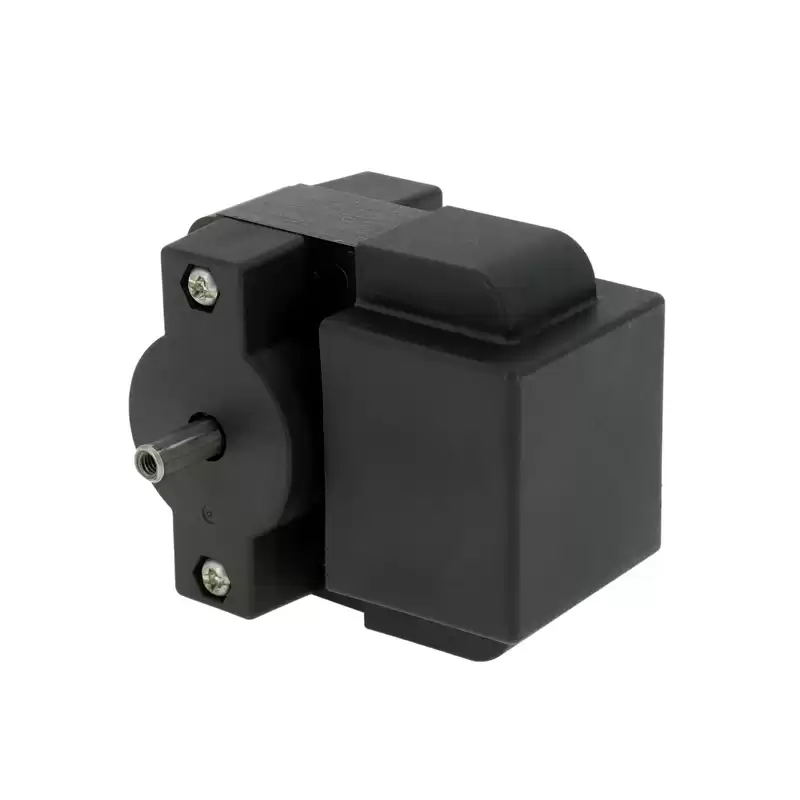

AC Shaded Pole Motor Z6120

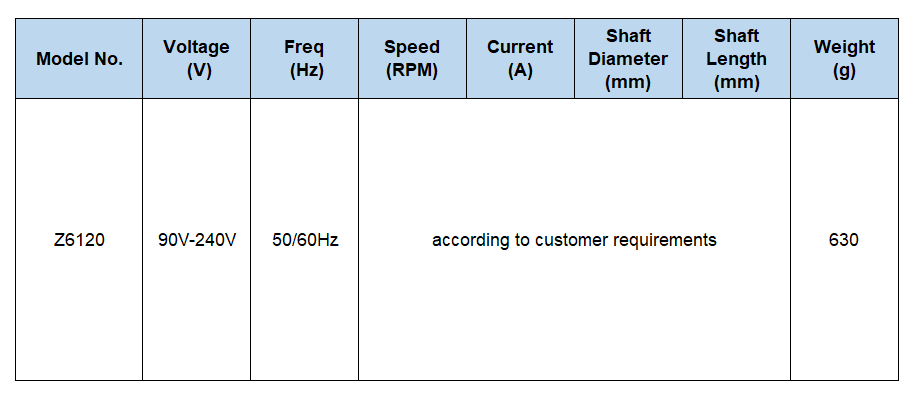

General Specification:
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
High efficiency for low operation costs;
-
With energy efficient, durable, and high quality;
-
Leading reliability and vibration values, even in extreme conditions;
-
Resource-conserving with low weight and reduced space requirements;
-
Extremely long lifetime as a result of the optimized temperature distribution;
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
Application
Used in air conditioning and refrigeration equipment and cooling fans, pace heaters, fans humidifiers, business equipment, office machines, household appliances and industrial products.
-
Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
-
Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
