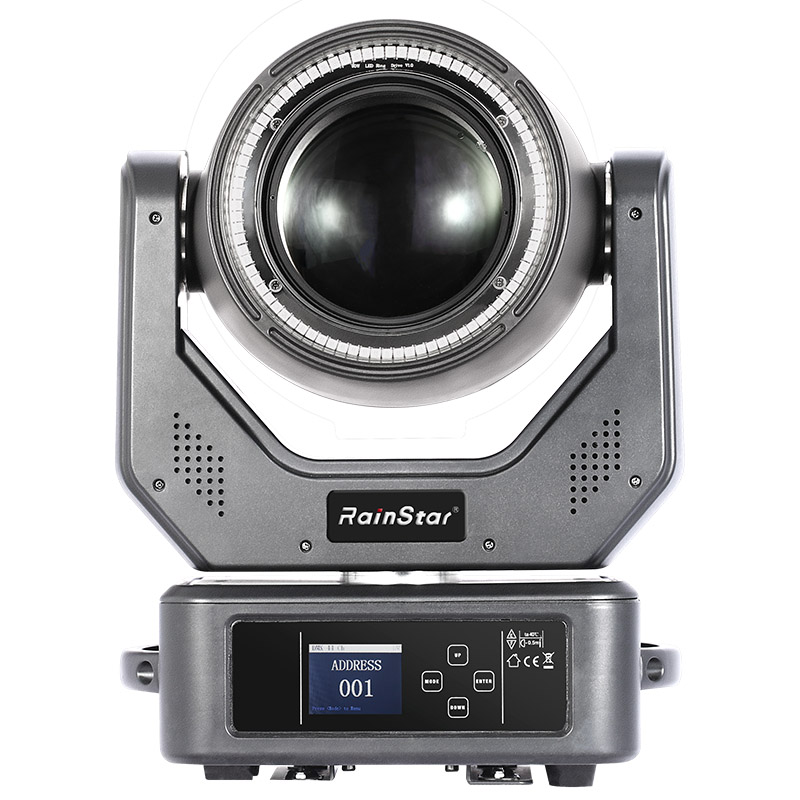

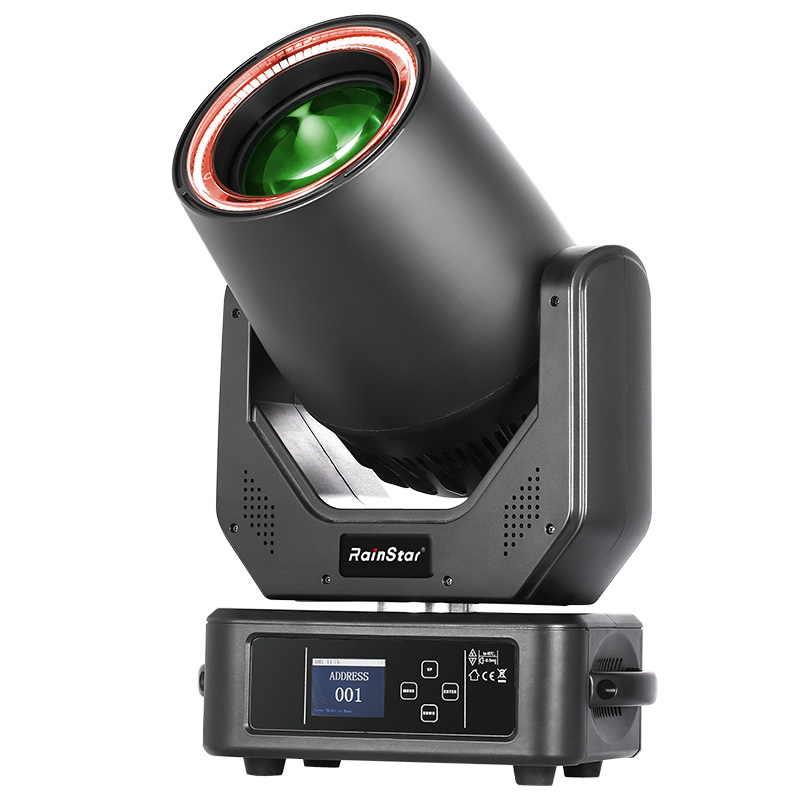

It is uses one 90W white LED and 84*0.2W RGB LEDs. The beam angle of white light is 1 °, and the three-phase motor responds quickly and smoothly pan andtilt 6 rows of mirrors, rotatable, a fogging mirror and full-color mirror, powerful beam effect, combined with a halo of 84 0.2W RGB LEDs, produces 3D effects. DMX control method: DMX, Artnet. In addition to DMX control, it also has a powerful RDM.
● Optics
. LED：
※ LED:1x90W white LED
※ 84x0.2W RGB LEDs, creating a halo effect, which can be controlled individually
. LED color temperature: 7000K
. Beam angle: 1. °
. Life span: 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan / tilt operation:
※ 8bit and 16bit fine-tuning
※ Smooth and precise positioning
※ Pan : 540 ° or 640 °,Tilt 220 °
※The scanning position can be memorized, and it will be reset automatically after no expected operation.
※ Pan and tilt with error correction function
● Colour
. Color wheel: 14 colors + Open, the color wheel has half-color effect and continuous forward and reverse of the color wheel.
. The halo composed of 86*0.2W RGB LEDs can show dynamic effects, and the effects can be combined.
● Specification
. 3 DMX channel modes: 21CH / 44CH / 128CH international standard DMX512 channels
. Static gobo wheel: 21 fixed patterns + white circles, pattern jitter effect, continuous forward and reverse patterns.
. Electronic focusing, ultra-smooth adjustment
. Frost filter for wash effect
. Colorful mirror effect plate
. Prism: one 48 prism and one eight prism, which can be rotated in the forward and reverse directions
. 4 control modes: DMX512, Artnet, voice control, master-slave
. Spot angle: 1 °
. Strobe effect :Puls Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz。
. The illumination of 5 meters at 1 ° is 190,000 Lux.
. Halo effect, can chase, horse race effect.

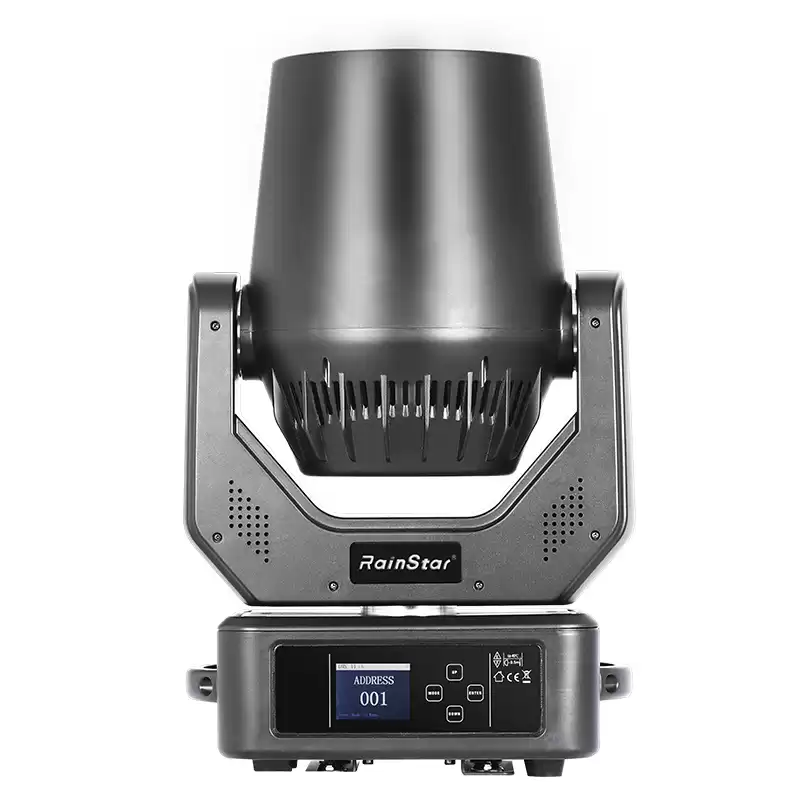

● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 3000Hz
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
. Dimmer mode: 2 kinds.(LED and Halogen)
● Other functions
. Setting and addressing: RDM
. ArtNet control: RJ45 input and output
. Fan cooling (fan changes speed with temperature change)
. LED temperature detection system to protect the life of light

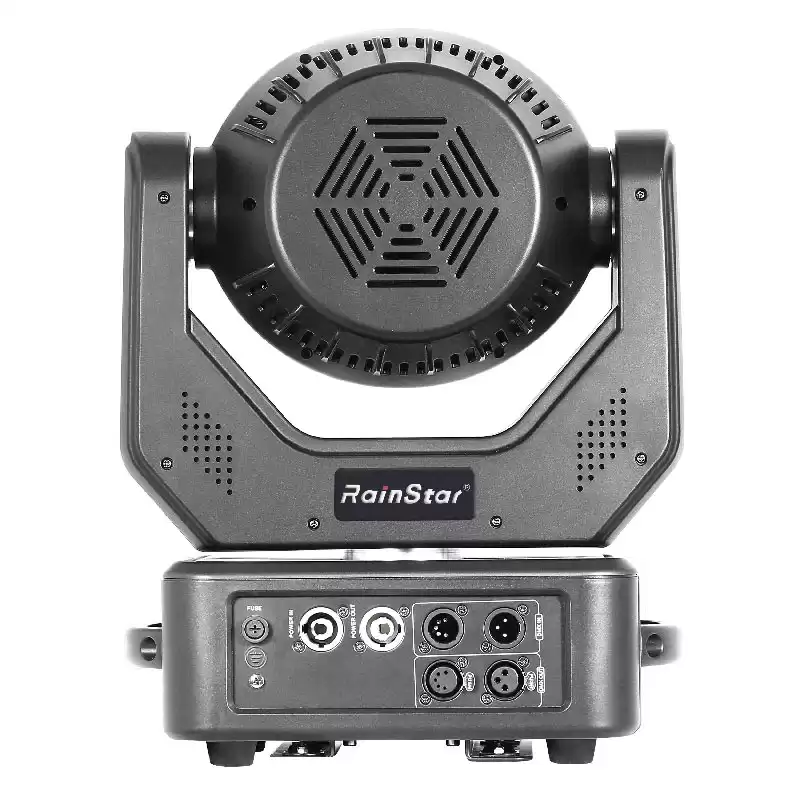

● Power / DMX connection
. Power connection: PowerCON power cable input and output
. DMX XLR socket ：3 Pin& 5 Pin XLR socket input, output
● Power
. AC100-240V 50/60HZ
. Power consumption：280W
● Protective class
. Housing material: ABS plastic fireproof material
. Waterproof level: IP20
