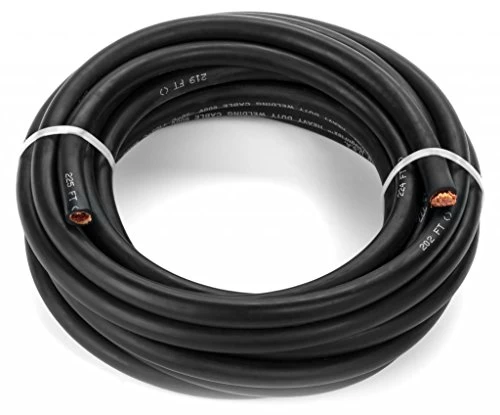

Welding cable is a harmonized, flexible, rubber jacketed welding cable. This cable is designed for the transmission of high currents from electric welding machines to the welding tool on manually or automatically operated line and spot welding machines. Also suitable for assembly lines and conveyor systems in the ship building, automobile industry and tool making industries. H01N2-D cables retain their high flexibility even under the influence of ozone, light, oxygen, protective gases, and oils. The robust jacket and construction aids in the resistance to both hot and cold temperatures as well as to flames. They are suitable for use outdoors in dry or damp conditions.
95mm2 Pvc Insulated Flexible Copper Conductor Welding Cable
Construction:
Extra fine bare copper strands - Strands to VDE-0295 as listed below - Synthetic or paper separator over core - Polychloroprene rubber (neoprene) jacket - UV, heat, cold and flame resistant.
Technical:
Working voltage: 100/100 volts - Test voltage: 1000 volts - Flexing bending radius: 12.0 x Ø - Fixed bending radius: 7.5 x Ø - Flexing Temp: -25º C to +80º C - Fixed Temp: -40º C to +80º C - Flame retardant: IEC 60332.1
Applications:
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.
