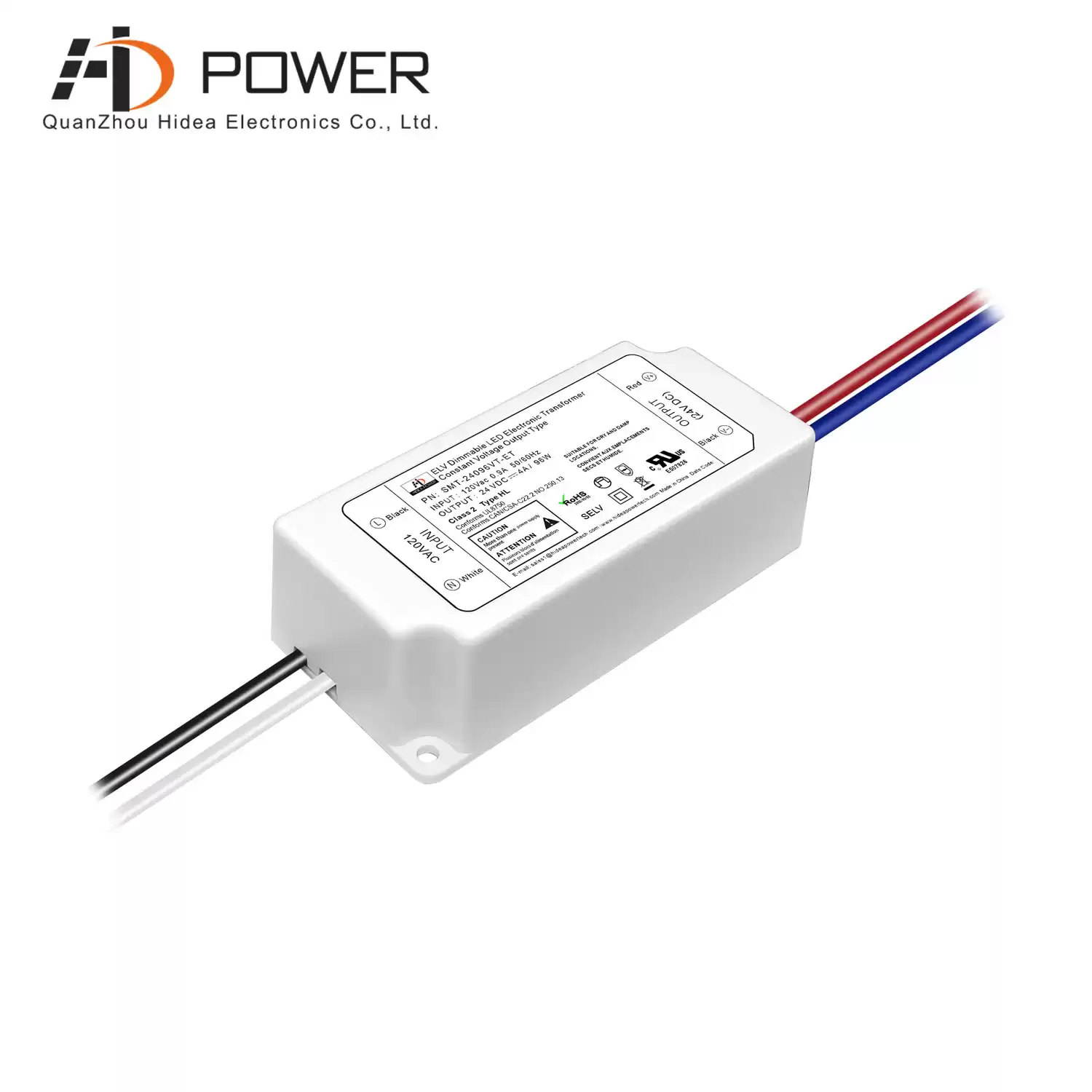

96w constant voltage triac dimmable 24v strip light transformer for led lights
triac/ELV dimmable 96W led driver has a dimming range of 0-100%, UL-RC, Class 2 certification standard, complies with Global Safety Lighting Code, input voltage of 100-130vac, with 3 year warranty, suitable for residential lighting and commercial lighting scenarios
Specification
|
Model Number
|
SMT-24096VT-ET
|
|
OUTPUT
|
|
Rated Power
|
96W
|
|
Rated Voltage
|
24V
|
|
Rated Current
|
4.0A
|
|
Voltage Tolerance
|
±1V
|
|
INPUT
|
|
Voltage Range
|
100-130Vac
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.94@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Efficiency(Typ.)
|
88%@120VAC
|
|
AC Current(Typ.)
|
1.2A
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Reduce the output voltage and output power, auto-recovery or re-power on to recovery
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
3.31x1.57x0.98 inch (L*W*H)
|
|
Packing
|
|
Related Products
|

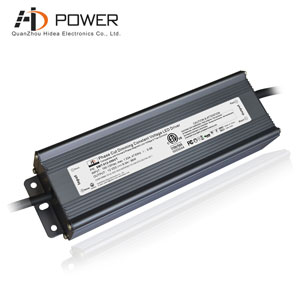

The 100W TRIAC dimmable led driver is made of aluminum, waterproof rating ip67, and comes with a five-year warranty. It is compatible with most 0-10v dimmers on the market
