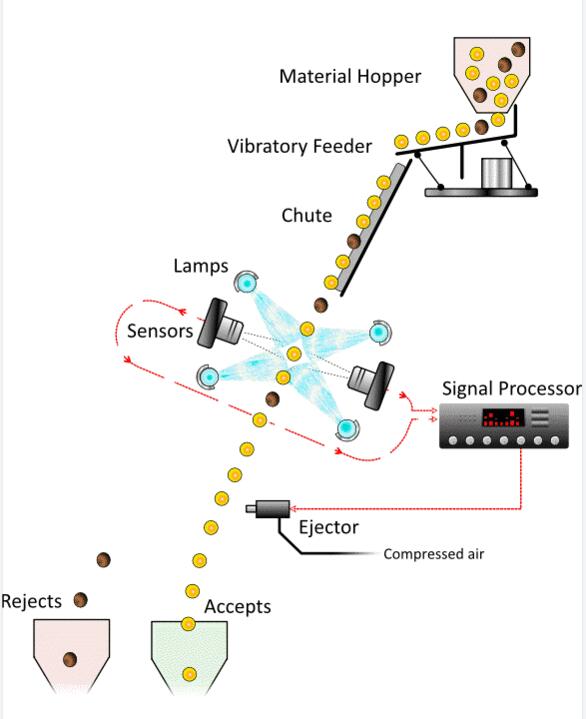

Color Sorter Machine Working Principle
The nuts color sorter machine works on the principle of harnessing the power of sensors and advanced image processing technology to identify and sort nuts based on their individual color variations. Here's how it works:
1.Dumping: The nuts are fed into the machine through a chute and dumped onto a vibrating conveyor belt.
2.Inspection: The nuts move along the belt and pass under a high-speed digital camera that captures multiple images of each nut as it moves past.
3.Image Analysis: The images captured by the camera are analyzed by a powerful software algorithm that identifies any color variations present in the nuts.
4.Sorting: Once the color variations have been identified, the nuts are sorted based on their individual colors using a pneumatic ejection system.
5.Collection: The sorted nuts are collected into separate containers for further processing or packaging.
6.Overall, the nuts color sorter machine allows manufacturers to maintain consistent quality in their nut products by accurately and efficiently removing defective or discolored nuts from the production line.
4 Chutes Nuts Color Sorter Machine Features
1.High Sorting Accuracy: The nuts color sorter machine adopts advanced image processing technology and high-resolution CCD camera to accurately remove defective nuts, such as moldy, broken, discolored, and other foreign substances.
2.Fast Processing Speed: With a sorting speed of up to 3 tons per hour, the nuts color sorter machine can efficiently sort large quantities of nuts in a short time, improving production efficiency.
3.Easy to Operate: The nuts color sorting machine is easy to set up and operate, with user-friendly interfaces and intuitive controls.
4.Durable Design: The machine is made of high-quality materials, ensuring durability and resistance to wear and tear, with a long service life.
5.Low Energy Consumption: The nuts color sorter machine consumes less energy than traditional sorting methods, making it an environmentally friendly and cost-effective solution.
6.Wide Range of Applications: The nuts color sorter machine can be used to sort a wide range of nuts, including walnuts, almonds, hazelnuts, pistachios, and others.
7.Versatility: The machine can sort nuts according to shape, size, and color, making it ideal for various applications.
8.High Capacity: The nuts color sorter machine can handle large volumes of nuts and sort them accurately, reducing processing times and increasing efficiency.

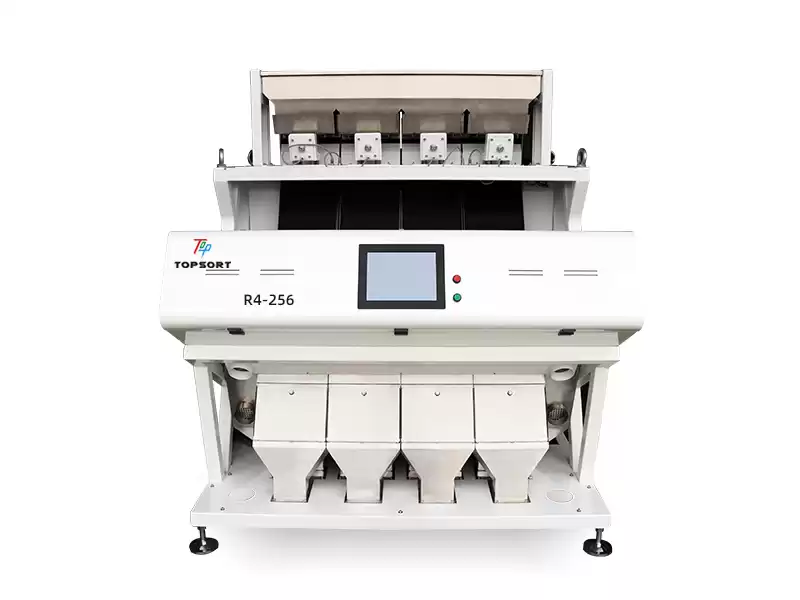

4 Chutes Nuts Color Sorter Machine Technical Parameters
| Model |
R4-256 |
| Channles |
256 |
| Power |
2.4kw |
| Weight |
650kgs |
| Dimensions |
1986*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
2000-3000kgs/h |
| Air consumption |
<4.0m3/min |
| Air pressure |
0.6-0.8Mpa |
Superb Nuts Sorting Sulotions
Our Color Sorting Machine Core Advantages
Sucessful Cases
Why Choose TOPSORT Color Sorter
Top technology
Adopt high-speed FPGA digital image processing technology, faster detection speed, higher recognition rate and high sorting accuracy.we have CCD color sorter and infrared color sorter for different sorting requests.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
A wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

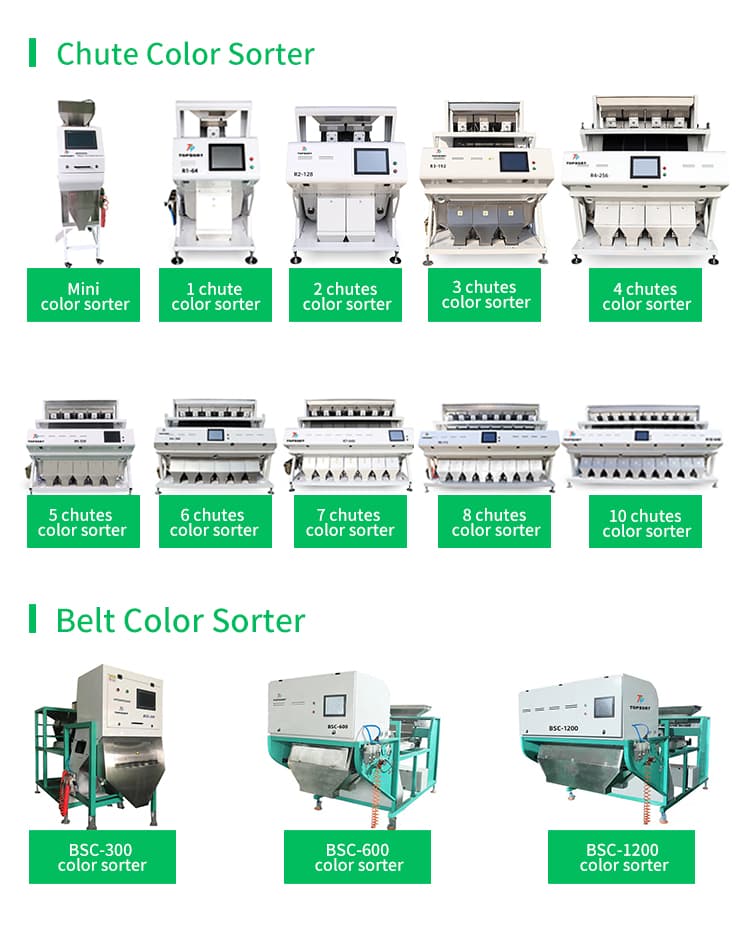

More models you can choose
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
