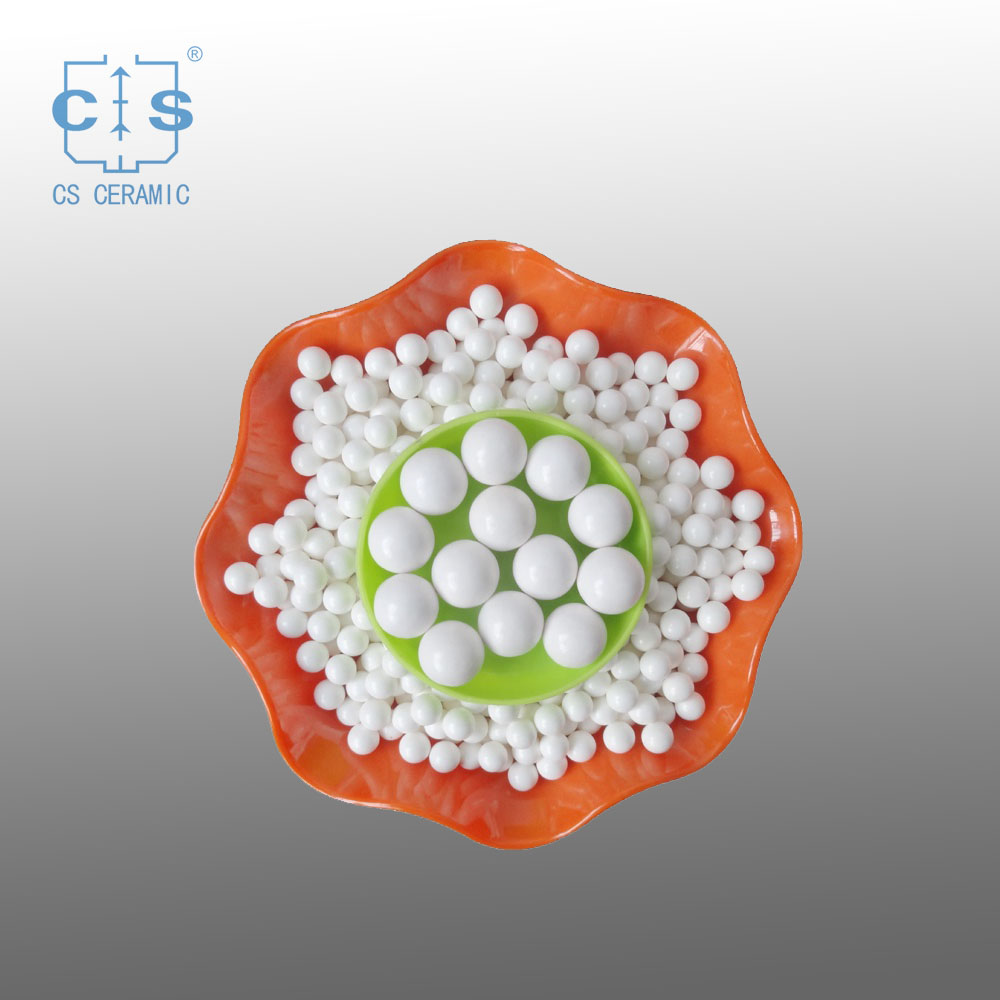

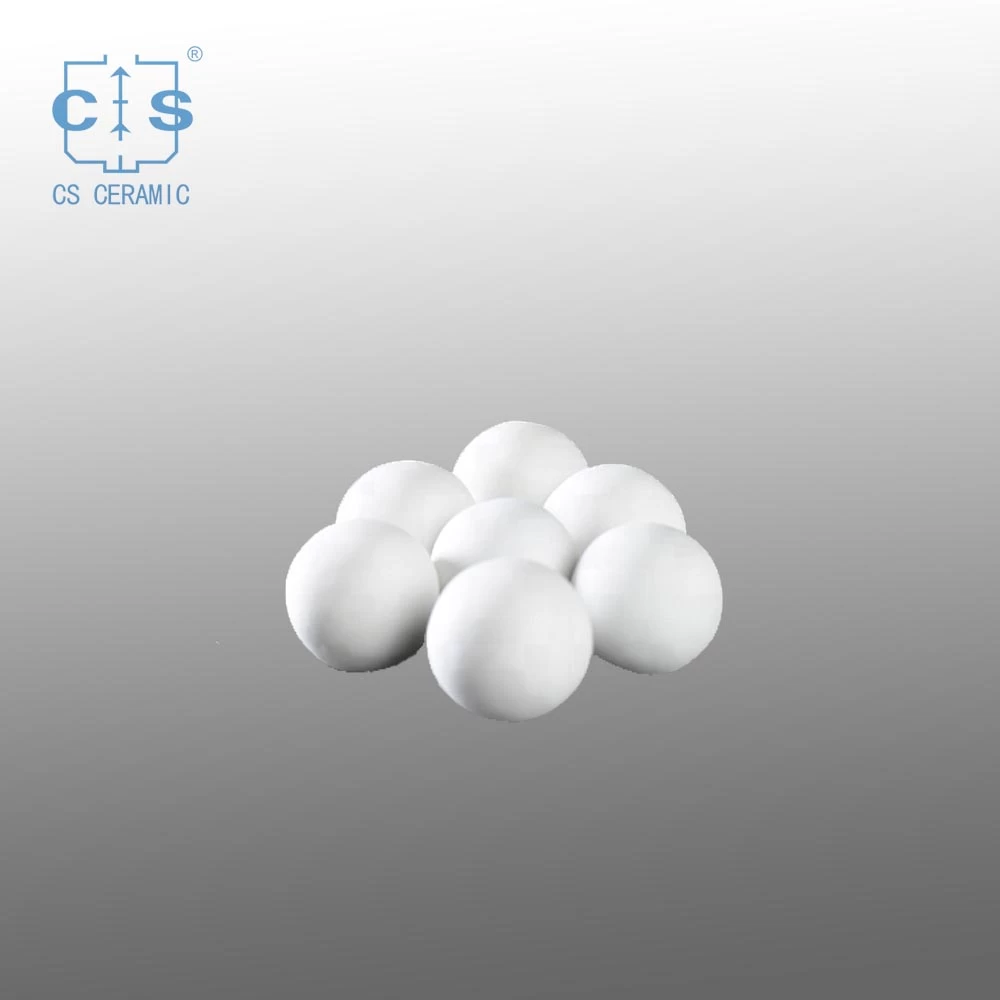

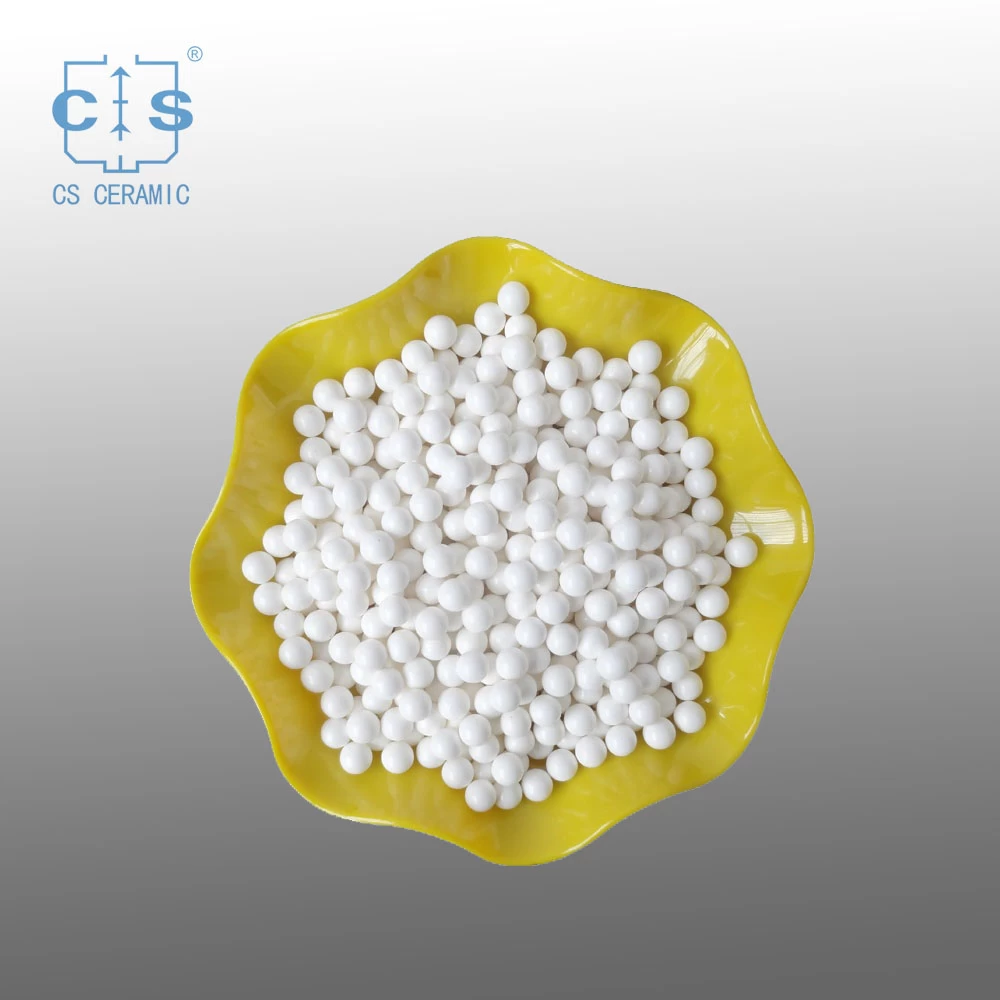

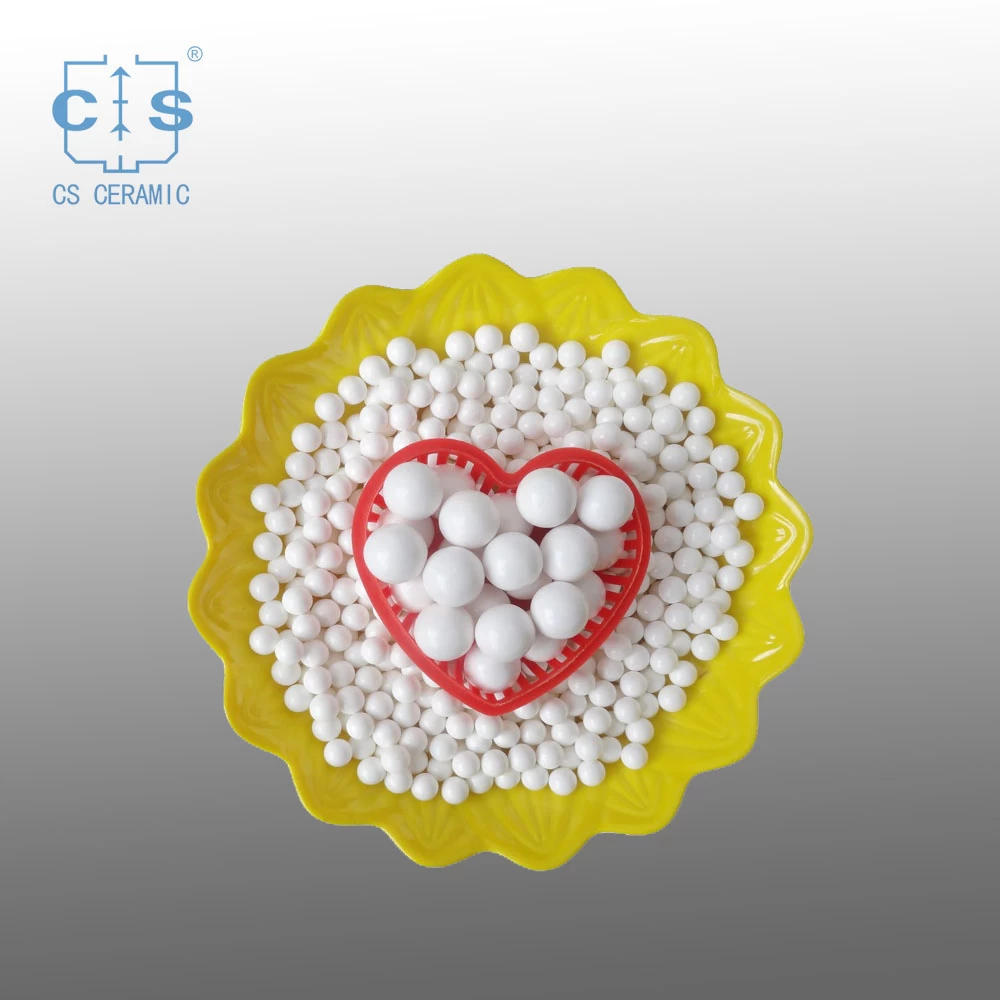

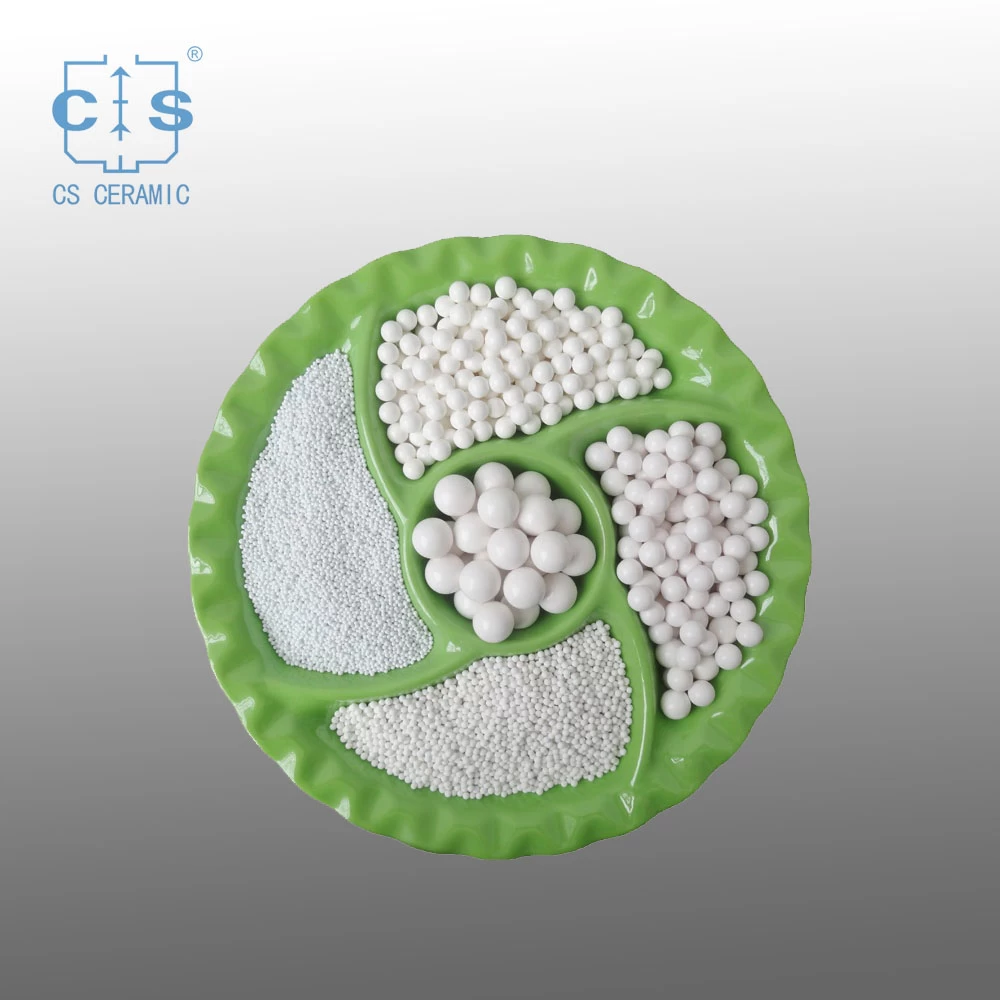

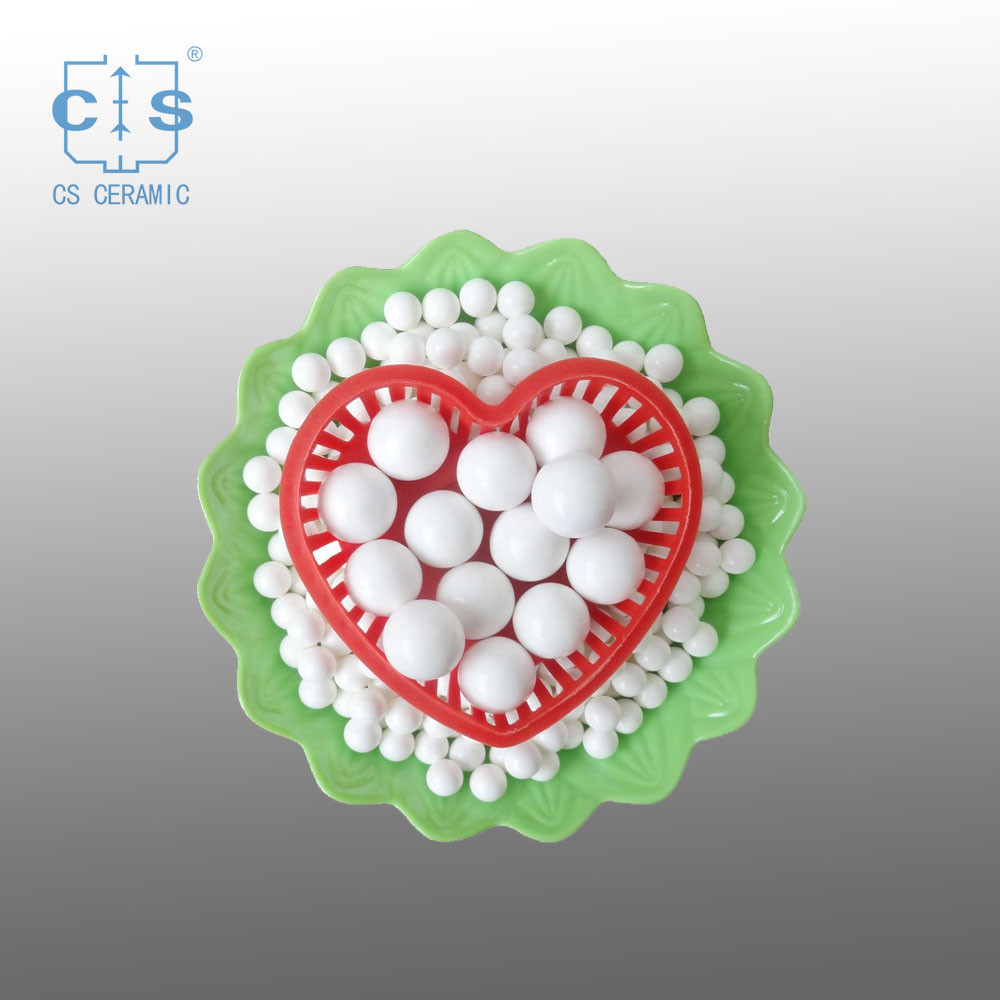

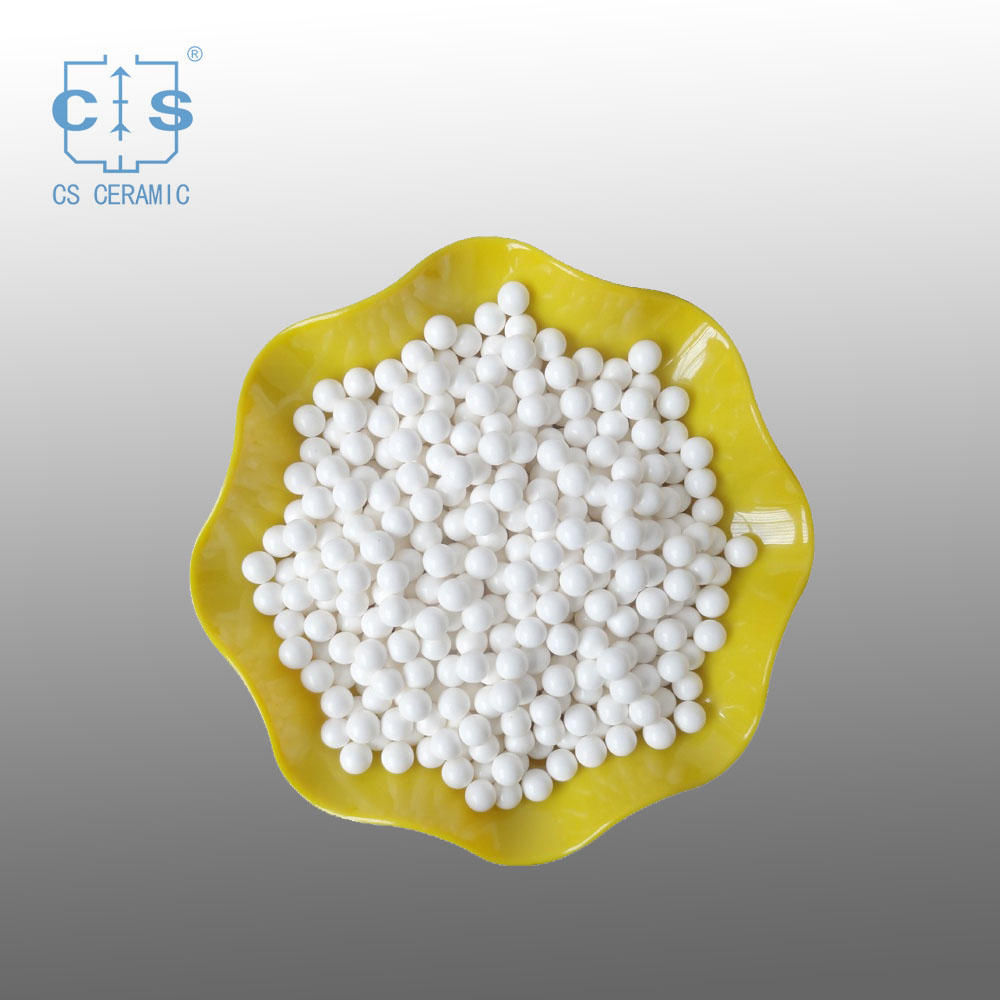

Product Item: 99% Inert Alumina Ceramic Ball -catalyst support media
Application
Raw material of 99% High Purity Alumina Ceramic Ball (Catalyst Support Media) is alumina powder, in which with low silicon content. With high purity and strength, it can work at extremely high temperature environment, so it is used in leaching reaction still of silica cover downstream equipment and dirty or poisoned catalyst carrier and available for various kinds of catalyst. In filed of petroleum, chemical, fertilizer, gas and environmental protection industries, it’s widely used as catalyst in the reactor to cover support material or tower packing. With high temperature and pressure resistance, and low water absorption, its chemical performance is quite stable, and can resist erosion of acid, alkali and other organic solvents, also can withstand temperature changes. It’s also widely used to increase gas or liquid distribution points, support and protection intensity of low activity catalyst.
Size &Crush Strength of 99%AL2O3 Inert Alumina Ceramic Ball
|
Item No.
|
Size
|
Crush strength
|
Tolerance
|
|
kg/particle
|
KN/particle
|
|
CS-YM-23
|
1/8" (3mm)
|
>203
|
>2
|
± 1.0
|
|
CS-YM-24
|
1/4" (6mm)
|
>459
|
>4.6
|
± 1.0
|
|
CS-YM-25
|
3/8''(10mm)
|
>564
|
>1.25
|
± 1.5
|
|
CS-YM-26
|
1/2" (13mm)
|
>877
|
>8.7
|
± 1.5
|
|
CS-YM-27
|
3/4" (19mm)
|
>1220
|
>12
|
± 2
|
|
CS-YM-28
|
1" (25mm)
|
>1630
|
>16
|
± 2
|
|
CS-YM-29
|
1-1/2"(38mm)
|
>2340
|
>23
|
± 2
|
|
CS-YM-30
|
2" (50mm)
|
>3460
|
>34
|
± 2.5
|
Chemical Composition of 99%AL2O3 Inert Alumina Ceramic Ball
|
Al2O3
|
Fe2O3
|
MgO
|
SiO2
|
Na2O
|
TiO2
|
|
>99%
|
<0.1%
|
<0.5%
|
<0.2%
|
<0.05%
|
<0.05%
|
Physical Properties of 99%AL2O3 Inert Alumina Ceramic Ball
|
Item
|
Value
|
|
Water absorption (%)
|
<1
|
|
Packing density (g/cm3)
|
1.9-2.2
|
|
Specific gravity (g/cm3)
|
>3.6
|
|
Operation temp.(max) (℃)
|
1650
|
|
Apparent porosity (%)
|
<1
|
|
Moh's hardness (scale)
|
>9
|
|
Acid resistance (%)
|
>99.6
|
|
Alkali resistance (%)
|
>85
|
Packing
A. Steel Drum packing
|
1) 250kg per steel drum;
|
|
2) Four steel drums in one pallet;
|
|
3) Drum with pallet size: 75CM*75CM*65CM
|
B. Plywood Box packing
|
1) 40 cartons/woven bag in one plywood box;
|
|
2) Plywood box size:80CM*65CM*80CM
|
C. Recommended to use 20"FT container, Maximum loading capacity of 24 tons
D. 20"FT container loading of 24 tons Total: 24 Plywood Box or Drum
Shipping:We do international shipping for clients.
Special offer:Most of our alumina balls are produced to order, please send accurate technical indicators and physical index,include water absorption,density ,application and so on .Wait for your email !
