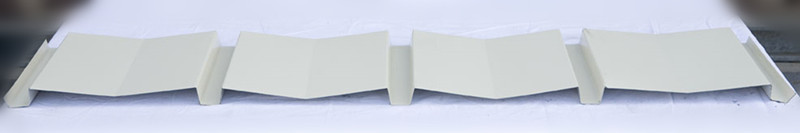

992 Lap Type Wall Panel Corrugated Steel Wall Sheets
Product Parameters:
|
Product Name
|
992 Lap Type Wall Panel Corrugated Steel Wall Sheets
|
|
Profiled Steel Sheets Type
|
YX25-248-992
|
|
Effective Width
|
992mm
|
|
Feeding Width
|
1200mm
|
|
Crest Height
|
25mm
|
|
Panel Thickness
|
0.5-0.8mm
|
|
Section Inertia
|
7.1-12.4cm⁴/m
|
|
Section Resistance
|
3.1-7.3cm³/m
|
Product Advantages:
1.Beautiful cross section and wave distance, very decorative effect.
2.It is directly connected to the substructure by screws and has strong wind resistance. Semi-concealed, not easy to expose nails.
3.The two rib joints are designed to seal the groove, and the cavity blocks the capillary water and has good waterproof performance.
4.The unique wave pitch provides excellent mechanical properties and layered effects of light and shadow.
