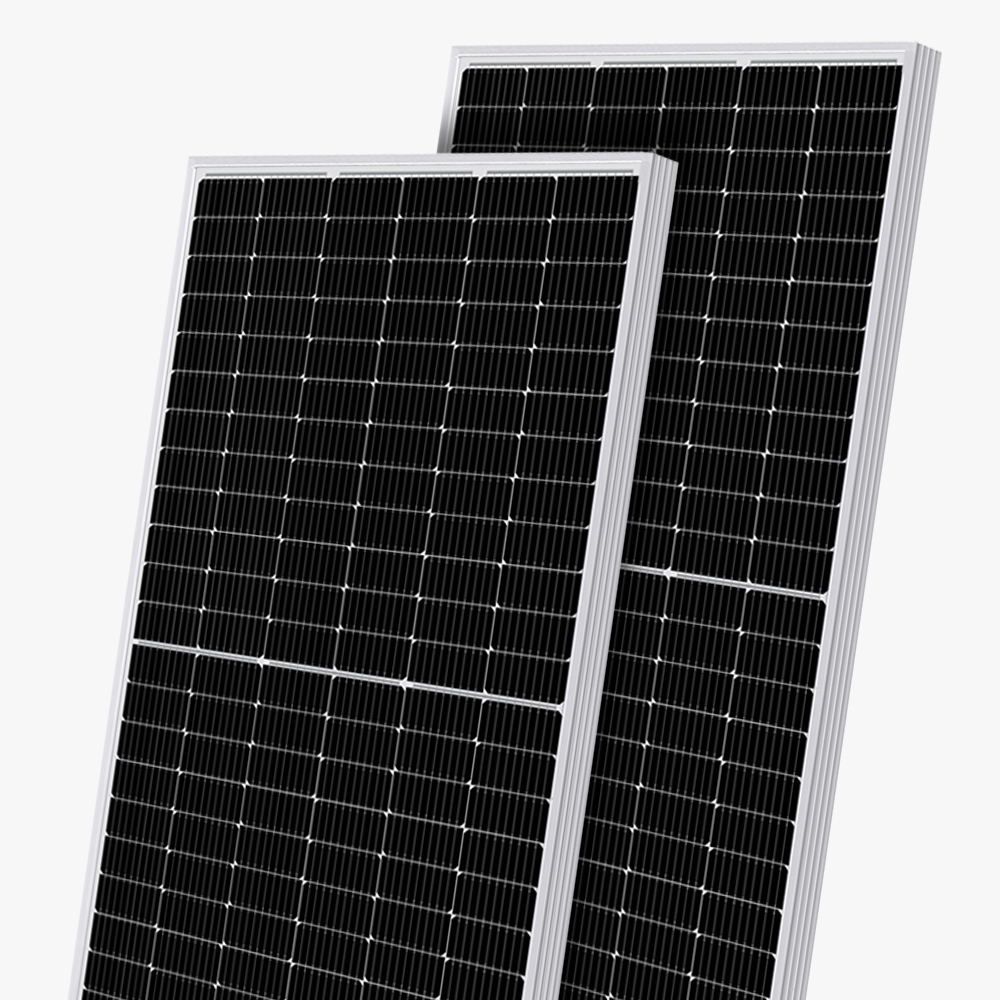

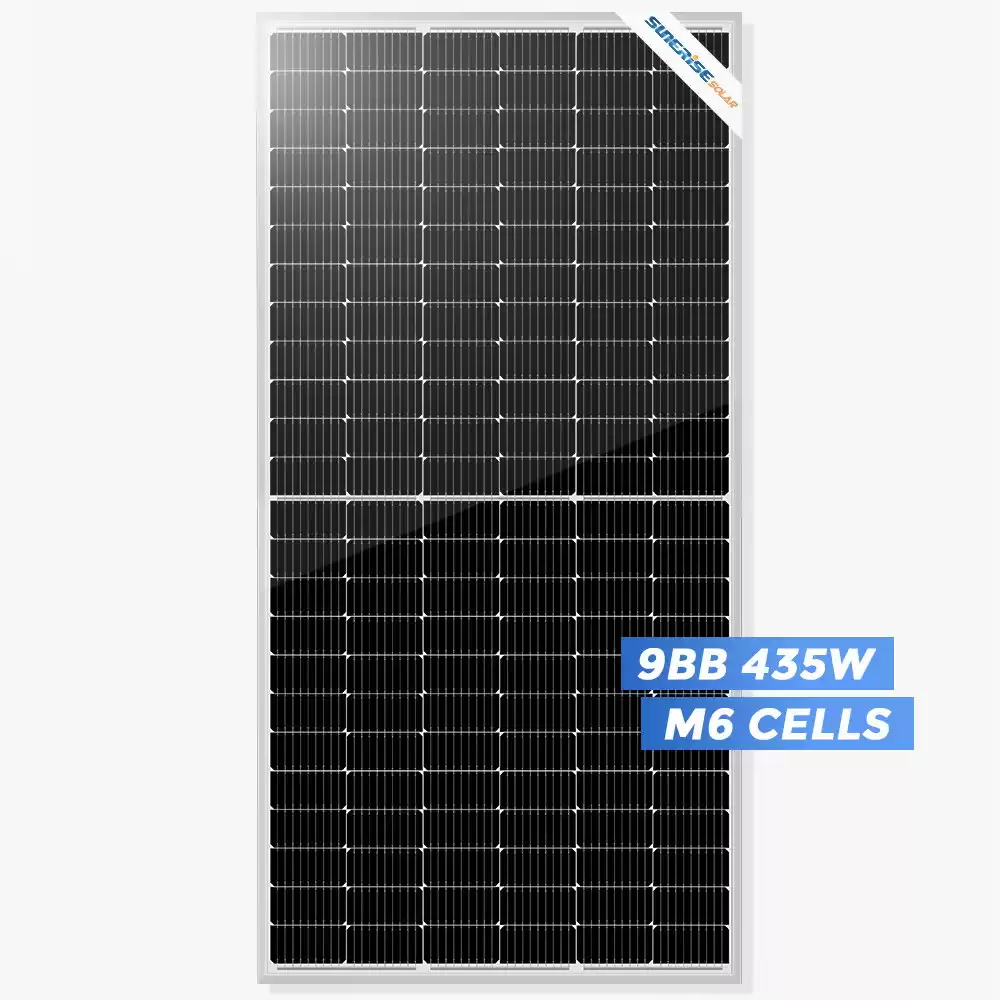

9BB PERC Mono 435 Watt Solar Panel with High Efficiency
This 144cells mono solar panel has a rated power of up to 435wp, a conversion efficiency of up to 20.01%, and a 30-year product and performance warranty. Sunerise 435 watt solar panel arrays are being widely used in some industrial and commercial, residential and agricultural projects.
JC (430~460)-144M Solar Panel Features
-
Excellent module efficiency up to 21.16%
-
IP68 junction box for long-term weather endurance
-
Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
-
Selected material and stringent quality system ensure PID free
-
Applicable to harsh environment of deserts, farmlands and seasides
-
Much lower risk of hot spot
|
Electrical Characteristics(STC)
|
|
Module
|
JC(430~460)-144M
|
|
Module Type
|
JC430M
|
JC435M
|
JC440M
|
JC445M
|
JC450M
|
JC455M
|
JC460M
|
|
Maximum Power (Pmax)
|
430W
|
435W
|
440W
|
445W
|
450W
|
455W
|
460W
|
|
Maximum Power Voltage (Vmp)
|
41.51V
|
41.66V
|
41.81V
|
41.96V
|
42.11V
|
42.26V
|
42.41V
|
|
Maximum Power Current (Imp)
|
10.36A
|
10.44A
|
10.52A
|
10.61A
|
10.69A
|
10.77A
|
10.85A
|
|
Open-circuit Voltage (Voc)
|
48.70V
|
48.85V
|
49.00V
|
49.15V
|
49.30V
|
49.45V
|
49.60V
|
|
Short-circuit Current (Isc)
|
11.23A
|
11.26A
|
11.29A
|
11.32A
|
11.35A
|
11.38A
|
11.41A
|
|
Module Efficiency (%)
|
19.78%
|
20.01%
|
20.24%
|
20.47%
|
20.70%
|
20.93%
|
21.16%
|
|
Power Tolerance
|
0~+5W
|
|
Temperature Coeffcient of Isc
|
+0.05%/℃
|
|
Temperature Coeffcient of Voc
|
-0.31%/℃
|
|
Temperature Coeffcient of Pmax
|
-0.35%/℃
|
