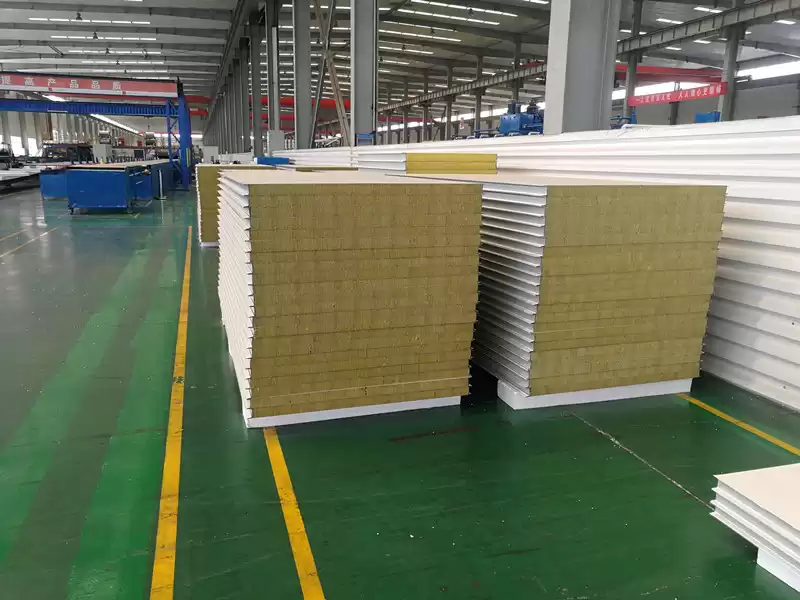

A Class Fireproof Rock Wool Sandwich Panel For Metal Wall Cladding System
Product Introduction
In order to meet the higher fire-proof requirement of buildings, Wiskind has launched the high-quality rock wool sandwich composite panel. The product uses high-quality water-proof rock wool as the core material. Through the super long precision double-track curing, the product is excellent in terms of fire prevention, thermal insulation, noise reduction and environmental protection.
Product Parameters
|
Brand of steel plates
|
Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.
|
|
Painting of steel plates
|
PVDF, SMP, HDP, PE; The top painting should be above 25μm.
|
|
Galvanized layer of steel plates
|
Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.
|
|
Thickness of steel plates
|
0.14mm-0.6mm.
|
|
Thickness of core
|
50mm/75mm/100mm/120mm/150mm.
|
|
Density of core
|
90/100/120kg/m³
|
|
Effective width
|
950/1150mm
|
|
Panel Length
|
According to customers’ request
|
Performance Description
1.Fire Prevention: High-quality water-proof rock wool and class-A fire-proof performance.
2.Thermal Insulation: The low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
3.Sound Insulation: The sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.
4.Solid: The panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance. It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.
5.Beautiful Design: Bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.
6.Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.
