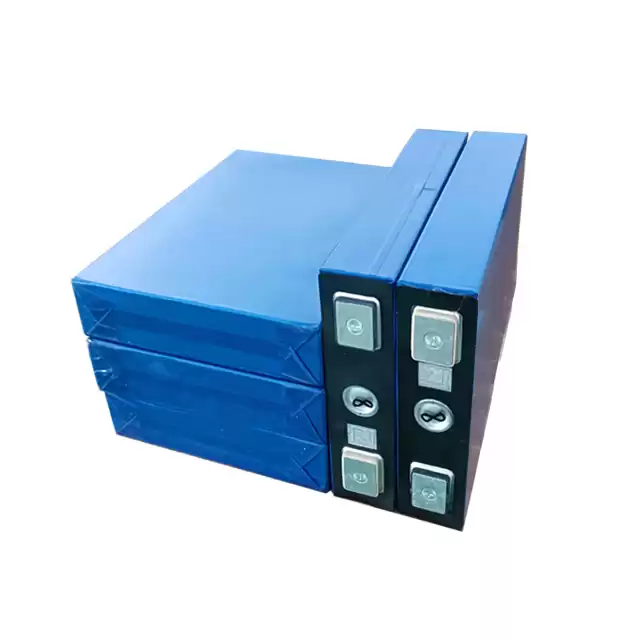

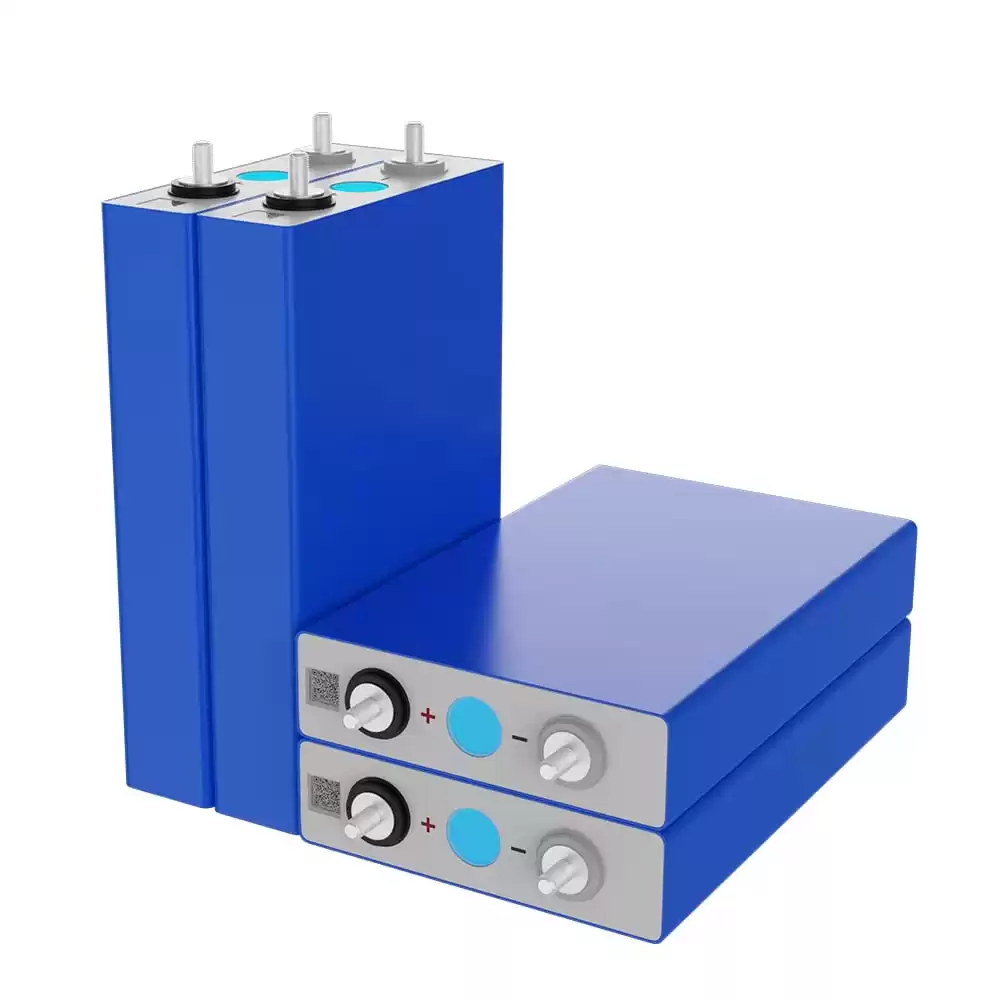

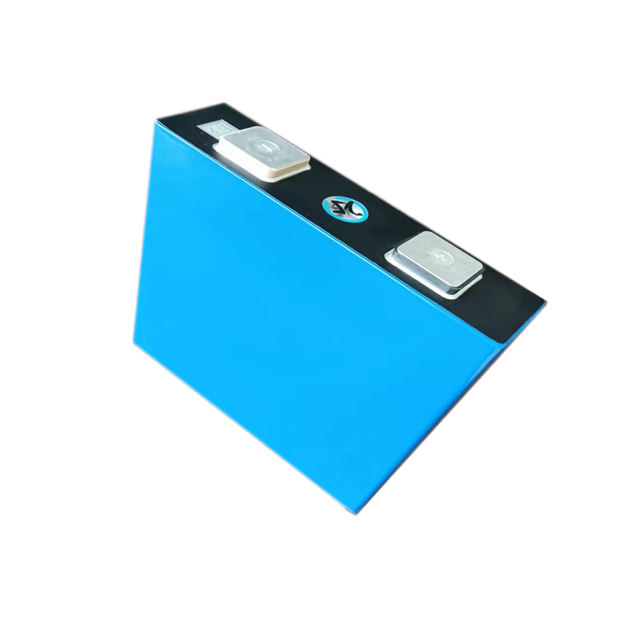

A Grade 3.2V100AH High-Ratio Discharge Lithium Battery Cell for Superior Performance in Various Applications

Lithium batteries are made of A Grade material, which is the most important component of lithium battery packs. Equipped with exclusive patented technology, the battery is more stable and has a service life of 5-8 years. Support five-year warranty service and free BMS(battery management system) service. Our cell models are as follows:



3.2V30AH/3.2V50AH/3.2V 85AH/3.2V100AH/3.2V135AH/3.2V 150AH/3.2V200AH/3.2V230AH/3.2V280AH3.2V320AH

Facebook Twitter Pinterest LinkedIn 分享

Professional lithium battery manufacturer in China for more than 10 years,rich exporting experience,our models exported to more than 15 Countries in the world ,enjoy good reputation ! Our products inlcudes:forklift lithium battery,AGV battery, RV battery and golf carts li ion battery and so on,customized battery available

Quick details

Common Cell Specifications 3.2V100AH     remarks
  Item Specification   0.5C standard discharge
1 nomial capacity 100ah
2 delivery capacity ≥100ah   mean operation volt
3 nominal volt 3.2V
4 charge volt 2.5-3.65V
5 standard charge current 0.5C    0.5C constant current,3.65V constant
voltage charge to 3.65V,continue
charging till current decline to ≤0.05C
6 standard discharge current 0.5C
7 max discharge current 1C
8 max pulse discharge current 2C   30S
9 cell internal impedance ≤0.8MΩ    1kHz；2%SOC
10 operation temperature and relative humidity  charge 0-50℃
60±25%R.H		 Charge at a very low temperature such
as blew 0℃,will be get a lower capacity
and reduce cycle life of the  battery
discharge “-20-55℃”
60±25%R.H
11 storage temperature for long time   “-20-55℃”
60±25%R.H		 Do not storage exceed half year. Must
charge once when storage for half year. Must charge the battery which with
protect circuit when storage for three
mouths
