Model
|

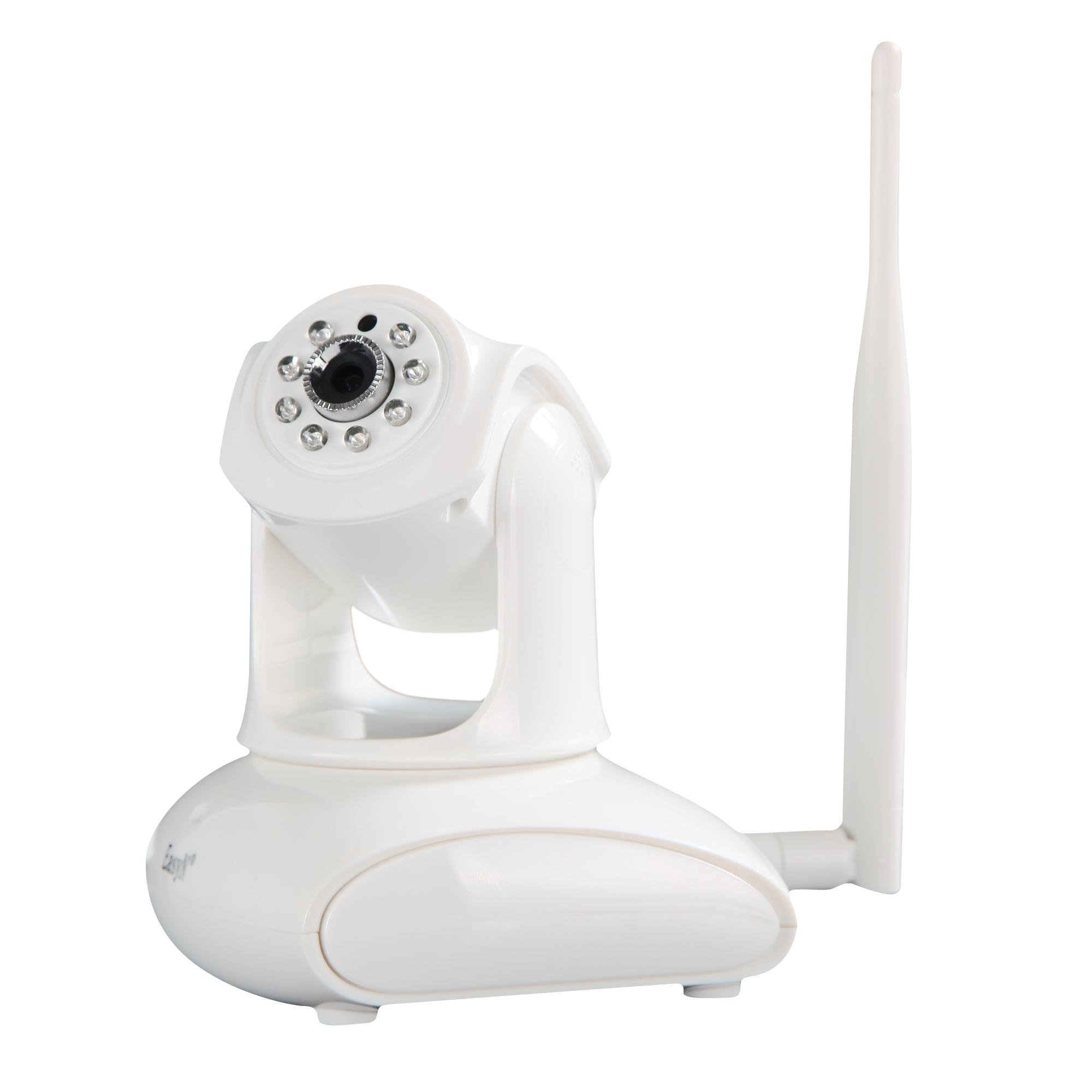

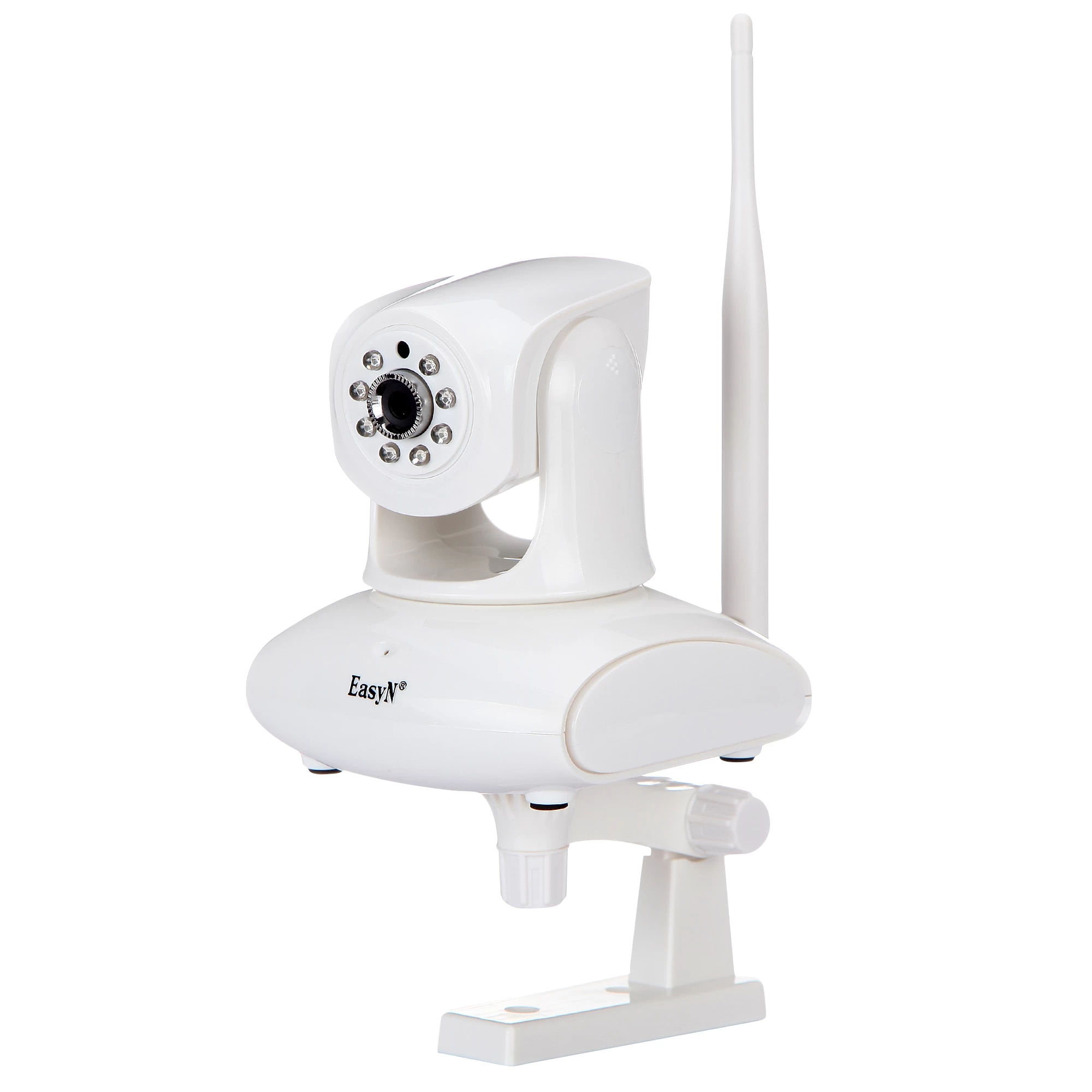

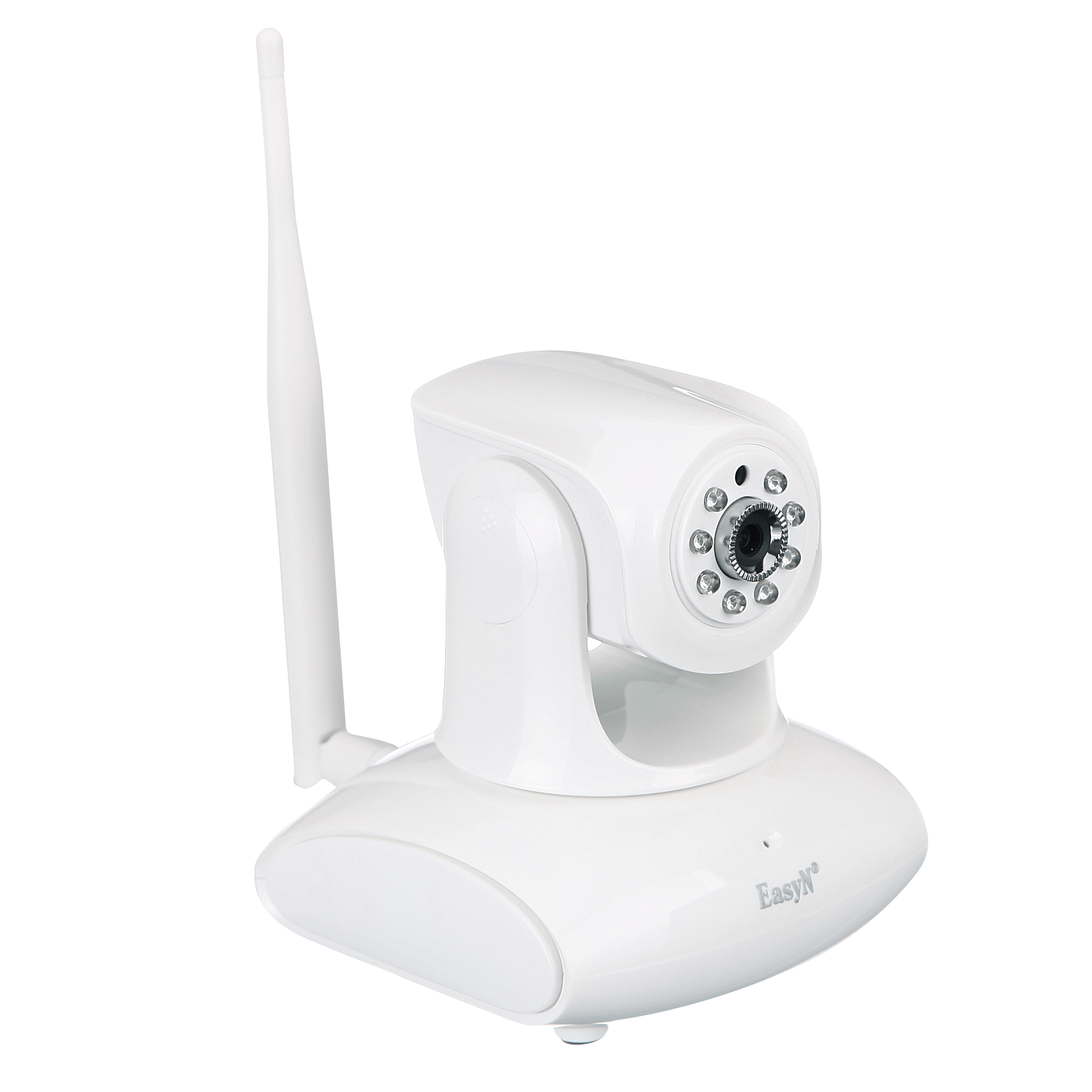

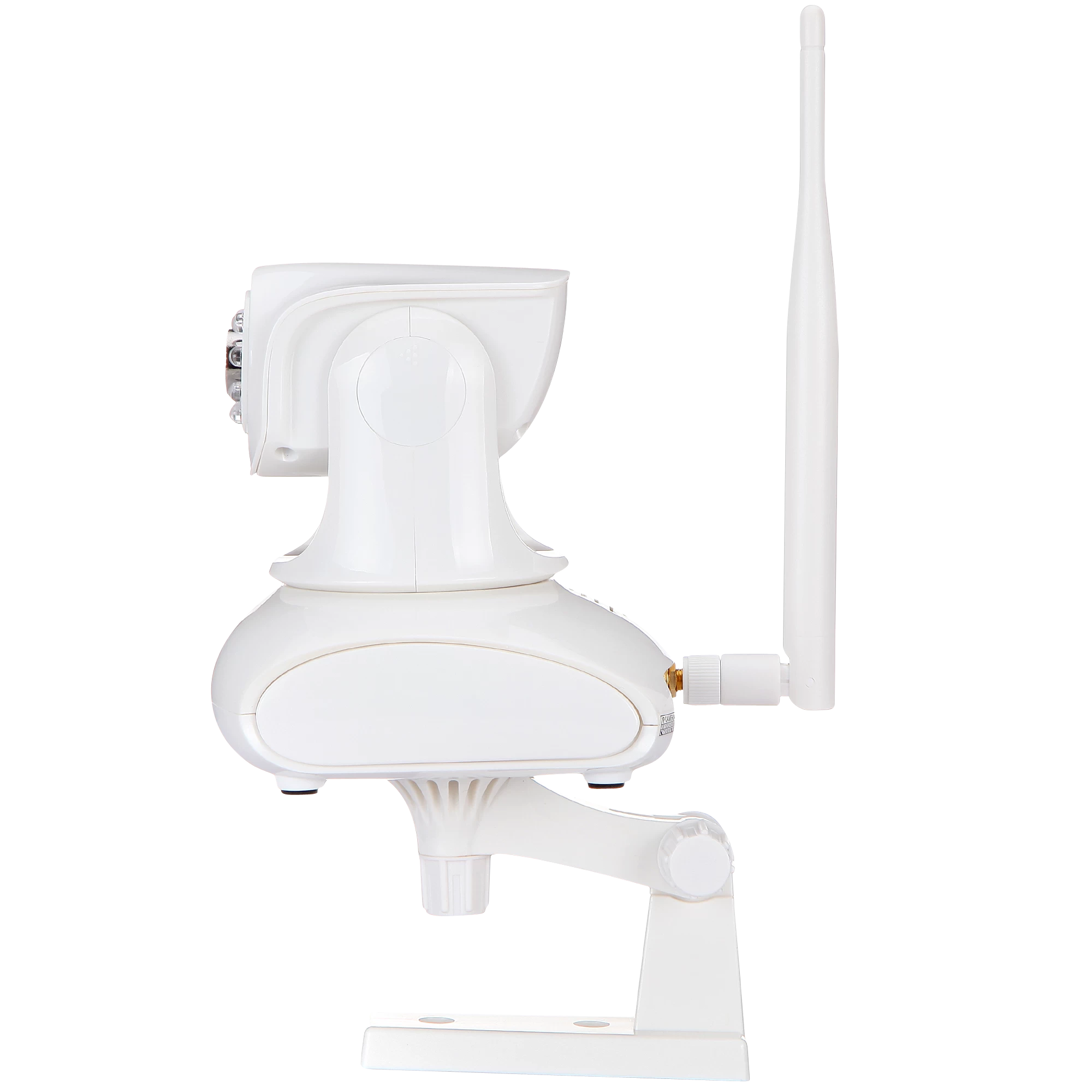

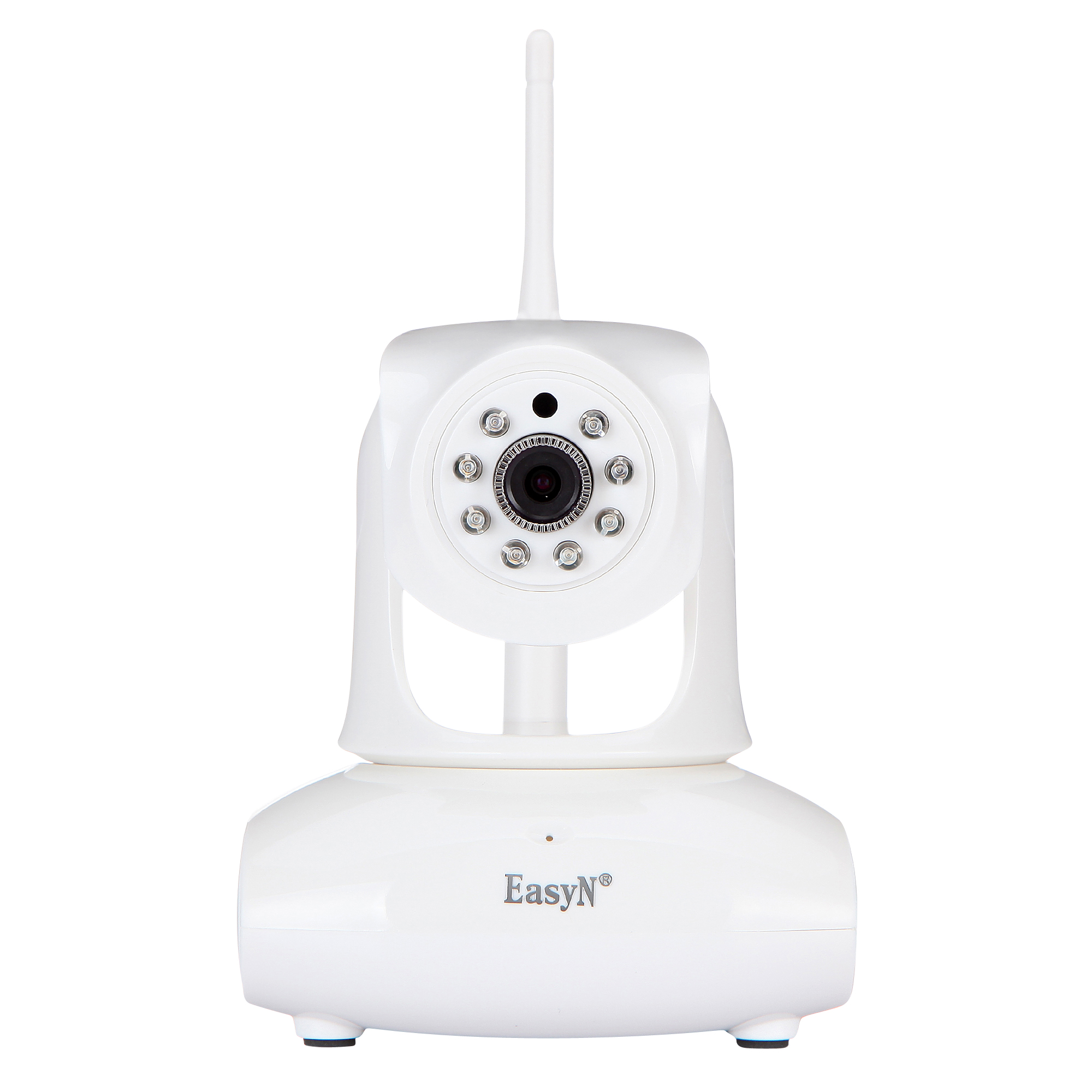

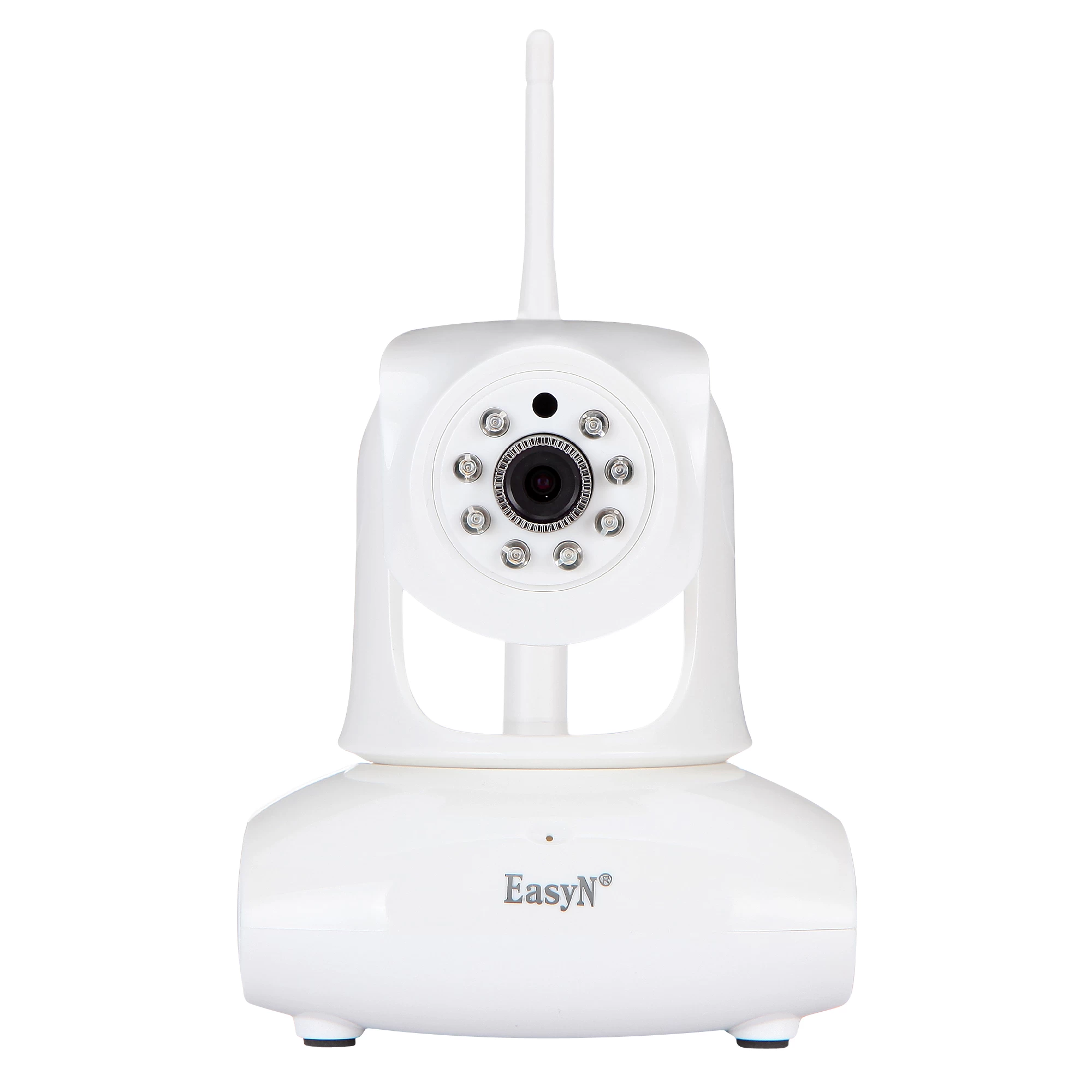

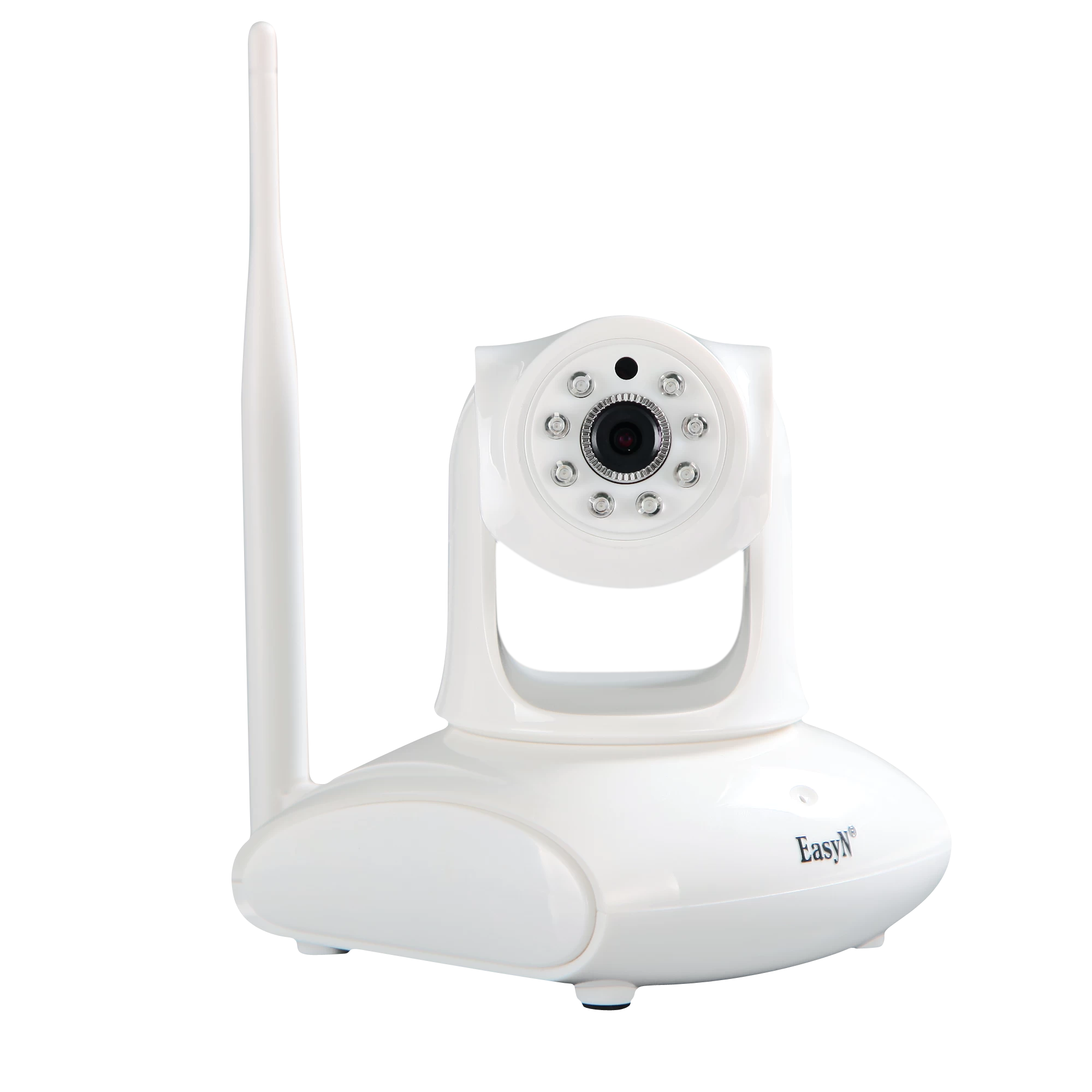

GN-A147W wireless drone camera
|
|
Features
|
Connection
|
Support WPS connection
|
|
|
|
P2P
|
Plug and play, no port forwarding
|
|
DDNS
|
Free DDNS service embeded like demo.easyn.hk
|
|
Mobile view
|

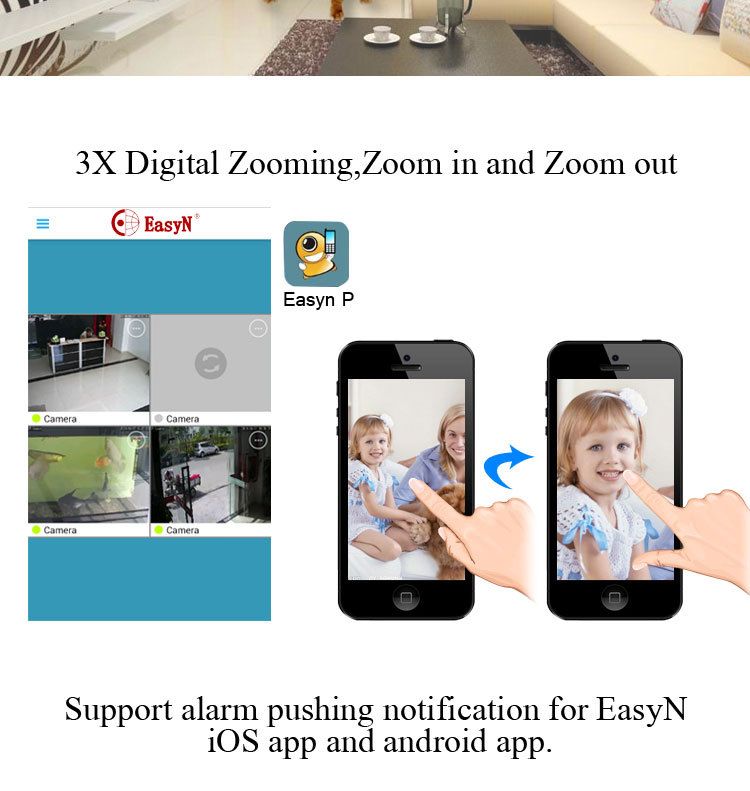

Compatible with EasyN iOS and Android App
|
|
PC
|
Compatible with EasyN Multi-window software
|
|
Local memory
|
Support 64G (Max) Micro SD card,24 hours continuous recording
|
|
Onvif
|
Support Onvif 2.1
|
|
Network
|
Protocol
|
HTTP, UDP, SMTP, FTP, DHCP, DNS, NTP, UPnP
|
|
Network
|

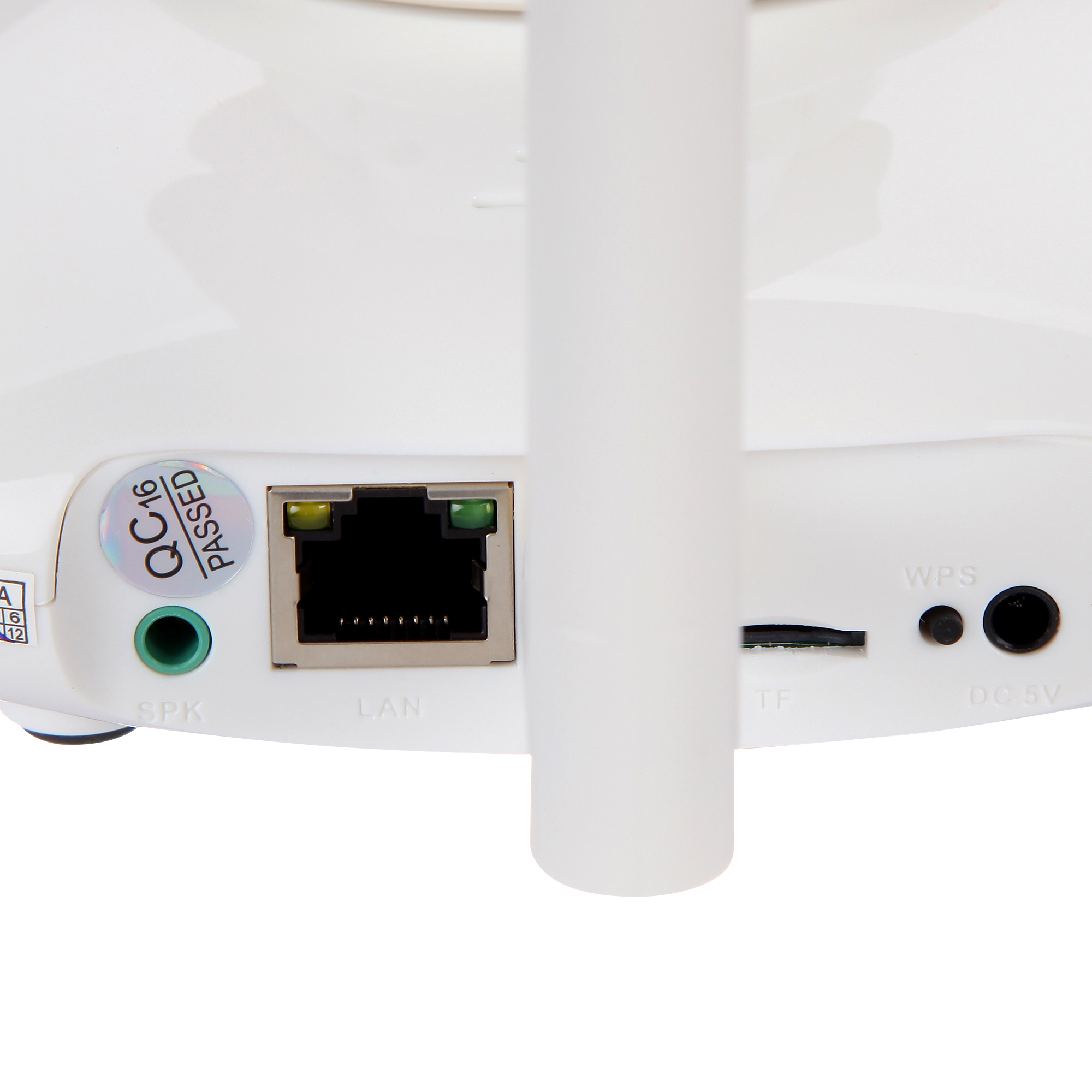

RJ45 10/100MB self-adaptable Ethernet slot
|
|
Wireless
|
WIFI(IEEE 802.11b/g/n)
|
|
Online visitor
|
Support 4 visitors online for the first stream
Support 4 visitors online for the second stream
Support 4 visitors online for the third stream <p Support 12 visitors to the max online at the samt time
|
|
IP mode
|
Dynamic IP address, Static IP address
|
|
Lens
|
Lens type
|
Glass Lens
|
|
Image sensor
|
1/4 CMOS
|
|
Pixel
|
1920*1080 640*352 320*176
|
|
Lens
|
4.8mm
|
|
Angle of View
|
90°
|
|
IR-CUT
|
Yes
|
|
Video
|
Compression format
|
H.264
|
|
Frame rate
|
50Hz: 1~25 fps, 60Hz: 1-30 fps
|
|
Image sensor
|
2.0 megapixel CMOS
|
|
Image adjustment
|
The hue, brightness, contrast, saturation, and sharpness are adjustable; support 3 times digital zooming
|
|
LUX
|
0.4LUX
|
|
SNR
|
>48dB
|
|
Audio
|
Compression format
|
G.726/G.711
|
|

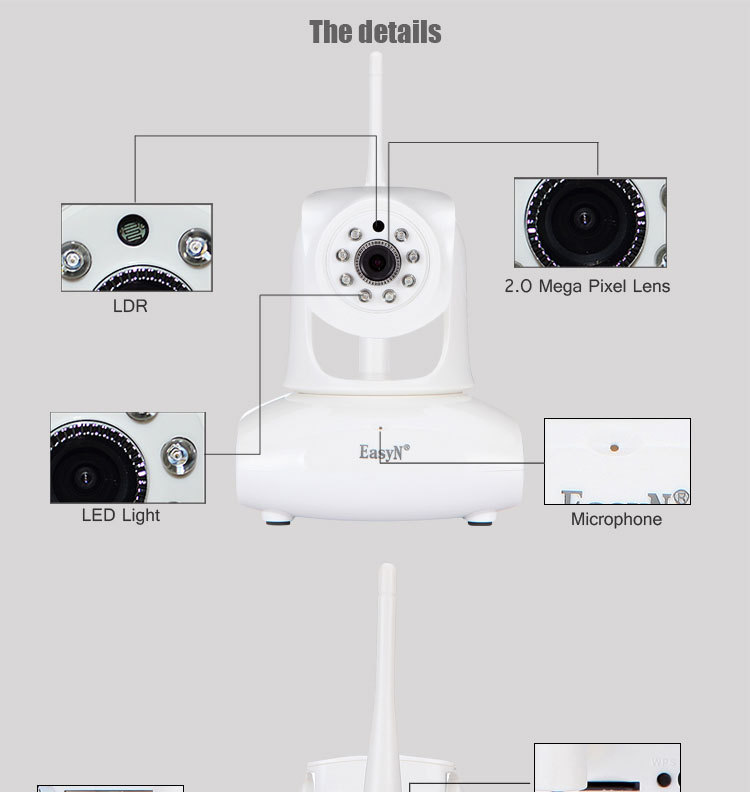

Built-in microphone
|
Yes
|
|
External microphone
|
Yes
|
|
Built-in speaker
|
Yes
|
|
External speaker
|
Yes
|
|
PTZ
|
Motor
|
Built-in motor control
|
|
Rotation angle
|

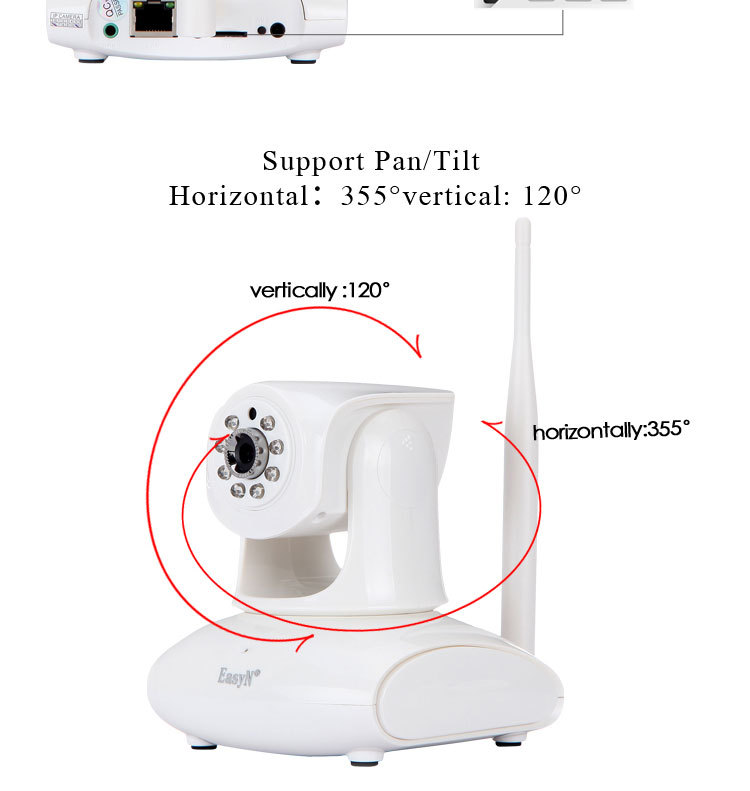

Horizontal:355°, vertical: 120°
|
|
Preset
|
8
|
|

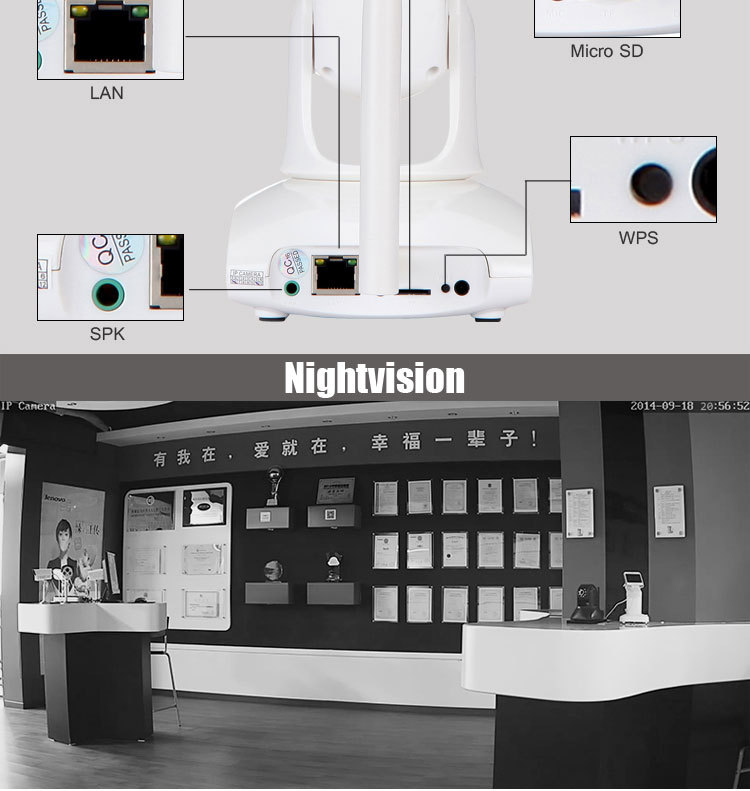

Night Vision
|
IR-CUT
|
Auto-switch automatically, without color cast. The IR light can be turned off manually
|
|

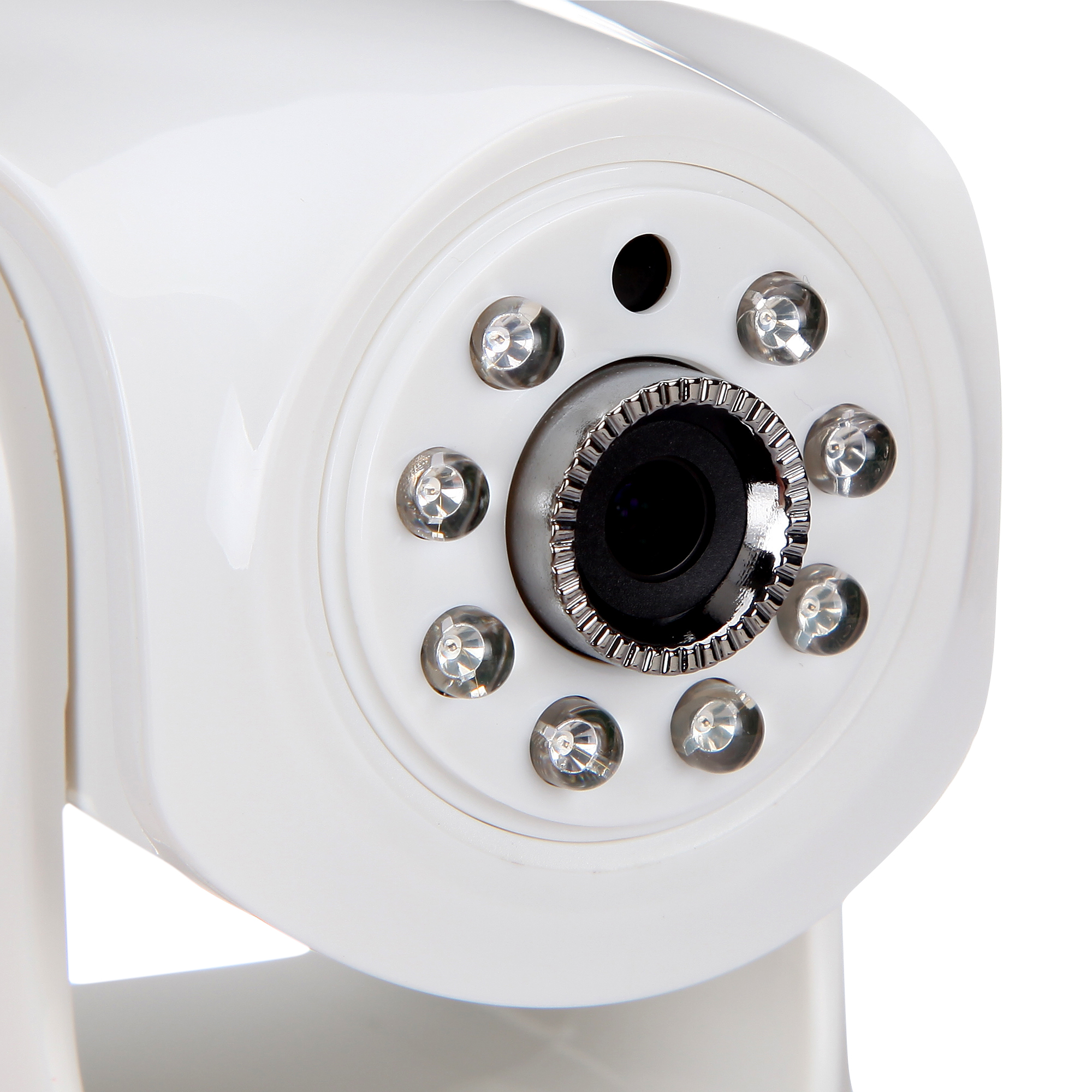

Night vision
|
9 Φ5 LED lights, IR distance:8m
|
|
Alarm
|
Alarm
|
Motion detection
|
|
Detection area
|
Support 4 detection areas
|
|
Alarm notification
|
Email notification, FTP upload alarm record (when insert Micro SD card)
|
|
Physical property
|
Shape material
|
Plastic(ABS)
|
|
Environment
|
Indoor
|
|
Power supply
|
DC5V 2A
|
|
Operating temperature
|
-5~+50°C
|
|
Operating humidity
|
10%~80%RH
|
|
Dimension
|
Item size:145x110x125mm (L*W*H)
|
|
|
Package size:170x170x170mm (L*W*H)
|
|
Weight
|
Item weight:330g
|
|
|
Package weight: 690g
|
|
Accessories
|

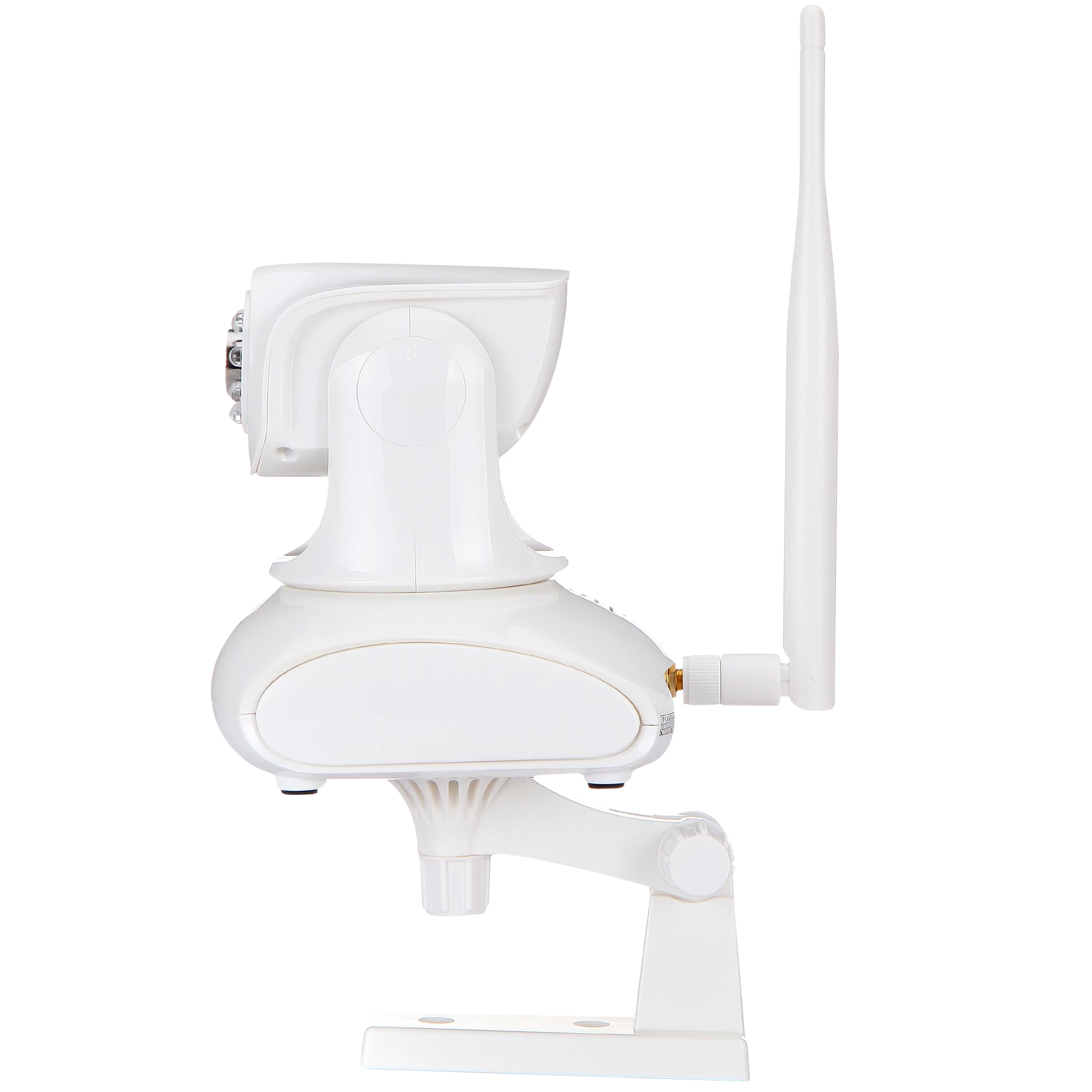

Power adapter, manual, screws, bracket
|
|
System
|
Operation system
|
Microsoft XP,Vista,Win7,Win8
|
|
Browser
|
Microsoft IE6 and above version; Mozilla Firefox; Google Chrome; Apple Safari.
|
|
Certification
|
Certificate
|
ISO 9001:2008, FCC, CE, RoHS
|
