AG22-Rain Tester
Application Of Rain
Tester

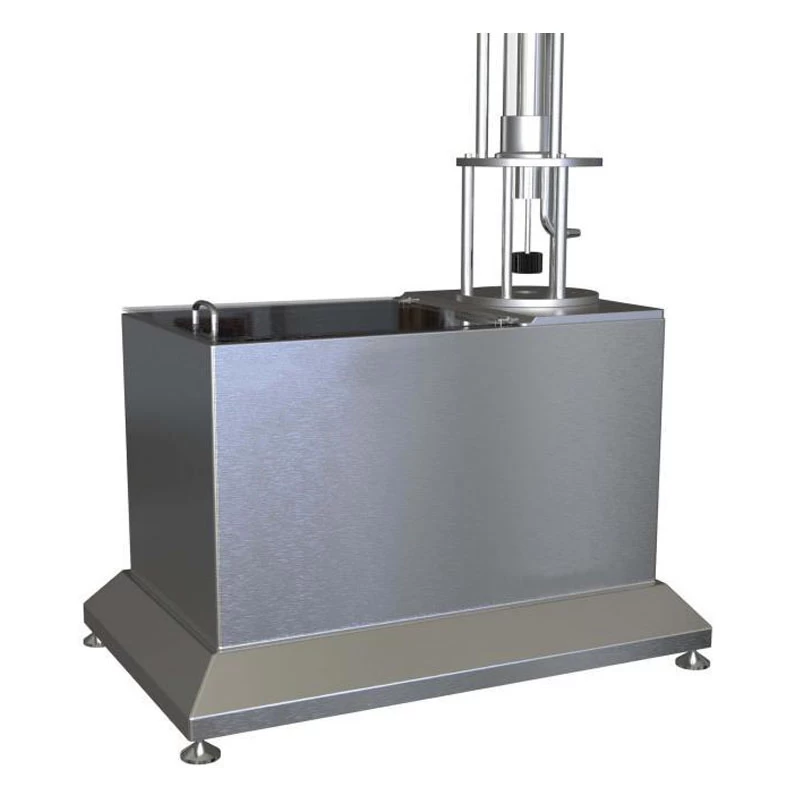

Rain Tester is used to determine the
penetration resistance of fabrics or composites at different intensities of
water impact. Simulated rain spray from horizontal direction to sample fabric
which vertical fixed in stainless steel tank.
Standards Of Rain Tester
AATCC
35, GB/T23321, ISO 22958.
Key Specification Of Rain Tester
|
Model
|
AG22 Rain Tester
|
|
Sample size
|
200×200mm
|
|
Size of water - absorbing paper
|
152×152mm
|
|
Sample clip width
|
152mm
|
|
Sample clip distance
|
165mm
|
|
Sample clip size
|
178×229mm
|
|
Water column adjustable value
|
A: 0.6m, B: 0.9m, C: 1.2m, D: 1.5m, E: 1.8m, F: 2.1m, G: 2.4m
|
|
nozzle hole
|
13pcs, Diameter: 0.99±0.013mm
|
|
Nozzle to sample distance
|
305mm
|
|
Dimension
|
520×785×2710mm
|
|
Weight
|
102kg
|
