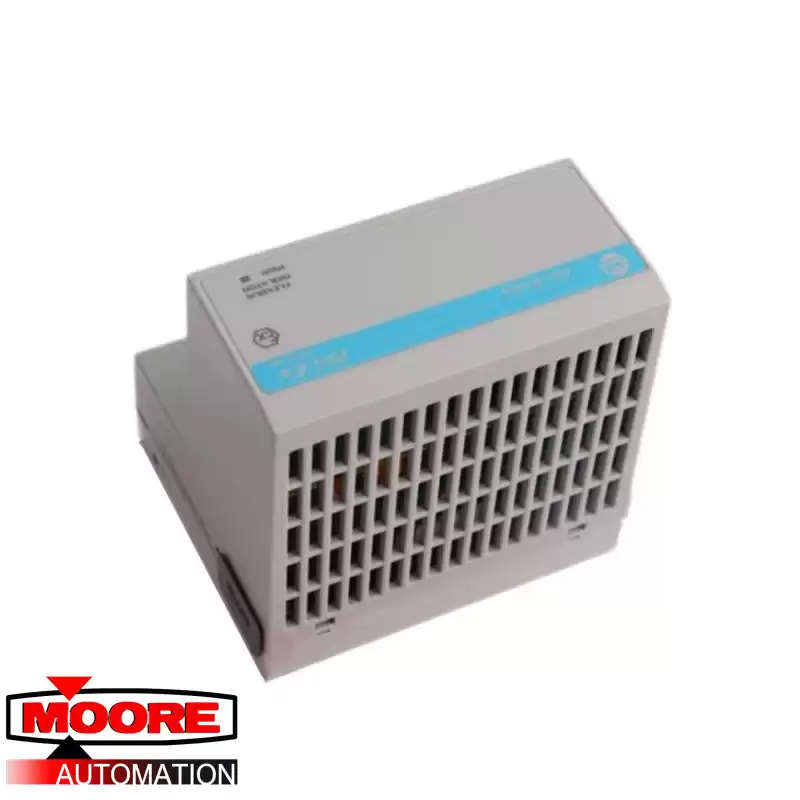

The 1305-BA09A-HA2 is PLC adjustable frequency AC drive delivers excellent speed control with an outstanding torque control output throughout the drives speed range. This AC drive which other technical personnel may refer to as a Variable Frequency Drive (VFD), Variable Speed Drive (VSD) or Adjustable Speed Drive (ASD) enables a AC induction motor to be controlled with modulating speed aside from the basic ON/OFF, FORWARD / REVERSE, JOG, LOCAL / REMOTE and AUTO / MANUAL control.
The PLC 1305-BA09A-HA2 drive is a 1305 series AC drive with 3-phase 380 to 460 Volts AC input voltage. This 1305 device seamlessly aligns with AC motors for enabling dynamic AC motor performance, and it increases the overall reliability of the whole system. The power rating of this AC drive is 5.0 Horsepower (4.0 kilowatts). The drive’s output current is 9.0 Amps at 380 Volts AC, 8.4 Amps at 415 Volts AC, and 7.6 Amps at 460 Volts AC. The 1305-BA09A-HA2 drive should be mounted on a metallic surface with at least 2 inches of space on all sides for proper air circulation an cooling of the unit. The approximate dimensions of the drive are 210 millimeters in width x 195 millimeters in height x 179 millimeters in depth. Its shipping weight is 4.2 kilograms (9.2 pounds). The PLC 1305-BA09A-HA2 drive is delivered in an IP 30 rated housing with a Human Interface Module (HIM) that has a digital up and down keys. Terminal blocks labeled as TB1 and TB2 provide the power and control terminal blocks, respectively. The maximum recommended AC input line fuse for this device is rated at 20 Amps. Unshielded motor cables are usually acceptable for the motor that is connected to the drive, but shielded cables are suggested in situations where sensitive circuits or devices are installed near the machinery that is driven by the DC motor. The maximum operating temperature of the 1305-BA09A-HA2 drive is 50 degrees Celsius (122 degrees Fahrenheit).
