Product Discription

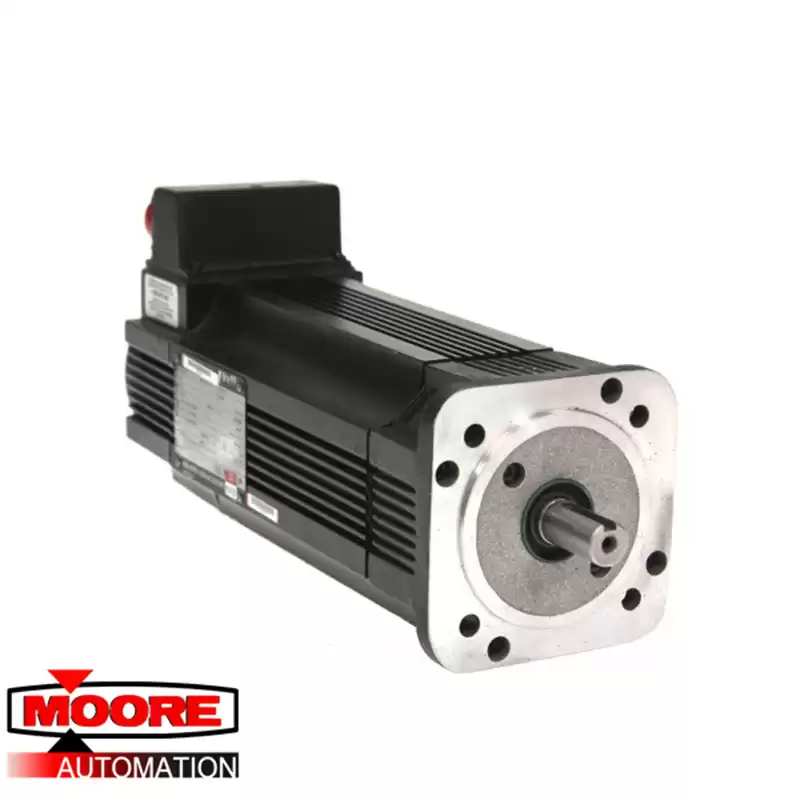

The Allen-Bradley 1326AB-B720E-S2L Torque Plus AC Servo Motor is a 3-phase brushless AC synchronous servo motor from the 1326AB high-performance servo motor series designed for the tough needs of most industrial motion control systems. The 1326AB-720E-S2L Servo Motor features a special flux permanent magnet rotor that offers higher servo response and a cost-effective servo performance within a specially engineered housing that increases torque rating and reduces the motor size. The 1326AB-720E-S2L Servo Motor is rated at 460 Volts AC voltage with an acceptable input voltage range of 380 Volts AC to 460 Volts AC. It has a total power output rating of 6 Kilowatts and 2500 RPM base rotor speed at 380 Volts AC. The 1326AB-720E-S2L Servo Motor and 3000 RPM (maximum) at 460 Volts AC. The 1326AB-720E-S2 Servo Motor has a torque rating of 31 Newton-meters with a peak value reaching up to 88.1 Newton-meters, and a continuous stall current rating of 18 Amps with a peak value of 50 Amps.
The 1326AB-720E-S2LS Servo Motor has a single-turn encoder that provides high-resolution absolute position feedback, and this encoder does not require a battery. It has a stack length of 20 millimeters and a total frame size of 150 millimeters. The 1326AB-720E-S2L Servo Motor comes with an IP 67 standard ingress protection rating that offers temporary protection from water submersion. It has a factory designated operating ambient temperature range of 0 degrees Celsius to 40 degrees Celsius, and it weighs approximately 46 Kilograms. The 1326AB-720E-S2 Servo Motor has sealed power and feedback connector cables and an integral shaft oil seal. It has an IP 67 protection rating and a rear-end connector configuration.
