Product Discription

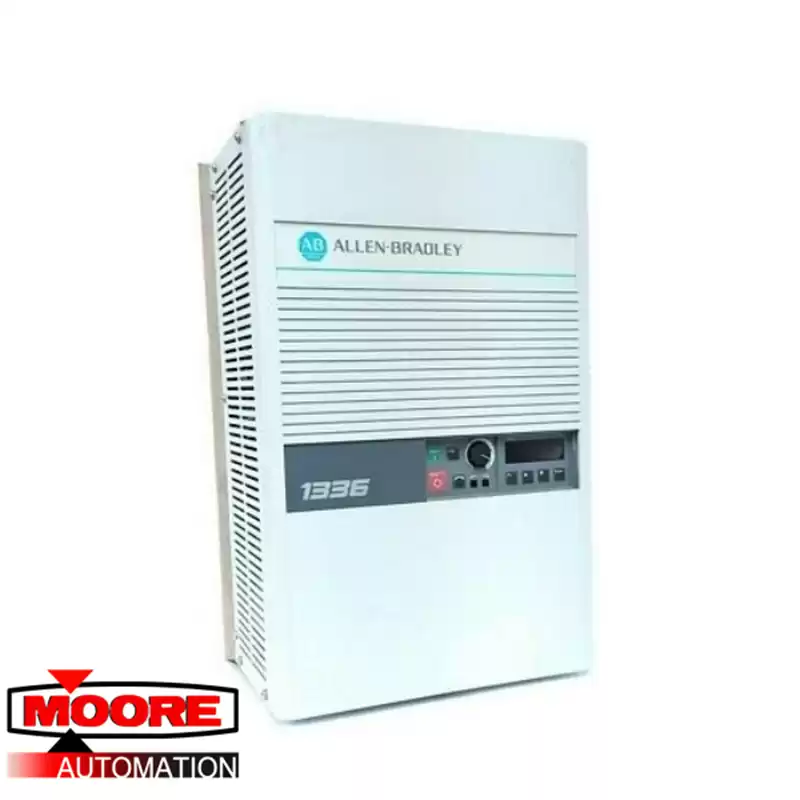

The Allen Bradley 1336-B005-EAD-FA2-L1-S1 Classic Digital AC Drive is an AC variable frequency drive with a 5 Volt DC Logic Interface Board option with contact closure terminal, which provides motor control in many industrial applications requiring torque and speed control. This drive like all AC variable frequency drive, provides motor control by varying the output frequency thereby varying the drive’s output voltage. It can be programmed for standard volt per hertz control, and it utilizes output Pulse Width Modulated signal for frequency control. The 1336-B005-EAD-FA2-L1-S1 has a 3-phase voltage rating of 380 to 460 Volts with 9.6 Amperes operating current, and it has a maximum operating power of 7.2 Kilo Volt-Ampere (KVA). It provides ground fault protection using Metal Oxide Varistors wired in both Line to Line and Line to Ground configuration, and it is designed to flawlessly ride through power outages for a maximum duration of 2 seconds. It has fast acting current limiting capabilities with Voltage regulating capabilities, and it is designed to automatically sense voltage/current unbalance that may cause ground fault. Unlike most 1336 Classic drives, the 1336-B005-EAD-FA2-L1-S1 can be configured locally via a factory option control panel (FA2) with access to only about 71 of 90 available user’s parameters. It also has factory installed Serial Connector port option (S1), which provides users with access to complete (90) operation parameters for smooth operation. The 1336-B005-EAD-FA2-L1-S1 comes standard with constant torque configuration, and it provides adjustable speed control via sine coded output waveform with up to 180% overload capability. It also provides adjustable output voltage within 0 to applied input voltage, and is capable of delivering 2 independent/programmable acceleration and deceleration times. It has NEMA Type 1 rated enclosure, and is designed to resist 15G shock for 11 milliseconds. The 1336-B005-EAD-FA2-L1-S1 has an ambient temperature range of 0 to +40 degree Celsius, and a storage level of -40 to +85 degree Celsius. On average, it weighs about 16.5 Kilogram, with a total mounting volume of 283 x 477 x 223 millimeters, and it is CE, UL, and CSA approved.
