Product Discription

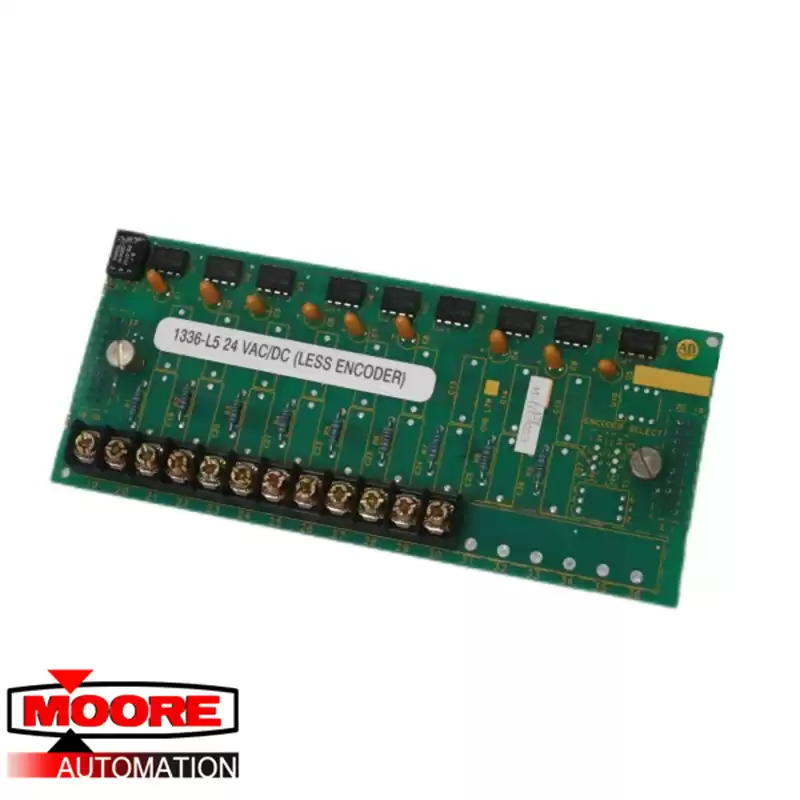

The 1336-L5 is a Control Interface option card that is part of the 1336 Plus Adjustable Frequency AC Drive by Allen-Bradley. It is specifically compatible for use with the 1336 Plus, 1336 Force, and 1336 Impact, drives specifically, Frame A-H drives except Frame C drives with 25 HP and 30 HP power rating. This control interface board is mounted at the bottom of the main control board, sitting atop the TB2 terminal strip. The 1336-L5 is a 24 VDC / 24 VAC logic board that is used to receive additional external contact closure signals. These signals could be any circuit that provides High = True logic state such as hardwired circuits, Programmable Logic Controller (PLC) output modules, auxiliary contacts, sequencers, and similar circuitry that delivers 24 VDC / VAC rated signal voltage. The 1366-L5 has Twelve (12) screw-type terminals that are designed to be terminated with wire sizes 2.1 and 0.30 mm2 (14 and 22 AWG) copper wires. Tighten connections at Torque of 0.90-1.13 N-m (8-10 lb.-in.). Terminal 19 and 20 are intended for Start / Stop functions only with terminal 19 programmable to accept Status, Run, Forward, and Start input while terminal 20 is configurable to Stop / Fault Reset signals. Other inputs that can be wired to the TB3 terminal strip available to the control interface board include Reverse / Forward; Jog; Auxiliary and Speed Select 1-3 inputs. This interface board supports 2-wire and 3wire control wiring configurations. Other commands that can be initiated via the control interface board are Acceleration, Deceleration, Sync, and Traverse.
