Product Description:

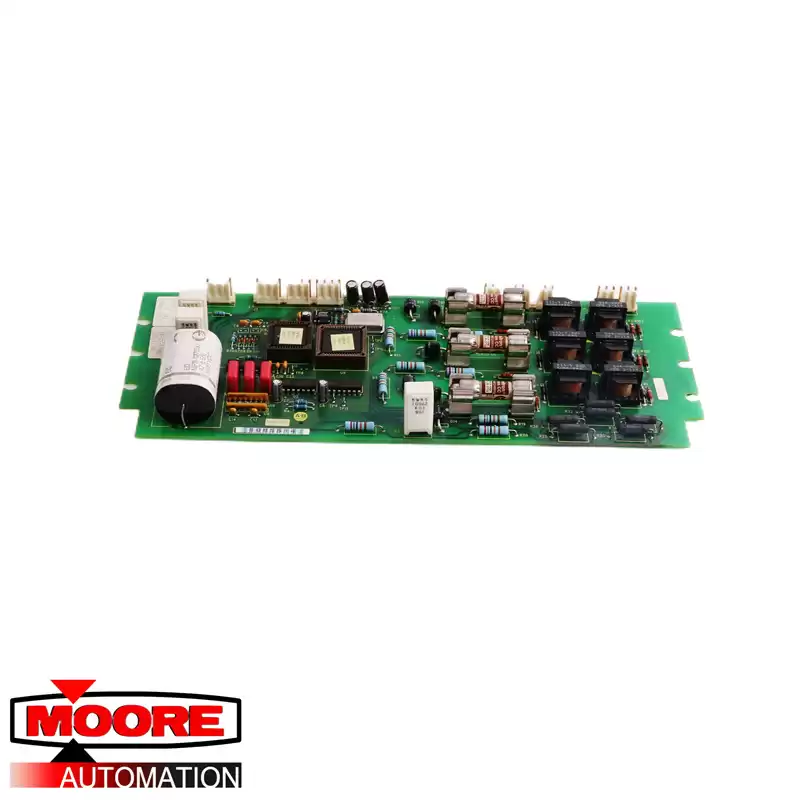

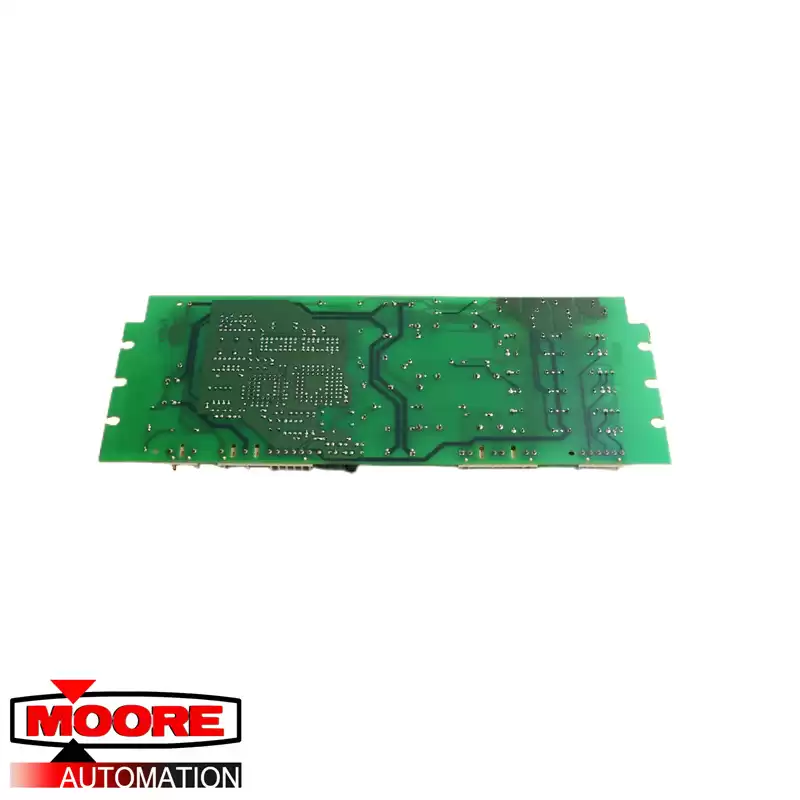

Terminal blocks TB4 and TB6 (B Frame drives & up) allow the drive power supplies to be operated from an external voltage source. Both terminal blocks are located on the Base Driver Board and are accessible from the front of the drive. TB4 can be used to externally power the low voltage power supply, allowing operation of drive control functions in the absence of bus voltage. Applying proper voltage to TB4 provides +5V, ±15V and isolated 12V outputs for:
• Main Control Board (Control Interface Boards, RIO Board, etc.)
• SCANport™ (HIM, etc.)
• Encoder(s)
• LEMS
• Precharge
• Any DC fans in the drive
