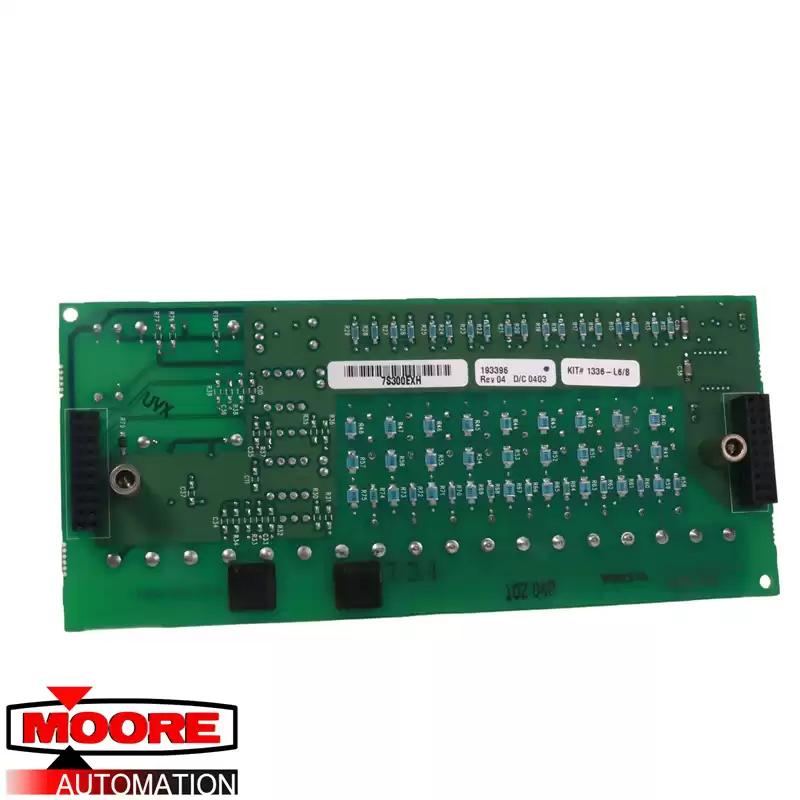

The PLC 1336-QOUT-SP13A belongs to a series of PLC Output Transistor Devices. It is easy to assemble and easy to install in several different frame models. It is also possible for this transistor to upgrade older transistor models or to replace broken transistors. It is important for the user to note that this part contains assemblies and ESD (Electrostatic Discharge) sensitive parts. It is, therefore, crucial to follow static control precautions during testing, installing, repairing, or while servicing this assembly. If the ESD control procedures have not been followed, component damage may result. Component damage can also result when the drive has not been installed properly or when it is incorrectly applied. It could also cause a reduction in product life.
While installing the 1336-QOUT-SP13A output transistor assembly, wiring or application errors could occur. Such errors include an incorrect or an inadequate AC supply, using a motor that is too small, or excessive ambient temperatures. All these could result in the malfunction of the system and so extra care should be taken. The users should verify that the Bus capacitor voltage located has been discharged before performing any task with the 1336-QOUT-SP13A drive. This is to be done so that hazard or electric shock is avoided. The 1336-QOUT-SP13A transistor can operate on three-phase supply systems. Such systems have line voltages that are symmetrical. It has also been protected from lightning induced overvoltages between the line and ground because of the surge suppression devices that it has. The transistor also requires suitable isolation, especially where the supply ground is tied to another piece of equipment or system and where there is the potential for abnormally high-to-ground voltages. The phase-to-ground MOV connection could turn into a continuous current path to the ground with ungrounded distribution systems.
