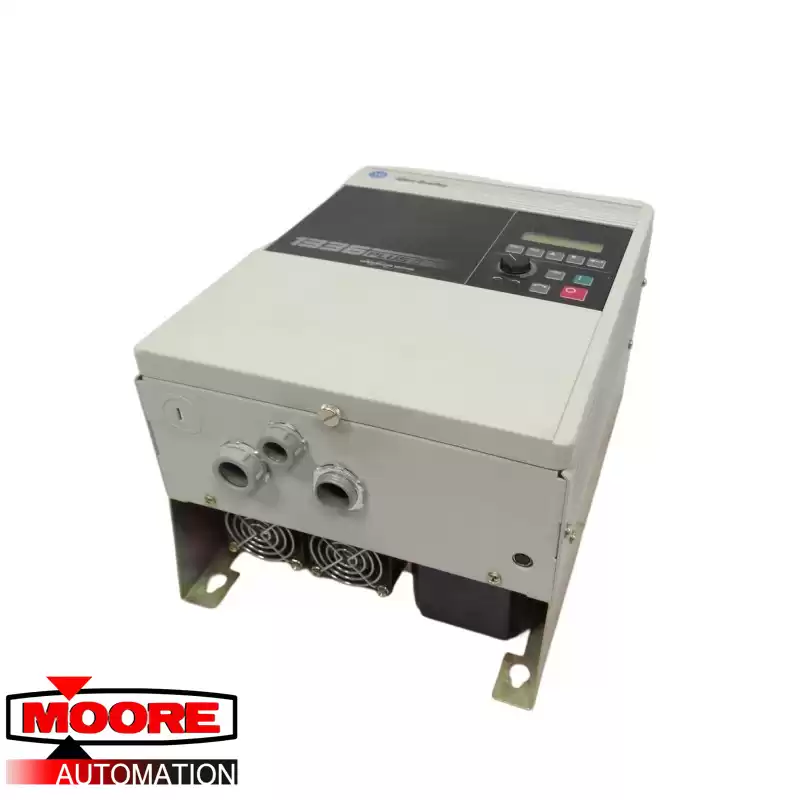

The PLC 1336F-B025-AA-EN is an adjustable Frequency AC drive from PLC. This drive is part of the 1336 Plus II product family that features Sensorless Vector Control (SVC) and Volts / Hertz (V/Hz) control capability. This drive has a NEMA Type 1 enclosure that is powered by a supply voltage of 380-480 VAC, 3-Phase. It delivers an output power of 25 HP and output current of 24 Amperes.
Being part of the Plus II adjustable frequency AC drive, the 1336F-B025-AA-EN comes with a built-in serial communication interface. This communication port enables direct integration to the PLC PLC series such as the PLC2, PLC3, PL4 and PLC5 product family as well as the SLC 500 controller platform. By integrating the drive to controllers, the parameters of the drive may become an integral part of the controller as instructions that is regularly scanned by the controller.
The 1336F-B025-AA-EN has an AC Input Overvoltage Trip of 570V AC; AC Input Undervoltage Trip of 280V AC; Bus Overvoltage Trip of 810V DC and Bus Undervoltage Trip of 400V DC while the drive nomibal bus voltage is 648 VDC. Additionally, this drive comes with a microprocessor for monitoring overtemperature.
