AB |1336F-BRF100-AA-EN| NEW & ORIGINAL

AC Drive 1336 Plus II 380-480V 3Ph 16.1/22A 7.5/11Kw




































AB | 1336F-BRF100-AA-EN | NEW & ORIGINAL




Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450


AMIKON LIMITED is committed to improve the level of world
automation parts supply. No matter what the customer is, no matter how rare the
accessories we need, we can always connect the customer with their desired
product. It is a wide range of industrial automation spare parts for customers
around the world.
Has sold 68,268,313 stock parts for customers .
More than a thousand excellent manufacturers for you to choose
10 million inventory, adequate supply
We are achieving faster speed.





1336F-BRF100-AA-EN


Brand Name                 AB


Product reference      1336F-BRF100-AA-EN


About 1336F-BRF100-AA-EN-L6

The Allen-Bradley 1336F-BRF100-AA-EN-L6 Plus II Adjustable Frequency AC Drive is used for control of 3-phase motors in processes involving speed control. The drive’s rating is 7.5kW (10 HP), with an operational voltage range of 380 to 480V AC or 513 to 620V DC, and its acceptable input range is - 10%to +10%. The drive also has a frequency tolerance range of 48 to 62Hz, with a displacement power factor of 0.95 and an efficiency of 97.5%. Its maximum short-circuit rating is 200,000A (RMS), 600V when it is used with an AC line 20A Time Delay Fuse. The 1336F-BRF100-AA-EN-L6 also has a variable torque input power of 17.1 to 20.7KVA at 26A, and a variable torque output power of 19.9KVA at 25A, and it offers an AC input overvoltage trip of 570V AC and an AC input under voltage of 280V AC. The 1336F-BRF100-AA-EN-L6 provides a microprocessor high-temperature trip through an installed heatsink thermistor which is regulated digitally, and it has an overcurrent trip limit of 20 to 160% of the rated current which is also monitored digitally. It provides a transient line protection up to 6000V, with voltage surge protection and phase-to-phase and phase-to-ground protection using the factory-installed Metal Oxide Varistor (MOV).

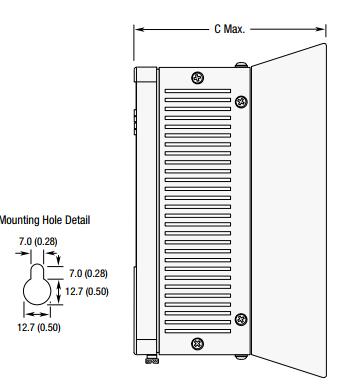

The 1336F-BRF100-AA-EN-L6 drive uses a sensorless vector control to give exceptional torque speed even at a slow motor speed of 15rpm, and it uses the standard volt per hertz control with full custom capabilities for control. It produces a sine-coded pulse modulated control signal with a programming frequency range of 2 to 8Hz, and it has a programming output frequency range of 0 to 400Hz which is proportional to the output voltage. The 1336F-BRF100-AA-EN-L6 has both digital and analog control inputs with an accuracy rating within +-0.51% and +-0.4% of the maximum output frequency, and it offers users 2 programmable acceleration and deceleration times that can be programmed from 0 to 3,600 seconds with 0.1-second increments. It has exceptional overload capabilities of 115% for a minute and of 150% for 3 seconds, it is equipped with a 115V AC control interface option (L6) with high = true logic operation, for additional convenience and adaptability. The drive has a compact design with unique IP20 (NEMA 1) enclosed protection, designed to function at a maximum altitude of 1000m, and it has English as its default language option.  The 1336F-BRF100-AA-EN-L6 has an operating temperature range of 0 to 40 degrees C (32 to 104 degrees F) and its storage temperature is -40 to 70 degrees C (-40 to 158 degrees F). The drive weighs approximately 22.7Kg with a total volume of 276.4mm x 476.3mm x 225.0mm and with UL, CE, and CSA certification.





The Allen-Bradley 1336 PLUS II Adjustable Frequency AC Drive is a drive engineered for maximum control and exceptional industrial capability. Each drive can feature Protective, Operational, Programmable, IO, and Special Functions. The 1336 PLUS II Drives provide real-time diagnostics (Fault and Custom Status reports) that allow the user to make quick and informed decisions on the factory floor. The drives are digitally programmable, which allows the users to make exact adjustments. Although there is a wide range of variations in the 1336 PLUS II series, all the products have easy-to-find common components for standardized repair and assembly. The Input Ratings on these drives can go from 200-600 Volts, which allows for users to find a product that best fits their needs.
