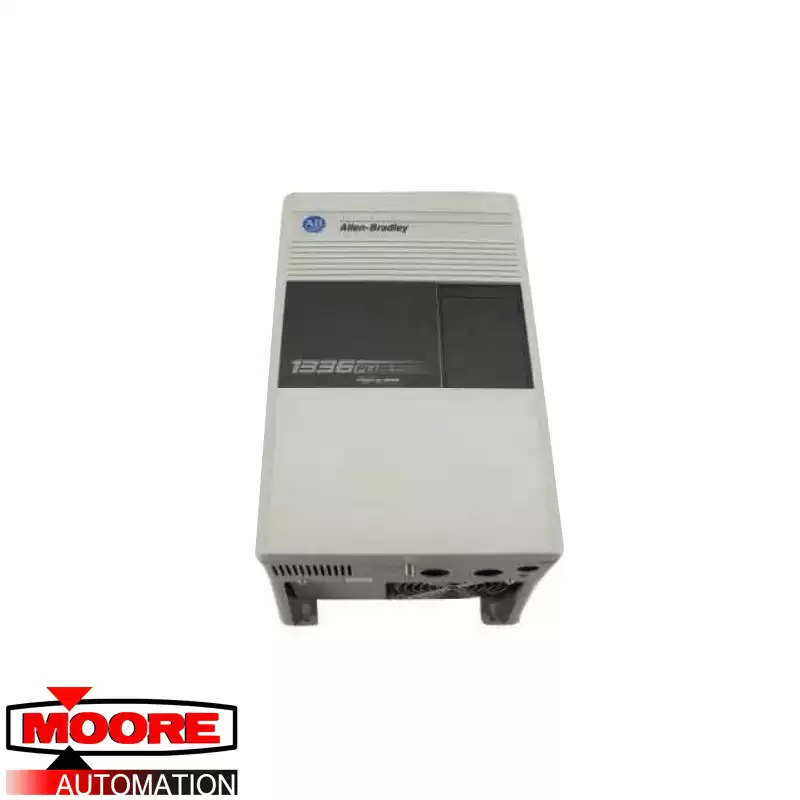

The 1336F-BRF75-AE-DE drive is a 1336F Plus II adjustable frequency AC drive that is manufactured by PLC. Its input voltage ratings are 380 to 480 Volts AC or 513 to 620 Volts DC and its power specifications are 5500 Watts and 7.5 Horsepower. It offers 2 start-up methods to choose from. The assisted start-up option provides a quick and easy way to tune the motion system in a few steps while the program mode start-up option offers a full range of basic and advanced features. This drive features a German language module and its IP 20 (NEMA 1) enclosure has EMC shielding. The 1336F-BRF75-AE-DE Plus II drive supports Volts per Hertz operation through parameter selection. This mode of operation allows for maximum performance in applications where the drive controls multiple motors. When active, the Volts per Hertz control mode of this drive offers the start boost, run boost, boost slope, and the full custom operation.
The PLC 1336F-BRF75-AE-DE Plus II drive has a run on power up function to allow the drive to automatically resume operation on power up without human supervision after a power loss. The flying start feature allows the 1336F-BRF75-AE-DE Plus II drive to determine the speed and direction of a rotating motor and then begin its output at that speed. Cable terminators or an optional 1321 output reactor can be used to prevent voltage doubling at motor terminals in applications where long cable are used to connect the drive to different motors.
