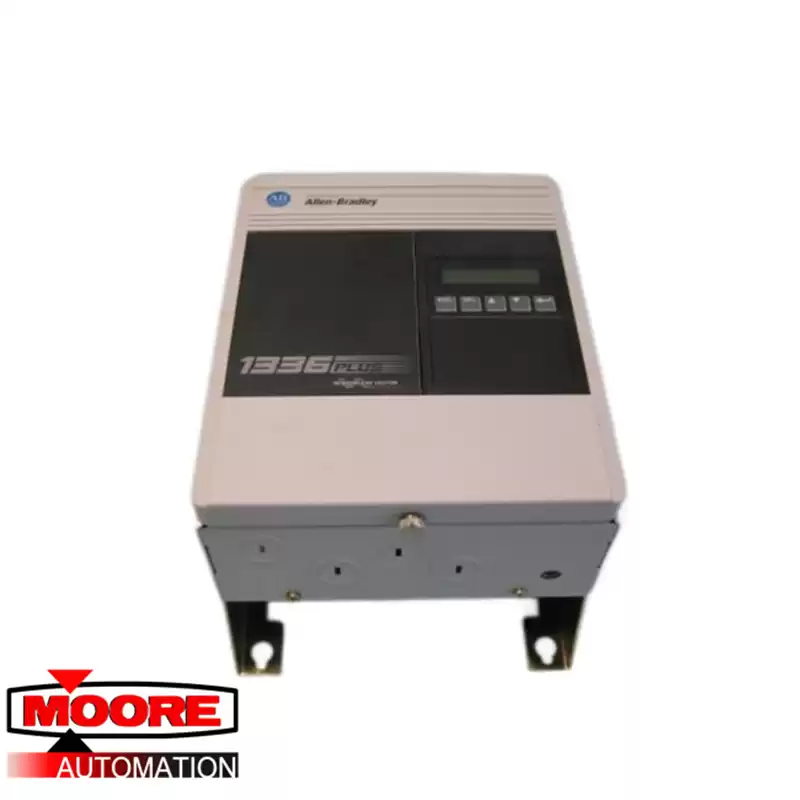

AB | 1336S-BRF30-AA-EN | 1336 PLUS Adjustable Frequency AC Drive


Facebook Twitter Pinterest LinkedIn 分享
The Allen-Bradley 1336S-BRF30-AA-EN Plus Adjustable Frequency AC Drive is a variable frequency AC drive with digital control and setup used for the control of 3-phase industrial motors in a wide range of applications involving speed and torque control. It has a 3-phase AC voltage range of 380 to 480V AC or a DC voltage range of 513 to 620V DC, with an input voltage tolerance within ±10% at 48 to 62Hz frequency tolerance. It has a variable torque input of 4.7 to 5.7KVA at 7.2A and output of 4.8KVA at 6.0A, with a maximum heat dissipation of 30W, and a displacement power factor of 0.80, with 97.5% drive efficiency. It offers 200,000A maximum short-circuit protection and it provides a microprocessor over temperature trip through an installed heatsink thermistor. The 1336S-BRF30-AA-EN has a removable Metal Oxide Varistor which provides voltage surge protection and offers both phase-to-phase and phase-to-ground protection, and it offers a line transient protection of up to 6000V. The 1336S-BRF30-AA-EN has a maximum power loss ride thru time of 15 milliseconds at full load, and it offers a programmable overcurrent overload limit of 20 to 160% of the rated output current.
