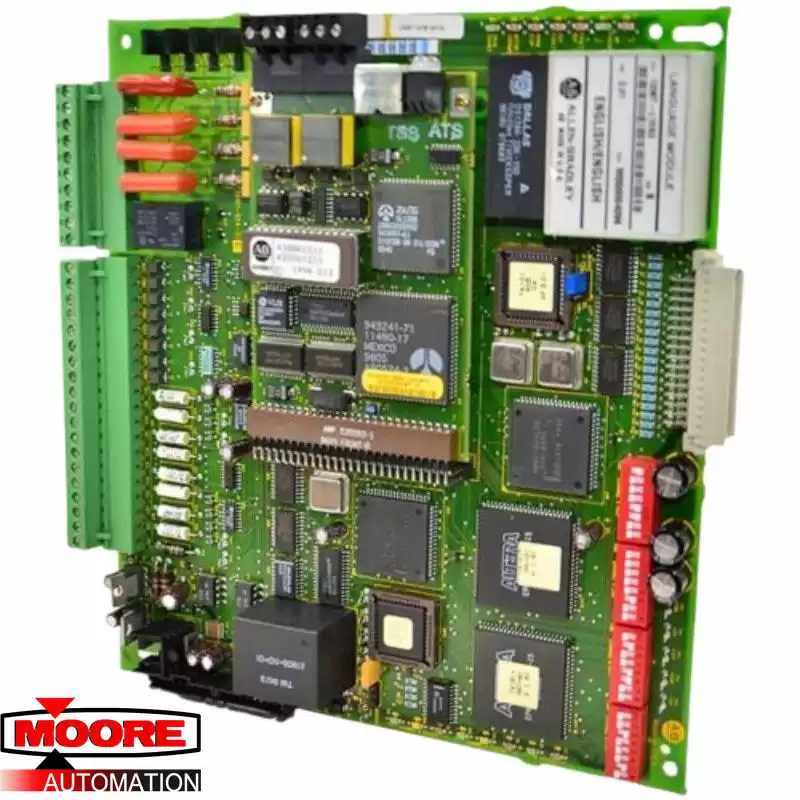

The Allen-Bradley 1336T-GTB-SP1B is a PLC Communication Board from the 1336 FORCE series. This Board can help the user to customize the operation of their drive, among other features, and is engineered for use with TIDs (Terminal Interface Devices) such as Allen-Bradley Programmable Controllers, PLC-5/40L, PLC-5/10, PLC-5/15, PLC-5/25 Family, and more. If added to 1336 FORCE system, the Board has the ability to expand its communication capabilities. The 1336T-GTB-SP1B operates on the input voltage supplied by the drive, and it has a SCANport load rating of 60 mA. The board provides 4 Analog Inputs and 4 Analog Outputs, both of which have a tolerance for deviations of +/-10 V from the standard input voltage. Furthermore, the Communication board features 2 RIO/DH Communications channels. The 1336T-GTB-SP1B comes with DIP jumpers and switches. Although they are present at the factory, they can still be reconfigured to suit the user’s needs.
