Overview

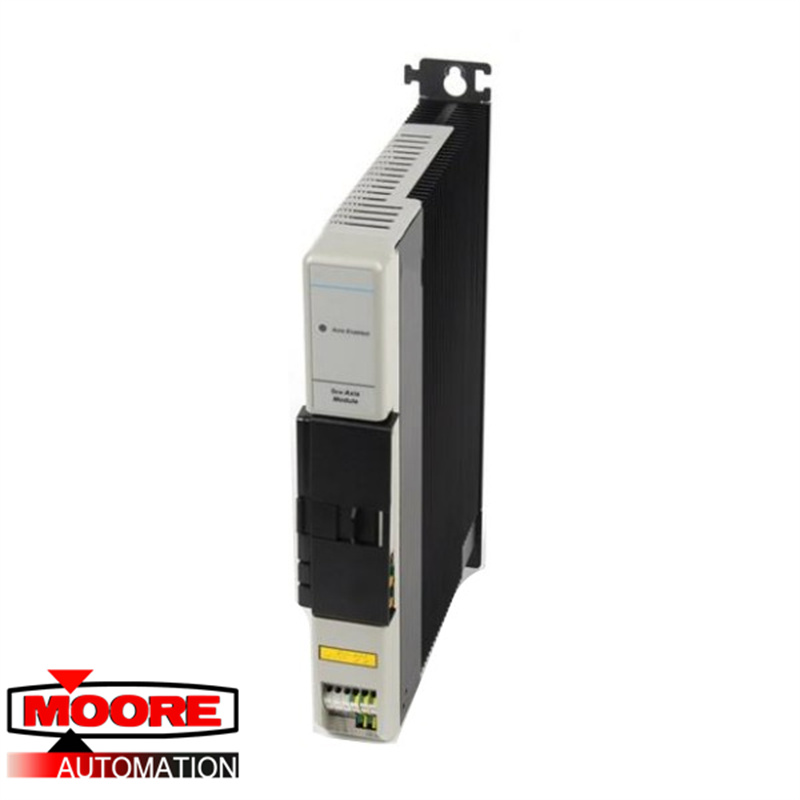

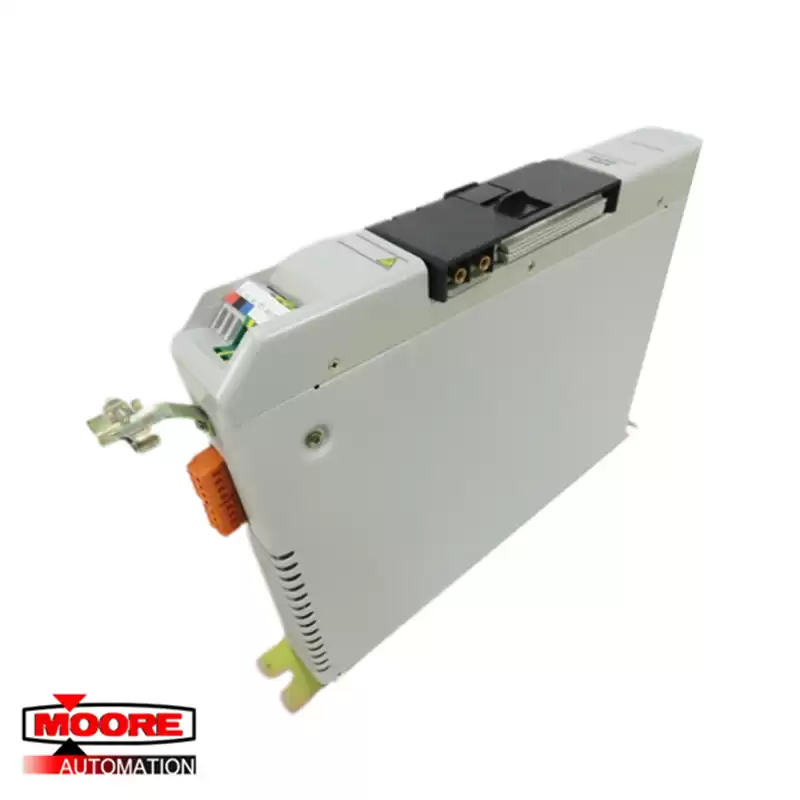

The 1394-AM07 is a component of Allen-Bradley Servo Control systems. This particular product is an Axis Module that is compatible for use with 1394 system modules. Axis module are especially designed to control a group of servo motors that forms one multi-axis servo control systems.
Each 1394 Axis Module are packaged and delivered with TB1 and TB2 connectors and One (1) 1394 Axis module information sheet and the Axis Module itself.
If using more than one axis module, the first axis module is installed beside the system module. The other axis modules are installed adjacent to the previous axis module. The last axis module shall have a clearance of 10.0 mm (0.4 in.) side clearance, 76.2 mm (3.00 in.) Top clearance for depth of terminator and 50.8 mm (2.00 in.) clearance for airflow and installation.
