Product Discription

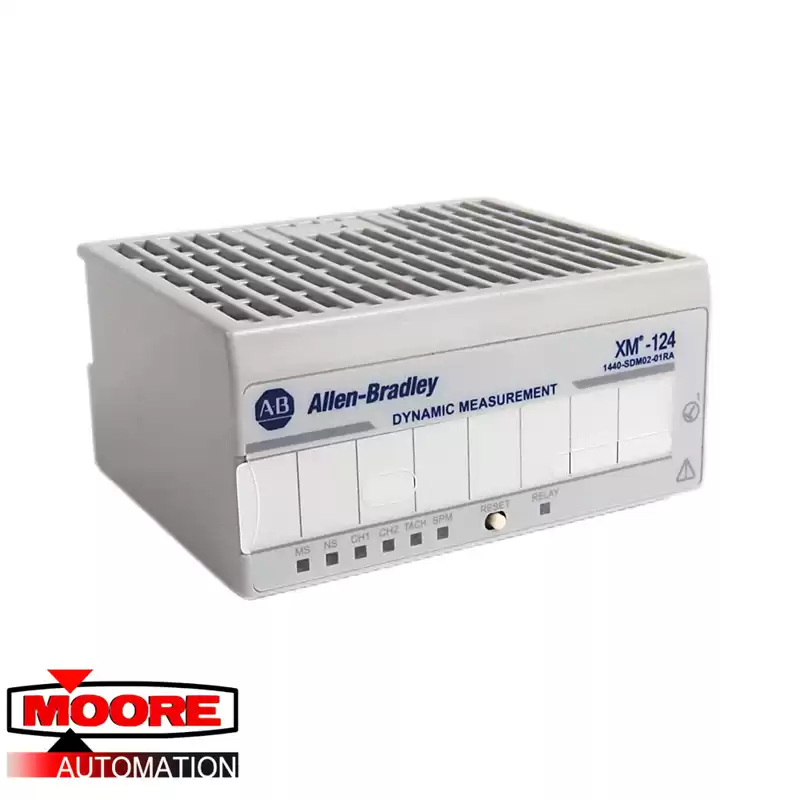

The Allen-Bradley 1440-SDM02-01RA module is an XM-124 standard dynamic measurement module. It is a machine condition monitoring and protection device that is used for measuring the dynamic parameters of rotating machines such as the vibration, pressure, strain, and position parameters. Other applications include non-contact eddy current probes, standard integrated electronics piezoelectric (IEPE) accelerometers, velocity transducers, AC voltage output, or DC voltage output measurement devices. The 1440-SDM02-01RA XM-124 standard dynamic measurement module can also be connected to a tachometer input for speed measurement and order analysis functions. The outputs include digital measures, a DeviceNet network, two 4 to 20 mA rated analog outputs, and one onboard relay. One of the most important features of the module is the onboard processing of critical vibration parameters that allow the XM-124 module to act independently if configured to do so by the users. Integrating the module with the plant’s automation and control systems is the usual procedure that is implemented in the majority of applications to avoid failures.
To install the Allen-Bradley 1440-SDM02-01RA XM-124 standard dynamic measurement module, a DIN Rail-mounted base unit that is known as the XM-940 dynamic measurement module terminal base is needed because it provides the necessary wiring terminations for all the field connections required by the XM vibration modules. The XM-124 modules are installed on the XM-940 terminal base by using a key switch and a 96-pin connector. All of the electronics required for performing the measurements and using the built-in processors, relays, and serial interface ports for local configuration are contained in the Allen-Bradley 1440-SDM02-01RA XM-124 standard dynamic measurement module when it is using the XM-940 dynamic measurement module terminal base as a physical connection terminal only.
