Product Discription

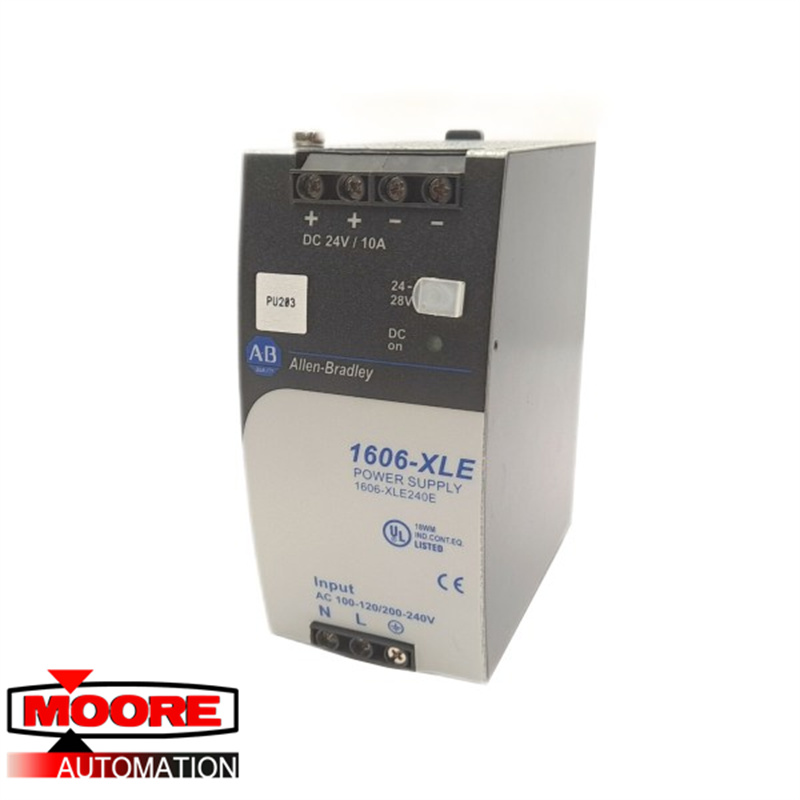

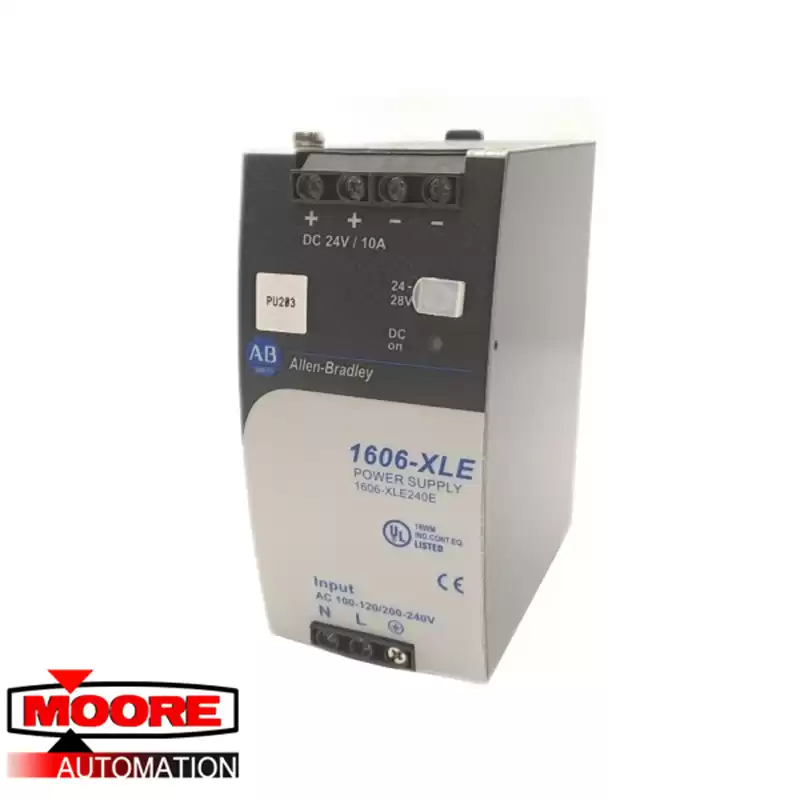

The Allen-Bradley 1606-XLE240E power supply is a single-phase input DC power supply unit. It belongs to the Allen-Bradley XLE family of switched-mode power supply modules. The 1606-XLE240E power supply is crafted to deliver 24.1 Volts DC voltage, 10 Amps of current, and 240 Watts, but it can be adjusted to the specific requirements of a system by changing the output voltage to up to 28 Volts DC. It signals proper device operation over a green DC-o.k. signal light. This unit has all the crucial control and protective features that guarantee a high level of reliability and long service life. The 1606-XLE240E power supply automatically detects if the input voltage is in the range of 100 120 Volts AC or 200 to 240 Volts AC and adapts it to produce 24 Volts DC voltage at the output side for both cases. Do not apply DC voltage to the input terminals. The unit has a low inrush current that peaks at 3 Amps. On the load side, this power supply is electronically protected against no-load, overload, and short-circuit situations.
The terminals of the Allen-Bradley 1606-XLE240E power supply are screw clamped and ready to accept 0.5 to 4.0 mm2 stranded wires. The heat generation of this power supply is minimized to 23.7 Watts at 120 Volts AC input and 22 Watts at 240 Volts AC input. The efficiency rating of the 1606-XLE240E power supply is around 91.6% at 230 Volts AC input. The operating line frequency of the power supply is 50 to 60 Hertz (±6%). The physical dimensions and the weight of the unit are 60 millimeters x 124 millimeters x 117 millimeters and 0.7 kilograms, respectively. The ambient conditions for proper device operation include 5 to 95% non-condensing relative humidity and an air temperature of less than 70 degrees Celsius (note that there will be some derating for temperatures above 60 degrees Celsius).
