AB | 1606-XLS120E| (IN STOCK)












Power Supply, Performance, 120W, 24 - 28VDC, 1-Phase




























AB | 1606-XLS120E| (IN STOCK)




Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450



ATTENTION!

PAYMENT: T/T 100% IN ADVANCE

Lead Time : 3-5 Days

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.





1769-IT6


Brand Name                 AB


Product reference       1606-XLS120E


        24V,5A Single Phase Input

        POWER SUPPLY


  •   Ultra-small size
  •   Extra-low inrush current
  •   Active power factor correction
  •   Wide range AC/DC input
  •   Superior reserve power (can support 150% rated power for five seconds)
  •   Superior efficiency and temperature rating ¾ DC-OK and overload LED.


The most outstanding features of this 1606-XLS DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used. High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible. The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation

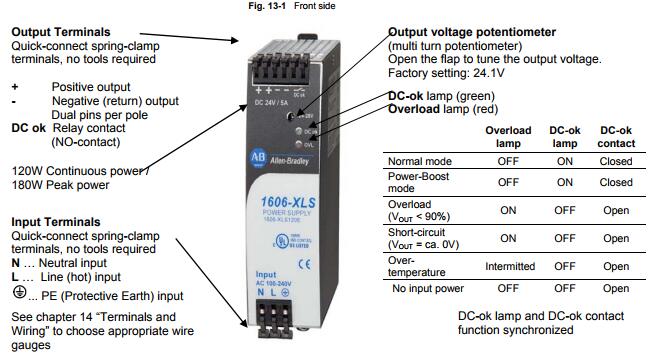

PRODUCT FACE LABEL
