Technical Specifications for 170947/170948 129708-02 M003325108
|
Part number
|
170947/170948 129708-02 M003325108
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Manufacturer
|
Allen Bradley
|
|
Payment
|
T/T
|
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Description
|

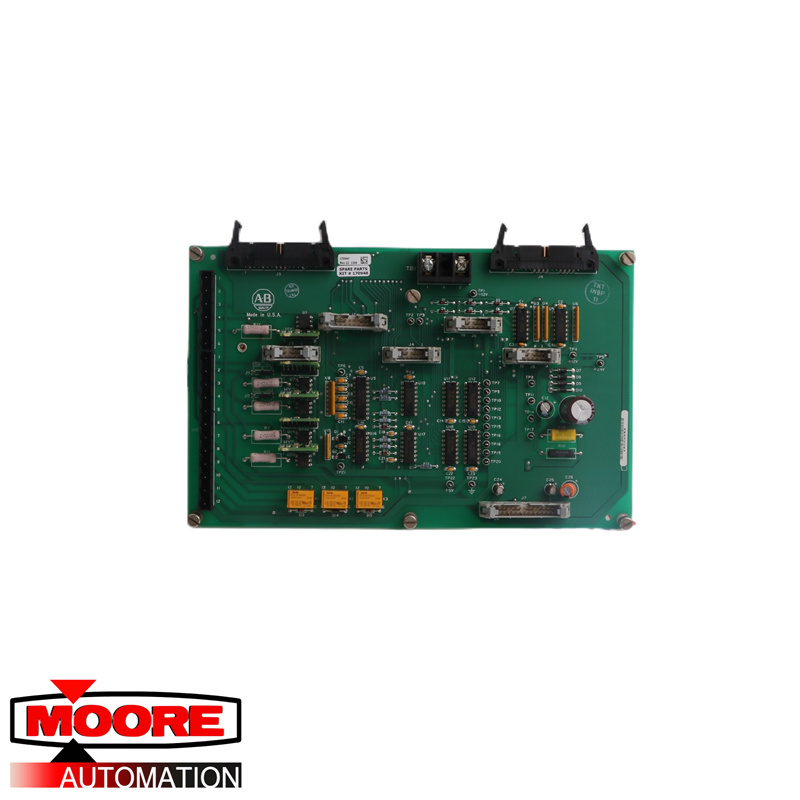

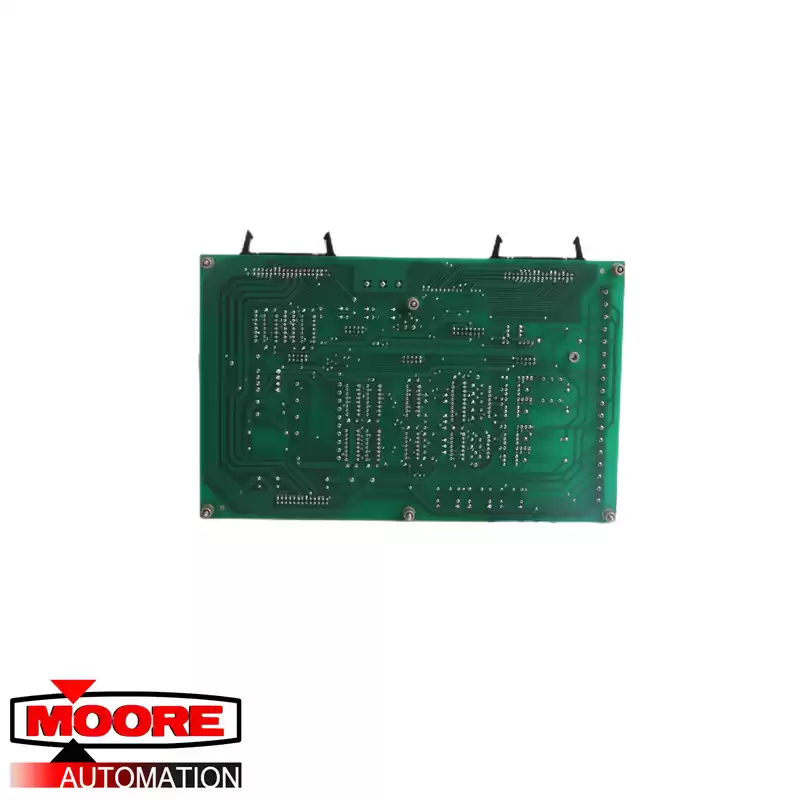

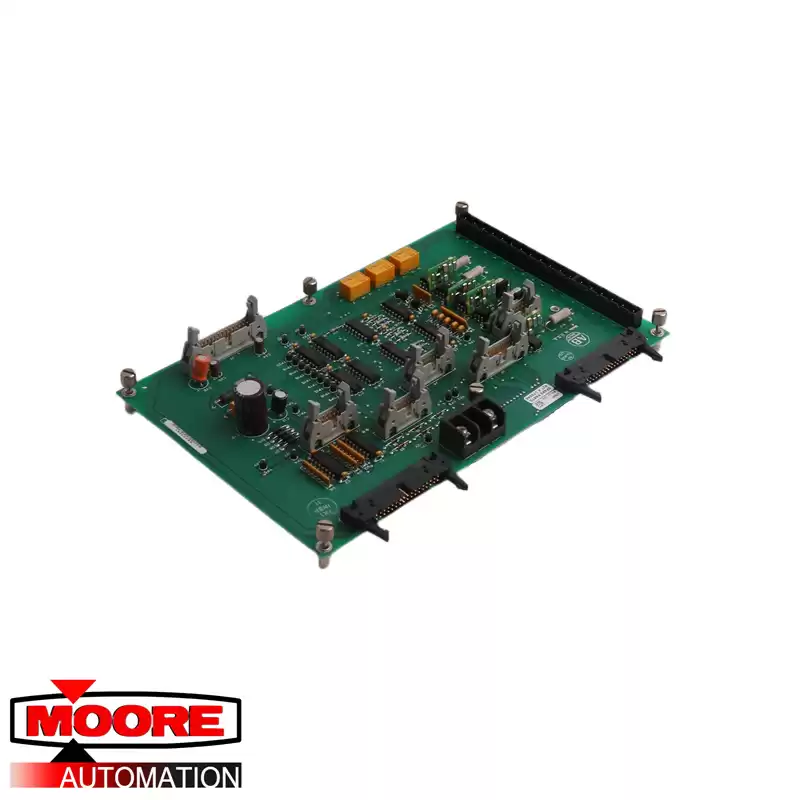

Power Stage Interface Board
|
|
Year of Production
|
2020-2022 available
|
About 170947/170948 129708-02 M003325108
|
The unit power supply board converts 115V AC input into regulated +5V DC and ±12V DC control voltages. These control voltages are routed through the power stage interface board to provide power to all the printed circuit boards.The power stage interface board is used as the chief interface between the main control board and other boards of the system.
This board is responsible for distributing power and control signals to and from the main control board, gate interface board, field-pulse transformer board, feedback board, and unit power supply.The test points and jumpers shown in the diagram are used for startup and troubleshooting procedures. Refer to the troubleshooting manual for more information on test points and jumpers.
|
