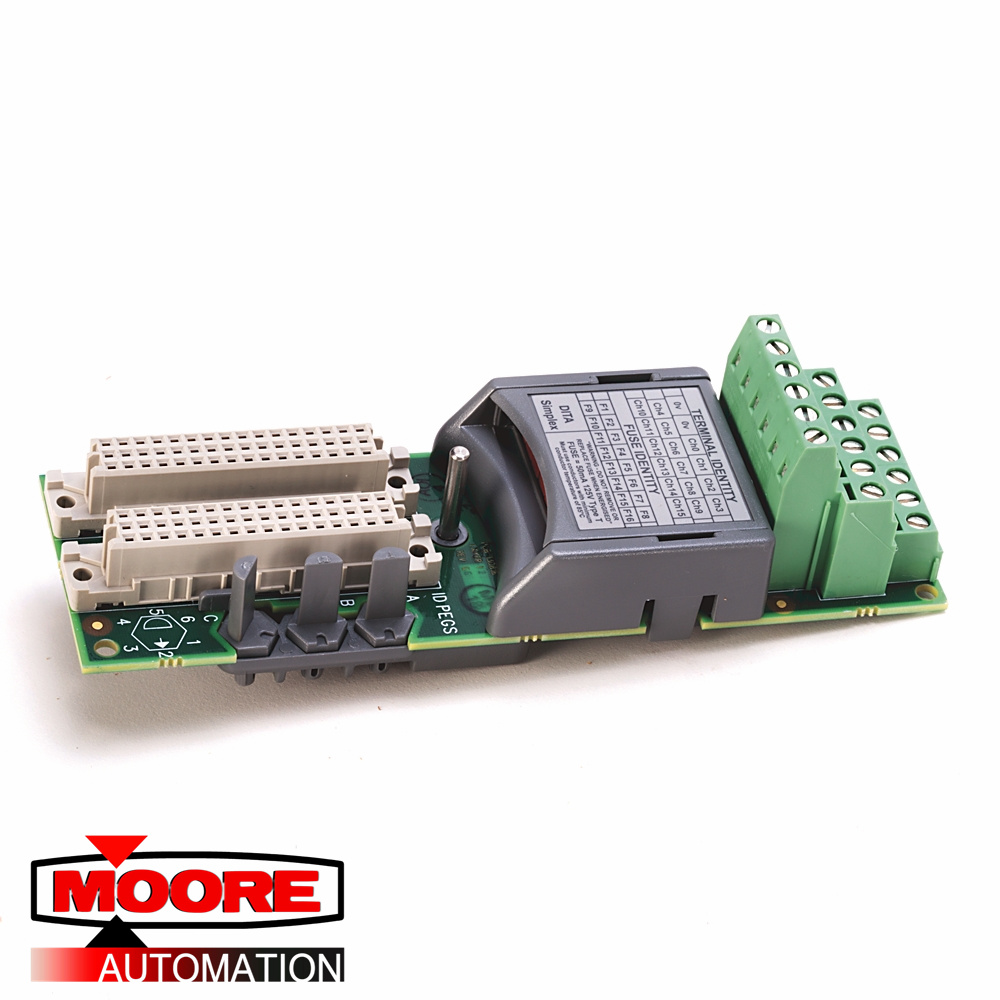

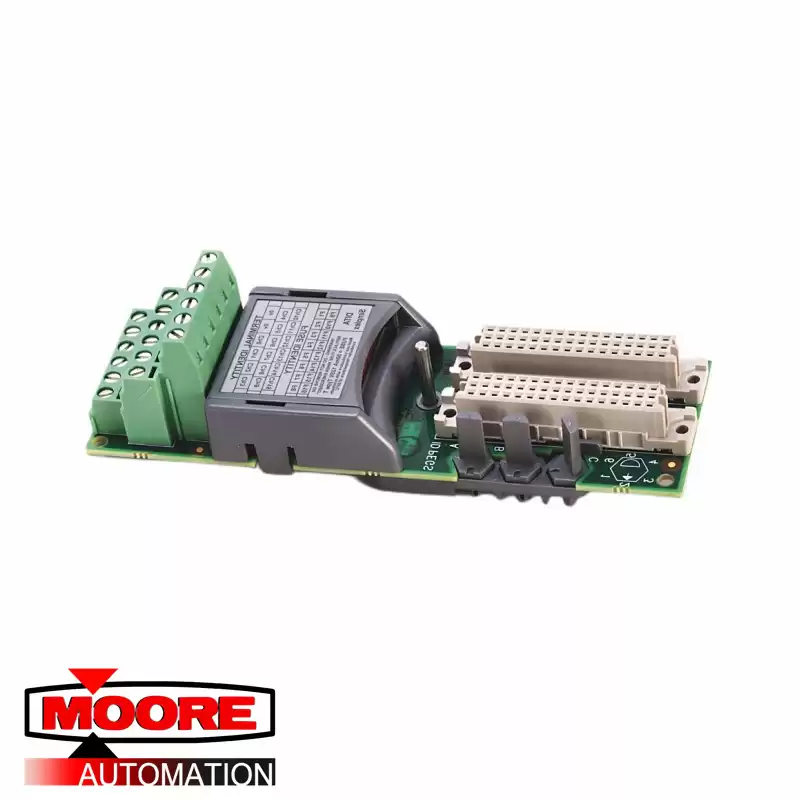

AB 1715-TASIB16D termination assembly

The 1715-TASIB16D is an assembly module and Allen-Bradley is its manufacturer. This device belongs to the Allen-Bradley Bulletin 1715 Redundant I/O module series. It is a digital input Simplex Allen-Bradley module. It comes with 0.5 N-m of screw torque and it also offers support for the Allen-Bradley 1715-IB6D module. The power dissipation on this module is 4 Watts maximum. This module is supported by stranded copper wire with a gauge of 22 to 16 AWG. The wire must weigh 133 grams and be 132 x 42 millimeters in dimensions. It is mainly used for redundant I/O processes. The module ships with 16 channels and it operates with a 32 Volts DC power supply and an operating backplane current of 260 milliamps. The 1715-TASIB16D module has isolation for 50 Volts of continuous power. Basic insulation is present for the I/O ports to the backplane. No isolation is present between the individual I/O ports.
