Product Description:

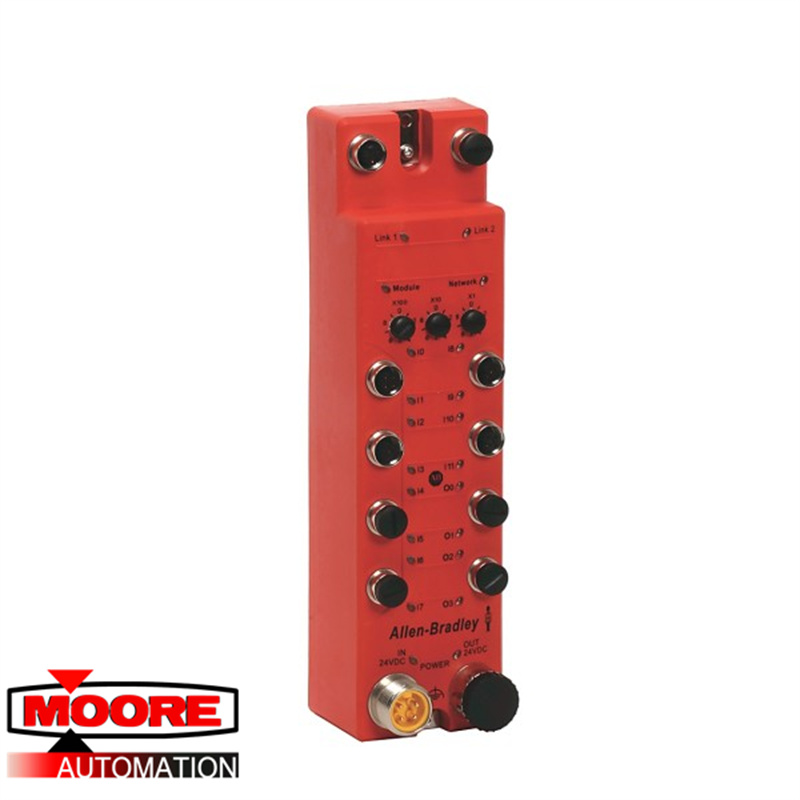

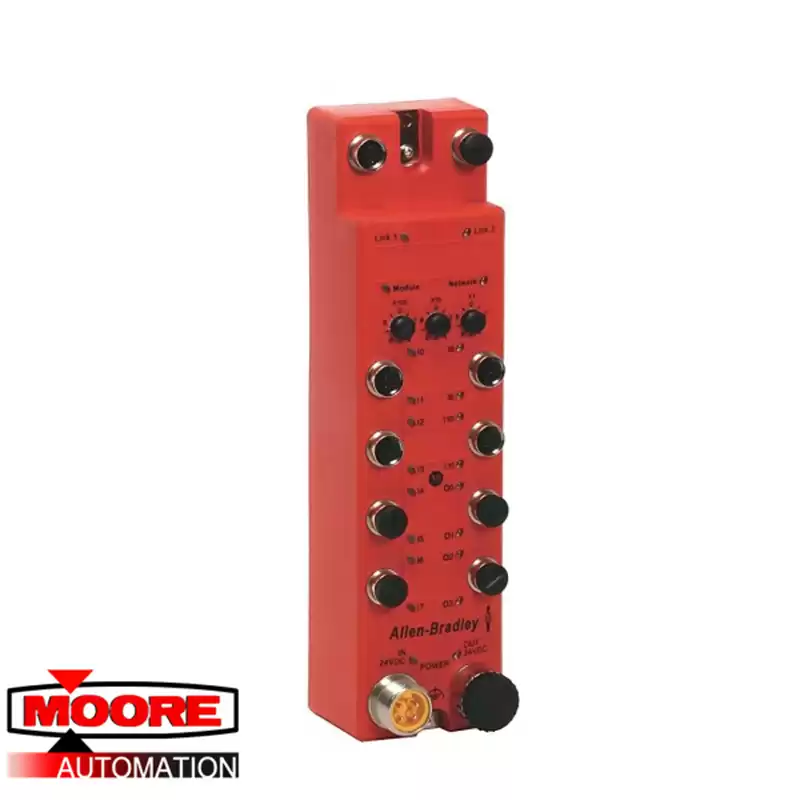

The Allen-Bradley 1732DS-IB8 Safety Input Module has a current-sinking input type, alongside a current-sourcing output type. The safety module's minimum on-state input voltage rating is 11 Volts, with a minimum on-state input current reading at 3.3 milliAmps. Its maximum off-state input voltage is 5 Volts, with its maximum off-state current rating is 1.3 milliAmps. It also has a Type 3 input type. With respect to pulse test output, the module's pulse test output current is 0.7 Amps, with a maximum residual voltage of 1.2 Volts. The module's maximum output leakage current is 0.1 milliAmps. It has a maximum current of 25 milliAmps and a minimum of 5 milliAmps. The Allen-Bradley 1732DS-IB8 Safety Input Module has an output current rating of 2 Amps maximum per point. The module comes standard with short circuit detection and has a DC-14 pilot duty rating.
