Brand Name                 AB


Product reference     1734-OB4

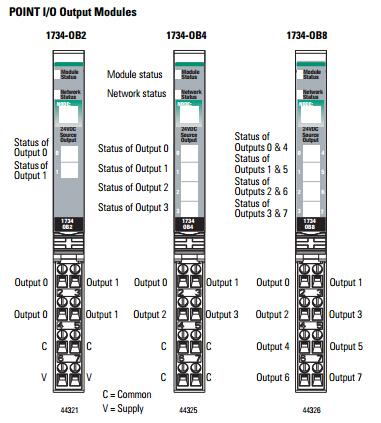

The Allen-Bradley 1734-OB4 comes with 1 Key switch position and 4 channels. Channel 0 has an output terminal of 0 and a common terminal of 6. Channel 1 has an output terminal of 1 and common terminal of 7. Channel 2 has output terminal of 2 and common terminal of 4. Finally, channel 3 has an output terminal of 3 and common terminal of 5. The wiring category is 2 on the signal ports. The wire size is determined by the installed terminal block. The input/output status has only 2 indicators, one for when the machine is off, and a yellow one to indicate that one or more of the outputs are active.

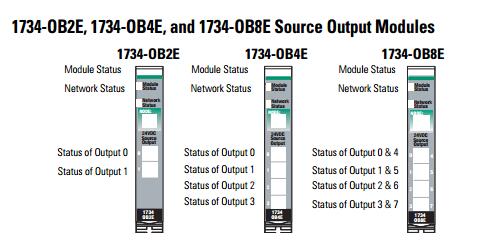

The 1734-OB4 has 4 non-isolated, sourcing outputs. It has a nominal voltage of 24 Volts DC and it has an ON-state voltage range of 10 to 28.8 Volts DC. Its maximum ON-state voltage drop is 0.2 Volts DC. The minimum ON-state current per channel is 1.0 mA and the OFF-state voltage peak is 28.8 Volts DC. The output current rating is 1.0 Amp per output not exceeding 3.0 Amps maximum per module. The 1734-OB4 comes with different indicator lights, 4 yellow for output statuses and 2 green/red for the module and network statuses. The model's terminal base screw torque mass is 0.8 N-m (7 pounds on an inch) Its power dissipation is 28.8 Volts DC at 1.2 W and the thermal dissipation is greatest at 28.8 Volts DC and 4.1 BTU/hour.


The module’s highest OFF-state leakage is 0.5 mA and it has an output signal delay for both OFF-ON and ON-OFF of 0.1 milliseconds. The 1734-OB4's surge current is 2 Amps for 10 milliseconds, repeatable for 3 seconds. It has an external DC power supply current of 16 mA and an isolation voltage of 50 Volts (continuous) tested at 2500 Volts DC for 60 seconds. The dimensions are 56.0 x 12.0 x 75.5 millimeters. It has an approximate weight of 33.17 grams and the relative humidity range is 5 to 95%, non-condensing. The 1734-OB4’s operating temperature is -20 to 55 degrees Celsius and the non-operating temperature is -40 to 85 degrees Celsius. Its operating shock is 30 g and its non-operating shock is 50 g. The North America Temp. Code is T4A.
