Technical Specifications for 1734-TOP
|
Part number
|
1734-TOP
|
|
Manufacturer
|
Allen Bradley
|
|
Country of origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Year of Production
|
2020-2022 available
|
About 1734-TOP

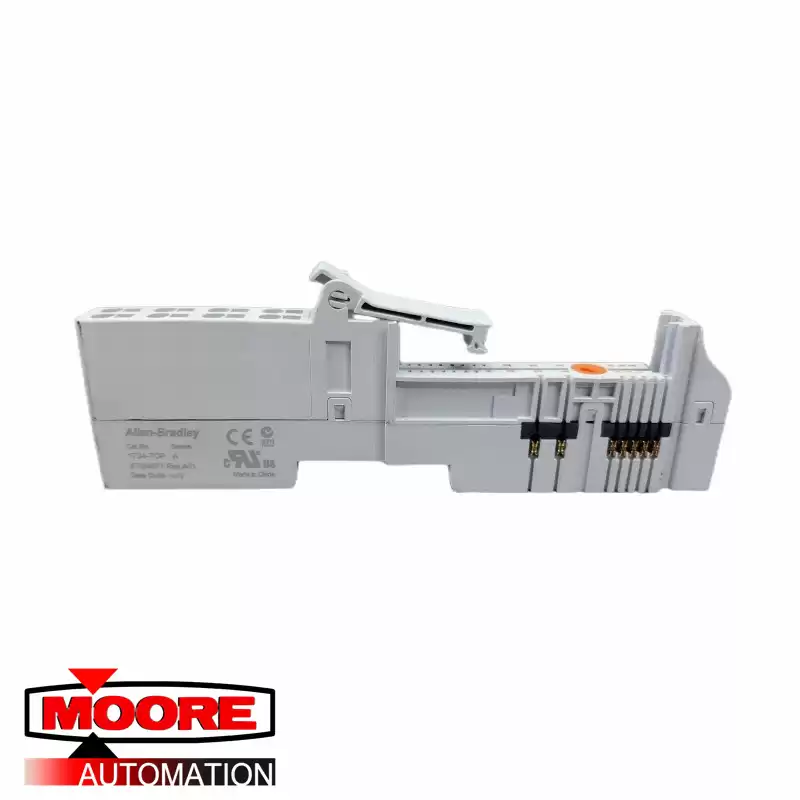

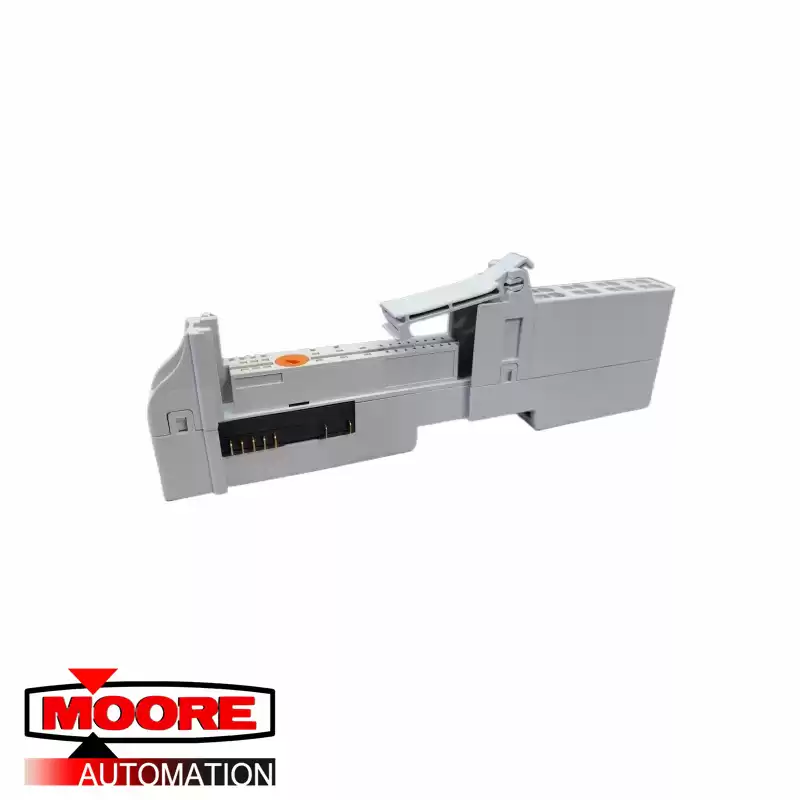

The 1734-TOP POINT I/O Terminal Base by Allen Bradley is a one-piece base, meaning that its purpose is as a mounting base with an integrated 8-terminal screw-clamp block. It has a wide range of applications in industrial automation because it provides wiring of digital input/output/relay modules, analog input/output modules, and specialty modules. This POINT I/O terminal base can be mounted directly on the DIN-rail, either horizontally or vertically, and will connect distribution of field power-bus as well as backplane communication. The mechanical keying of the terminal base prevents incorrect module placement. While the POINT I/O system implements a No-Tools design, providing a smooth assembly process to set up the I/O module with the terminal base, without using any tools.
A handle, a DIN-rail Locking Screw and Mechanical Keying (both Orange), and a wiring block are the main components of the 1734-TOP terminal base, all kept within dimensions of 49 x 12 x 144 millimeters (1.93 x 0.47 x 5.67 inches) and a weight 63.8 grams (2.25 ounces).
This terminal has a wire size of 0.25 or 2.5 millimeters, (that is 22 to 14 AWG), a screw torque of 0.6 Nm (7 pound- inch), while its supply voltage has a maximum of 300 Volts, its terminal current a maximum of 8A, and a field power bus supply voltage ranging from 28.8 Volts DC to 120 or 240 Volts AC.
