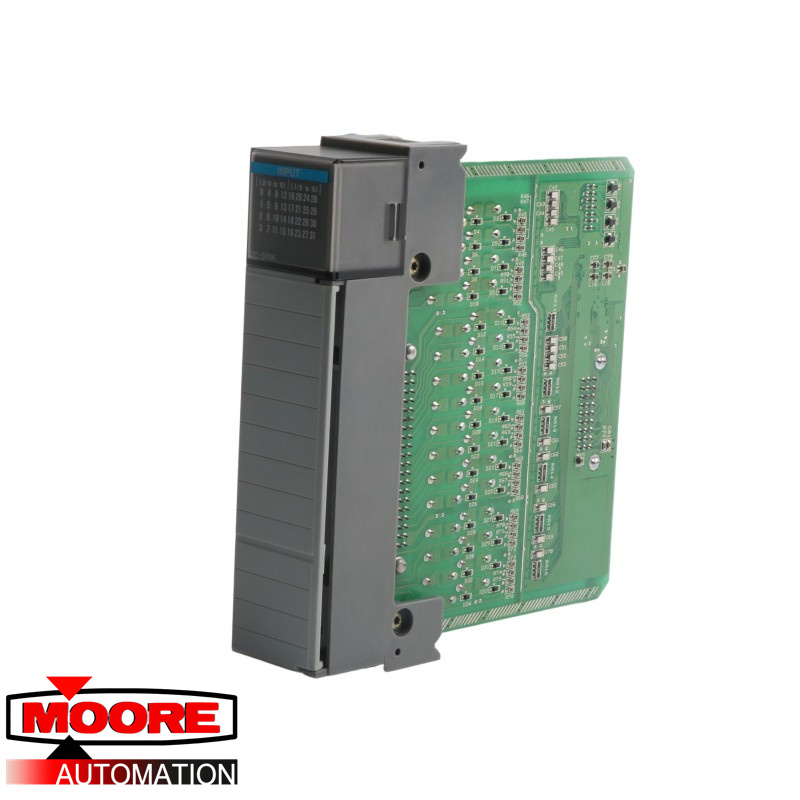

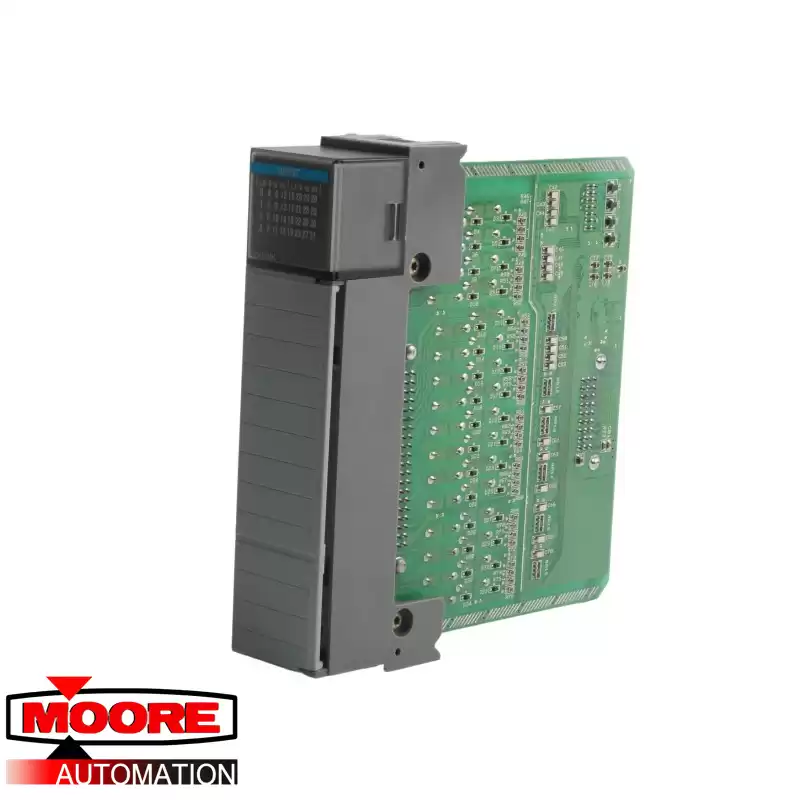

The 1746-OG16 digital DC output module is part of the PLC PLC series. It has 16 channels within its structure and uses a voltage output capacity of about 4.5 to 5.5 Volts DC. It has a backplane current of 0.81 A and requires a continuous current of about 24 MA per output. Its communication circuit requires 500 Volts DC for operating condition, and it needs a Backplane Voltage of 1500 Volts AC.
The processor fitted for the 1746-OG16 is an SLC 500 processor with an Open-Type enclosure. Variations in temperature can affect the normal performance of this module, with the ideal temperature range being around 0 to 60 degrees Celsius. The surrounding environment should not exceed 95% relative humidity and should not drop below 5% for the module to remain without condensation.
With an operational shock of 30 G and a non operational shock of 50 G, this module’s operating vibration at one (1) G is 10 to 2000 Hertz. It has a response time of 0.25 milliseconds for its “ON” function, with its “OFF” function having a response time of 0.5 milliseconds. The 1746-OG16 has a power dissipation rating of 0.03 Watts; a sinking current is the type of current that this module requires to be paired with a programmable controller.
