Brand Name                 AB

Product reference       1746-P3

The 1746-P3 is a 24V DC power supply. It contains an input voltage range from 19.2...28.8V AC. 1746P3 has a input power max. of 61W, and an inrush current max. of 20A. Backplane output current is 3.6 A at 5V DC or 0.87 A at 24V DC. The power supply contains two 14 AWG wires per terminal (maximum). The dimensions for 1746P3 are 140 x 74 x 145mm (5.5 x 2.9 x 5.7 in.) and the weight is 1.1kg (2.5lb).

The Allen Bradley 1746-P3 is a member of the SLC 500 Power Supplies series. The 1746-P3 has dimensions of 3.35 x 5.70 x 5.51 inches and it comes with fuse protection. These power supply fuses are intended to prevent fire hazards due to short-circuit conditions but these fuses may not protect the supply of transient faults or transients on the power lines. The operating ambient temperature of the Allen-Bradley 1746-P3 is from 0-60 °C (32-140 °F). The typical line power requirement of this power supply is 90 VA. This power supply has a maximum inrush current of 20 A. The internal current capacity of The Allen-Bradley 1746-P3 is 3.6A at 5V DC and 0.87A at 24V DC. The current capacity of this power supply derates by 5% above 55 °C (131 °F). The 1746-P4 has a line voltage of 19.2-28.8V DC.

The Allen-Bradley SLC 500 1746-P3 Power Supply is intended for use in the pollution level 2 industry environments in excessive category II applications (as defined in the publication of IEC 60664-1). If you connect or disconnect the cable to the terminal block or if you insert or discharge the power supply when power is on, an electric arc may occur. This may cause an explosion in hazardous locations. Make sure the power is removed or that the area is not dangerous before continuing.

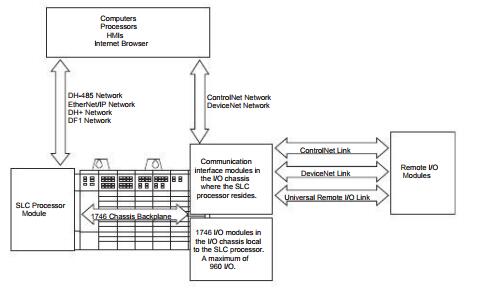

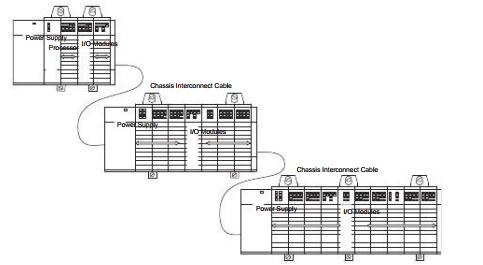

Powerful, yet affordable - SLC 500 programmable controllers provide excellent value with extensive capabilities to address a broad range of applications including material handling, HVAC control, high speed assembly operations, small process control, simple motion control, and SCADA. Modularity - Modular processes, power supplies, I/O, memory options, and communication interfaces allow for a configurable and expandable system. Configure your system for the number of I/O, the amount of memory, and the communication networks needed. Later, you can expand the system by adding I/O, memory, or communication interfaces. Advanced instruction set - Includes indirect addressing, high level math capability, and a compute instruction. Communication network versatility - Choose from on-board Ethernet, DH+, or DH-485, as well as options for ControlNet, DeviceNet, or Remote I/O communications. Broad selection of I/O - Select from over 60 modules to control discrete, analog, and temperature signals. Third-party specialty modules are also available from Encompass partners to customize control solutions for your application needs. Industrially hardened product - Designed to withstand the vibrations, thermal extremes, and electrical noise associated with harsh industrial environments. Windows programming software - RSLogix 500 programming software maximizes productivity by simplifying program development and troubleshooting.
