Brand Name                 AB

Product reference       1756-CN2R

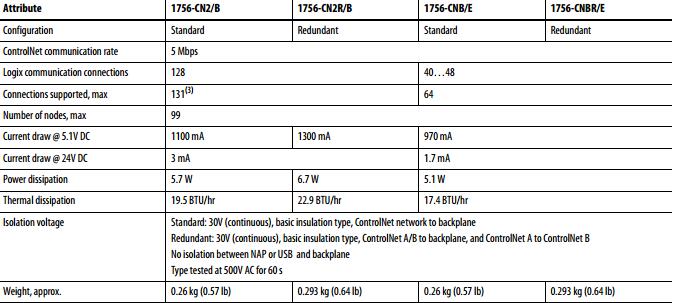

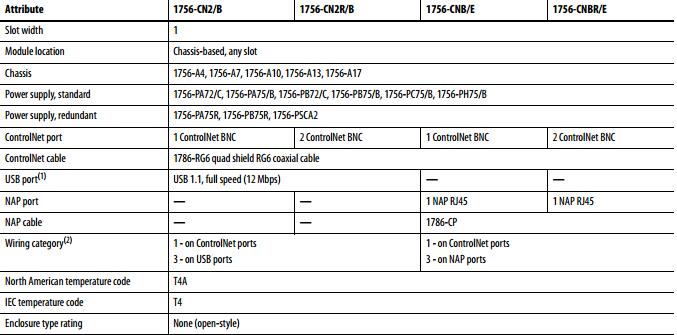

The 1756-CN2R (100) ControlNet Connections per Communication Module by Allen-Bradley is a communication module attached to a slot on the ControlLogix Chassis that provides a ControlNet Network through the Common Industrial Protocol (CIP) and a peer-to-peer network for enhanced functions. It has a redundant configuration type and communicates at a rate of 5Mbps over a maximum of 99 nodes. The 1756-CN2R has a maximum of 100 Logix communication connections. It has a draw current of 1300mA at 5.1V DC and one of 3mA at 24V DC and it dissipates 6.6W heat at 22.5 BTU/hr. It has 30V DC isolation voltage with basic insulation tested at 500V for a minute between the ControlNet and the system. The 1756-CN2R has double ControlNet BNC, a ControlNet RJ45, and a single USB 1.1 port for connection and communication with other devices. It comes in an open enclosure type and is designated at the T4 IEC temperature code and at the T4A North American Temperature code. The 1756-CN2R’s operational temperature ranges between 0 and 60 °C (32 and 140 °F) at 5-95% non-condensing relative humidity, and it has an operational shock rate of 30G and a maximum vibration of 2G at 10-500Hz.

Allen Bradley is one of Rockwell Automation’s strategic flagship brands dedicated to industrial automation. Allen Bradley produces and sells a number of automation solutions including PLC peripheral modules and scanners that change the status of industrial automation. Bridge the gap between supply and demand by pumping up your productivity with streamlined and automated manufacturing processes made easy through the installation of Allen-Bradley products, such as this 1756-CN2R/B series ControlLogix module. The interface module works with ControlNet and features 100 connections, for use in the local chassis of a ControlLogix controller, or in a chassis linked to it across a network. In collaboration with ControlNet, Allen Bradley delivers innovation with the 1756-CN2R series control module. The ControlNet is a real-time control network that provides high-speed transport of both time-critical I/O and interlocking data and messaging data, including upload/download of programming and configuration data on a single physical media link. The ControlNet network’s highly efficient data transfer capability significantly enhances I/O performance and peer-to-peer communication in any system or application where it is used. With a full range of analog, digital, diagnostic digital, motion control, and specialty I/O, the 1756 Allen Bradley ControlLogix I/O and PLC 5 chassis based, control module meets all of your application requirements. The Allen-Bradley 1756-CN2R control bridge module features 100 Logix connections with a communication rate of 5 Mbps and 99 nodes for support of redundant media. The CN2R model bridge module allows you to upload EDS files directly from the unit, within the RSLinx software. The Allen-Bradley 1756-CN2R module requires RSLinx software versions 2.55 or later for optimum performance. This control module features a USB port allowing for increased functionality and connectivity to all your systems. The bridge control module features notification lights on the front interface, allowing you to easily monitor and check the progress of all of your projects. The Allen-Bradley 1756-CN2R control module features a mounting chassis allowing for easy connection to your industrial system. The USB capability allows you to easily hook up and connect to PanelView Plus, PowerFlex 700s, and PLC -540C units for seamless collaboration. The 1756-CN2R series output module from the Allen-Bradley manufacturer features compatibility with a wide variety of accessories to help you get the job done. Accessories included with the 1756-CN2R Allen-Bradley output module include an easy to search user guide manual direct from the manufacturer. This manual is divided into categories and allows for easy checking of the product description, accessories and installation; you can return to the manual for any troubleshooting questions while in use. Allen-Bradley is an internationally recognized manufacturer of the Rockwell Automation company known for producing and selling high quality products and their dedication to providing solutions for industrial automation. Allen-Bradley in conjunction with ControlNet deliver innovation with the 1756-CN2R series control module with ControlLogix controller capabilities for industrial use and redundant media. With copyright ControlNet operation, and a wide description of functionality, the 1756-CN2R is a unique device for use with your industrial system interface.
