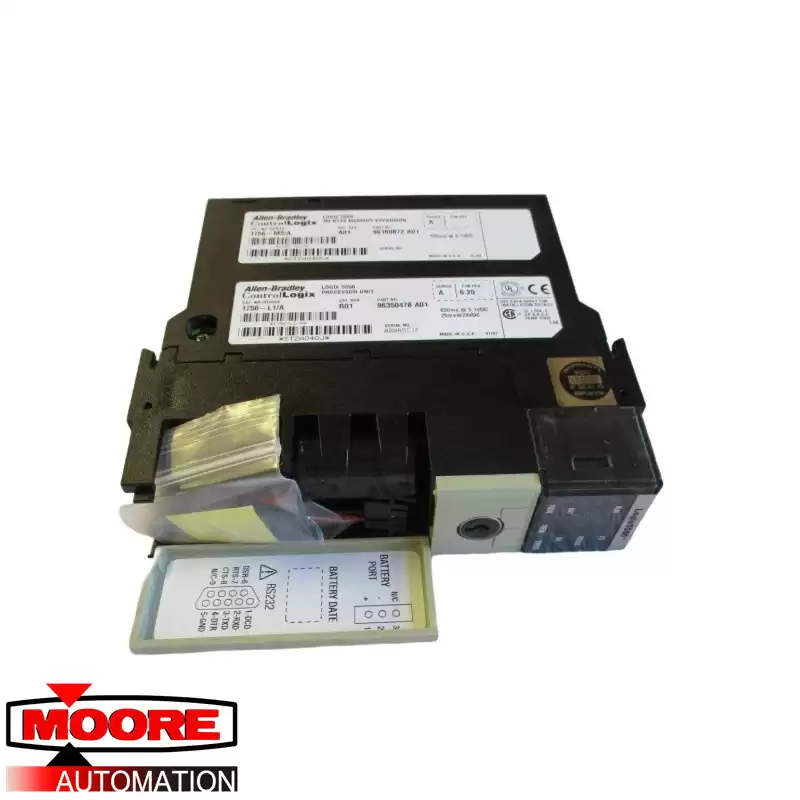

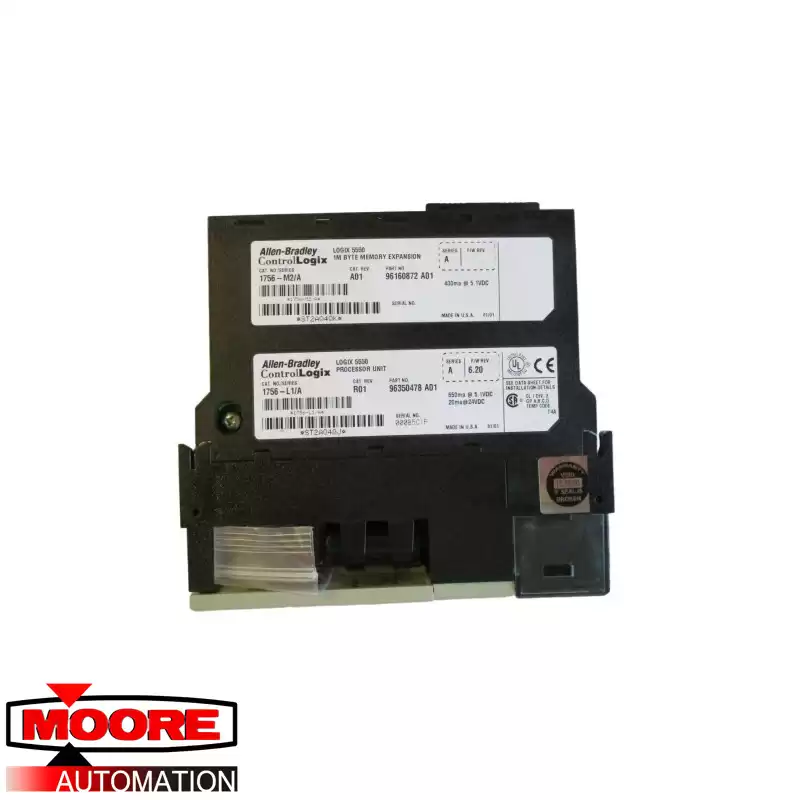

The PLC 1756-L1M2 is a ControlLogix 5550 controller. It has a 1 MB user available memory but it does not have a nonvolatile memory. It has the capacity to control local and remote I/O across DeviceNet, ControlNet, and Universal Remote I/O networks. It has an open-style enclosure type rating and weighs 0.35 g or 12.5 oz. This controller has Group 1, Class A emissions.
The 1756-L1M2 has an average power dissipation of 4.8 W and an average thermal dissipation of 16.4 BTU/hr. Its average backplane current at 5V DC is 1.05 A and 0.02 A at 24V DC.
The operating temperature of this controller ranges from 0 to 60 Degrees Celsius, while its storage temperature ranges from -40 to 85 Degrees Celsius. It also has a noncondensing relative humidity between 5% to 95%.
