AB | 1756-L64 | (IN STOCK& READY FOR SHIP)

ControlLogix standard controller











Power Supply, Performance, 120W, 24 - 28VDC, 1-Phase




























AB | 1756-L64 | (IN STOCK& READY FOR SHIP)

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450


ATTENTION!

PAYMENT: T/T 100% IN ADVANCE

Lead Time : 3-5 Days

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.


Brand Name                 AB


Product reference       1756-L64

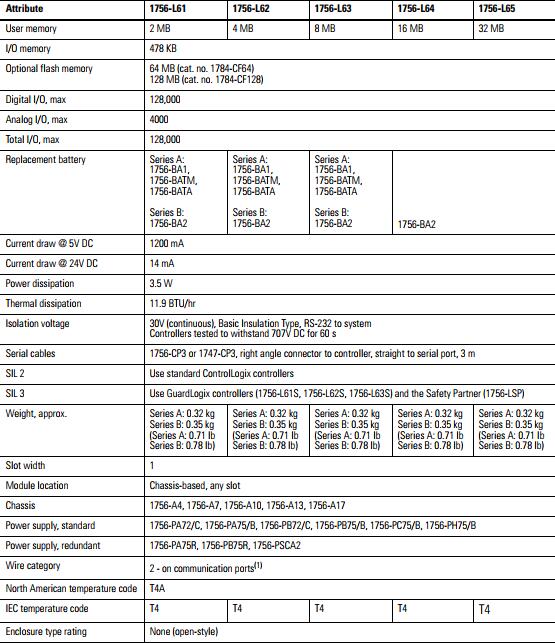

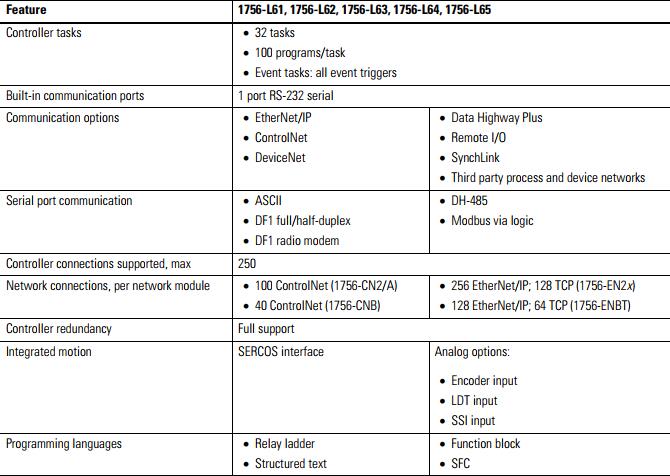

The Allen-Bradley 1765-L64 ControlLogix standard controller comes with a user memory of 16 MB for data as well as a 478 KB I/O memory. It also has an optional CompactFlash memory card that is used as a second non-volatile memory for the 1756-L64 controller. The 128 MB 1764-CF128 model memory is the only memory card which is compatible with and works with the Allen-Bradley 1756-L64. The 1756-L64 controller has the capability to handling up to a maximum of 250 controller connections. The scan time for any project loaded in the 1756-L64 controller may be slower than that of the 1756-L6x controllers when loaded with the same project. Additionally, it has the full support for the redundancy of the controller. Like the Allen-Bradley 1756-L64 ControlLogix controller, the ControlLogix 5560 controllers have 3 different controller tasks available including 32 tasks, 100 programs/task, and the event tasks and all the event triggers.

This controller comes with serial port communications options including a DF1 radio modem, DH-485, DF1 full/half-duplex, Modbus via logic and an ASCII option. The 1756-L64 controller supports different communication options, especially the Data Highway Plus, Remote I/O, EtherNet/IP, ControlNet, DeviceNet, SynchLink, and 3rd party process as well as different device networks. The Allen-Bradley 1756-L64 controller comes with about 128,000 maximum digital I/O; this is same as the maximum total I/O. The 1756-L64 controller has 4000 maximum analog I/O. Some of the only ControlLogix chassis which are compatible with the controller are the 1756-A10, 1756-A4, 1756-A7, 1756-A17, and the 1756-A13 chassis. The controller also has a replaceable battery, although it should be replaced using the 1756-BA2 lithium battery whenever it is wanted. It can withstand 2 g of vibration at 10 to 500 Hertz, 50 g of non-operating shock, and 30 g of operating shock.

The ControlLogix controller provides a scalable controller solution that is capable of addressing a large amount of I/O points. The ControlLogix controller can be placed into any slot of a ControlLogix I/O chassis and multiple controllers can be installed in the same chassis. Multiple controllers in the same chassis communicate with each other over the backplane (just as controllers can communicate over networks) but operate independently. ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, as well as over I/O links. ControlLogix controllers can communicate over EtherNet/IP, ControlNet, DeviceNet, DH+, Remote I/O, and RS-232-C (DF1/DH-485 protocol) networks and many third party process and device networks. To provide communication for a ControlLogix controller, install the appropriate communication interface module into the chassis.





A GuardLogix controller is a ControlLogix controller that also provides safety control. The GuardLogix system is a dual controller solution — you must use a 1756-L6xS primary controller and a 1756-LSP safety partner to achieve SIL 3/CAT. 4. A major benefit of this system is that it’s still a single project, safety and standard together. The safety partner controller is a part of the system, is automatically configured, and requires no user setup. During development, safety and standard have the same rules, multiple programmers, online editing, and forcing are all allowed. Once the project is tested and ready for final validation, you set the Safety Task to a SIL 3 integrity level, which is then enforced by the GuardLogix controller. When safety memory is locked and protected, the safety logic can't be modified and all safety functions operate with SIL 3 integrity. On the standard side of the GuardLogix controller, all functions operate like a regular Logix controller. Thus online editing, forcing, and other activities are all allowed. With this level of integration, safety memory can be read by standard logic and external devices, like HMIs or other controllers, eliminating the need to condition safety memory for use elsewhere. The result is easy system-wide integration and the ability to display safety status on displays or marquees. Use Guard I/O modules for field device connectivity on Ethernet or DeviceNet networks, and for safety interlocking between GuardLogix controllers use Ethernet or ControlNet networks. Multiple GuardLogix controllers can share safety data for zone to zone interlocking, or a single GuardLogix controller can use remote distributed safety I/O between different cells/areas.



Addtional similar product

AB 1791-16BC
AB 1756SC-IF8H
AB 1756-L55M12
AB 1756-IH16I
AB 1756-IF6CIS
AB 1756-DMA31
AB 1756-SIM
AB 1756-OV16E
AB 1756-OF4
AB 1756-L62S
AB 1756-L1M2
AB 1756-IV32
AB 1756-M16SE
AB 1756-L62
AB 1756-OA8E
AB 1756-M03SE
AB 1756-L72S
AB 1756-L63XT
AB 1756-L61S
AB 1756-L61
AB 1756-IT6I
AB 1756-EN2F
AB 1756-CNBR
AB 1757-BEM
AB 1756-OF8H
AB 1756-IF8H
AB 1757-SRC3
AB 1756-RIO
AB 1756-L55M14
AB 1756-L55M13
AB 1756-2WS
AB 1756-IB16D
AB 1756-OB16S
AB 1756-LSC8XIB8I
AB 1756HP-GPS
AB 1756-EWEB
AB 1756-DMD30
AB 1756-M08SE
AB 1756-IA32










If you have any question pls do not hesitate to contact us.We can supply all kind of the

automaiton parts,if you want to purchase

parts pls send the parts model to my mail, I will prompt reply you asa I receive the mail.Hope anyone enquire from us.


 Waiting for your inquiry.
