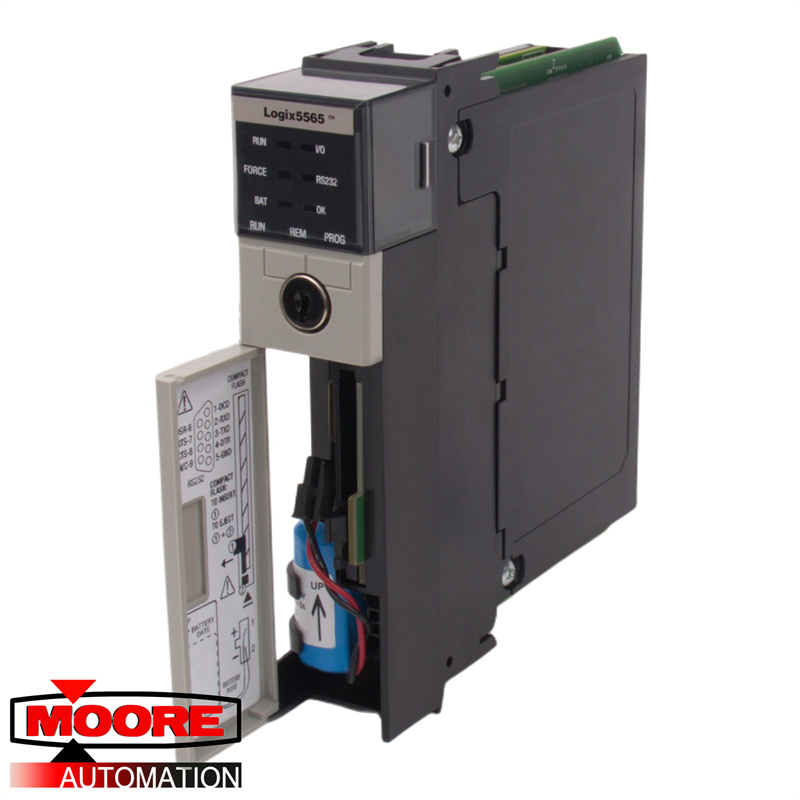

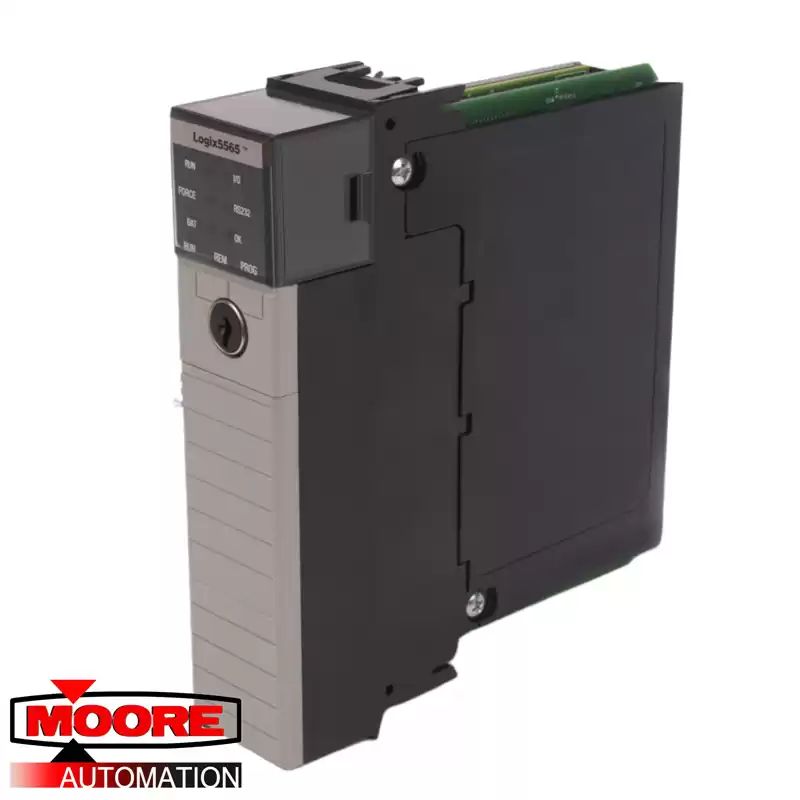

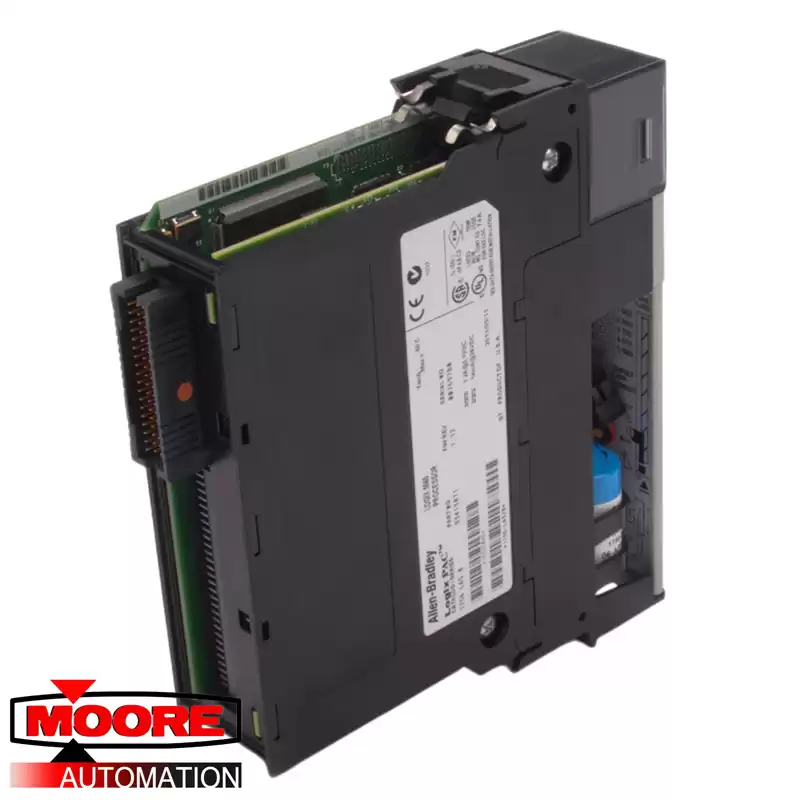

The PLC 1756-L65 is a Series B ControlLogix controller. It has a built-in RS-232 serial port available, as well as a user memory for data and logic of 32 MB and an I/O memory of 478 kb. You can also install an optional nonvolatile memory storage with this controller. However, what can be installed is only the 128 MB CompactFlash 1756-CF128 memory card. It also has a battery that can be replaced but only when needed. The battery compatible with this controller is only the 1756-BA2 lithium battery. The compatible ControlLogix chassis with this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17.
The 1756-L65 controller has an operating temperature that ranges from 0 to 60 Degrees Celsius, as well as a storage temperature ranging from -40 to 85 Degrees Celsius. It also has a maximum surrounding air temperature of 60 Degrees Celsius and a noncondensing relative humidity range of 5% to 95%. The controller has a vibration of 2 g at 10 to 500 Hz, an operating shock of 30 g, and a non-operating shock of 50 g.
