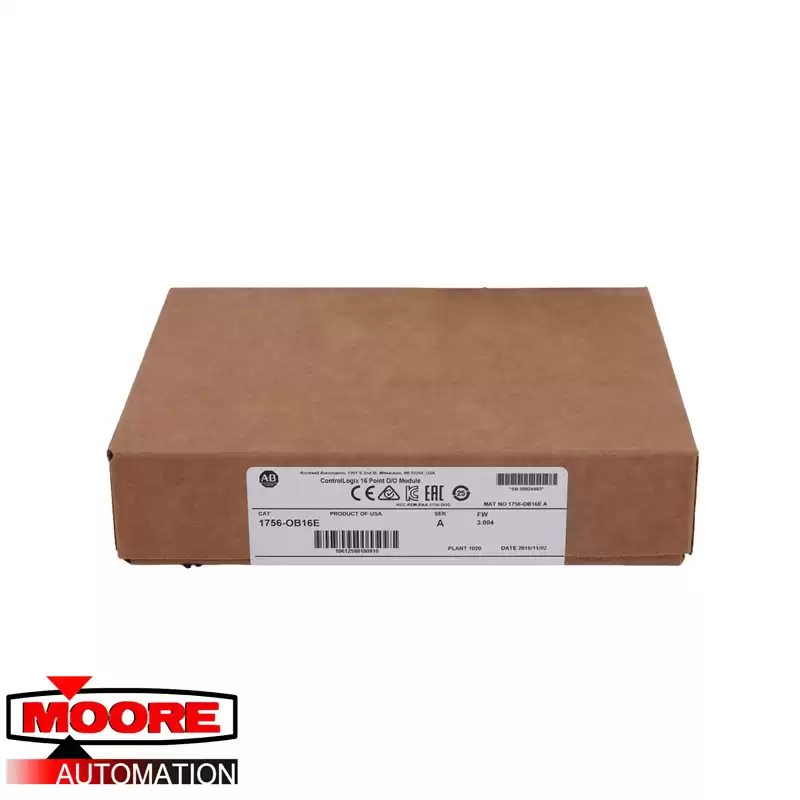

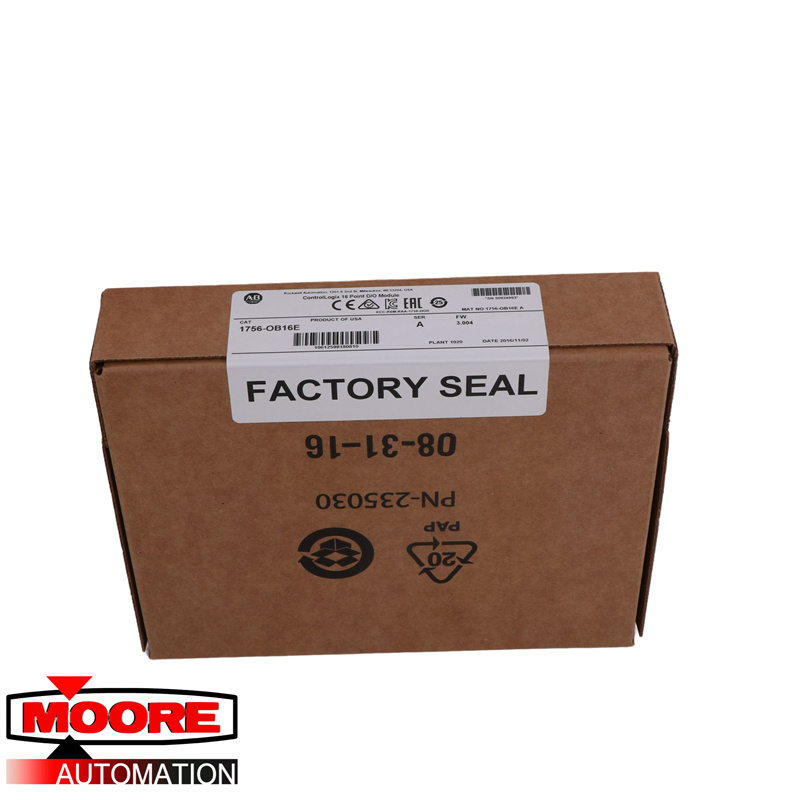

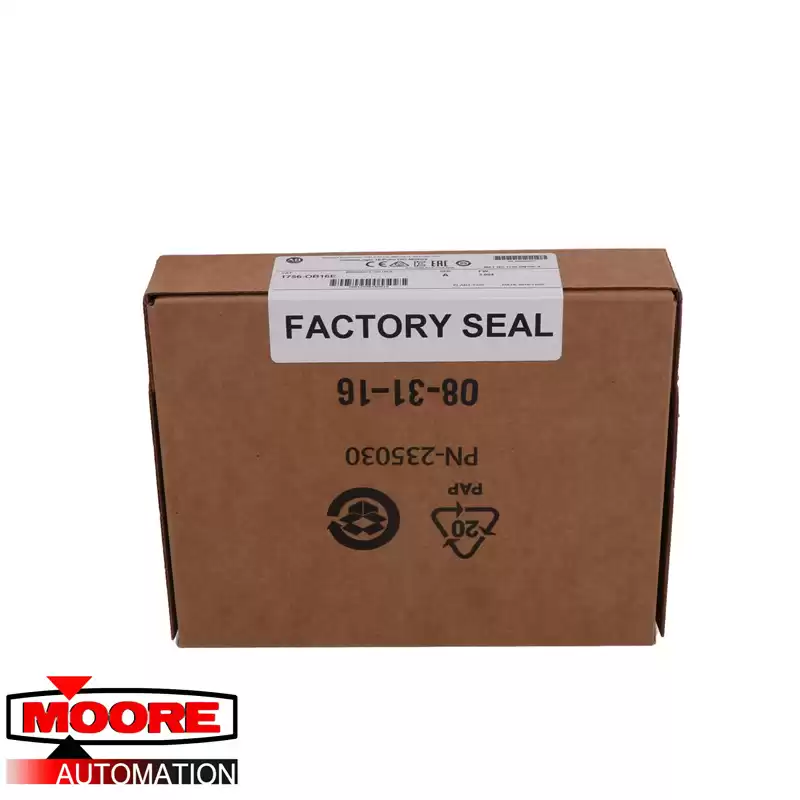

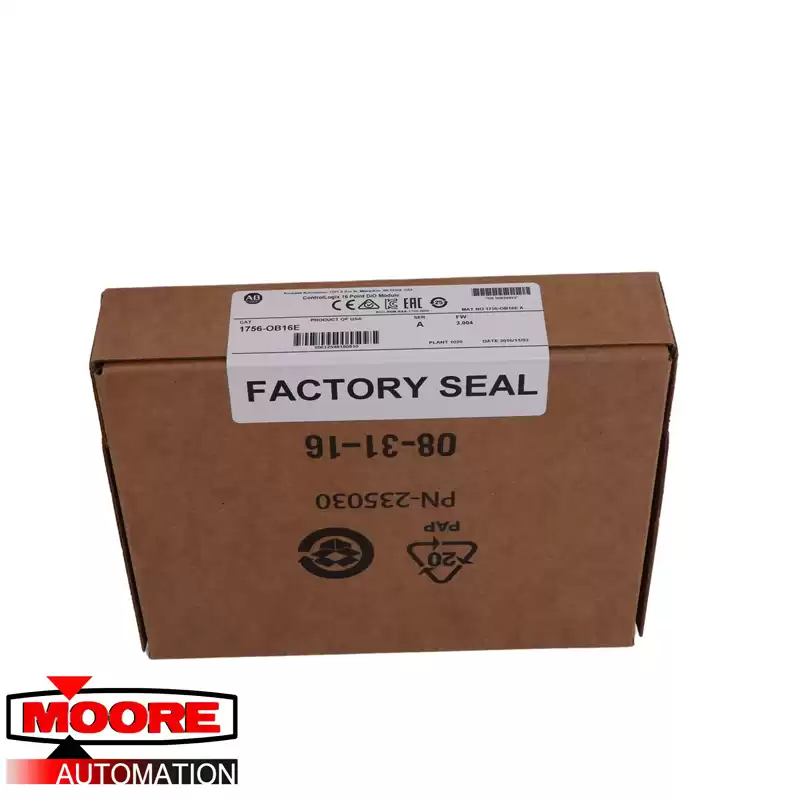

PLC 1756-OB16E ControlLogix Digital DC Output module, Number of Outputs: 16 electronically fused outputs (8 points/group); Voltage category: 12/24V DC source; Operating voltage range: 10-31.2V DC; Output delay, off to on: 1 ms; Output delay, on to off: 1 ms; Current draw @ 5.1V: 250 mA; Current draw @ 24V: 2 mA; Current per point, max: 1.0 A @ 60 °C; Current per module, max: 8 A @ 60 °C; Isolation voltage, Max.: 250V continuous between groups; Power dissipation, max: 4.1 W @ 60 °C.
PLC 1756-OB16E ControlLogix DC Output modules are output modules that provide ON/OFF detection and actuation. Each 1756-OB16E module maintains specific identification information that separates it from all other modules. The 1756-OB16E module mounts in a ControlLogixchassis and uses a Removable Terminal Block (RTB): 1756-TBCH or 1756-TBS6H, or an Interface Module (IFM) to connect all field-side wiring.
